REMOVAL

Remove the engine cover.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter to Turbocharger Clamp (G1964846)/ Removal and Installation

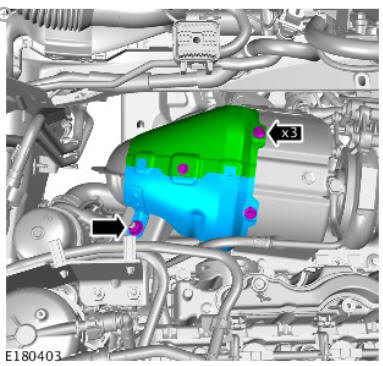

  • Remove the heat shield.

Torque: 10 Nm

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter to Turbocharger Clamp (G1964846)/ Removal and Installation

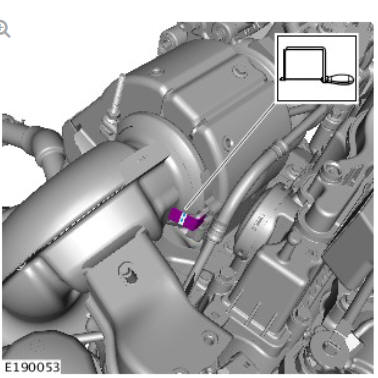

Using suitable cutting/grinding equipment remove the clamp weld at the points illustrated

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter to Turbocharger Clamp (G1964846)/ Removal and Installation

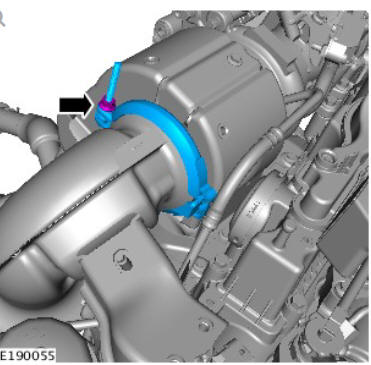

  • Remove the clamp.

Torque: 10 Nm

INSTALLATION

To install reverse the removal procedure.

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Component Location (G1881828) / Description and Operation

COMPONENT LOCATION - SHEET 1 OF 3 - DIESEL PARTICULATE FILTER (DPF)

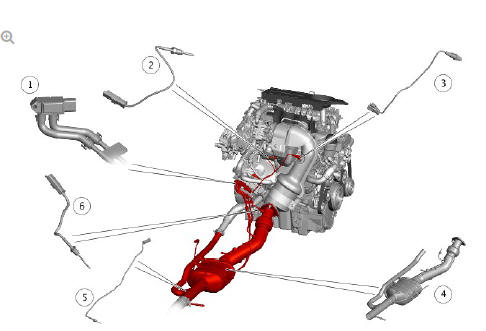

COMPONENT LOCATION - SHEET 1 OF 3 - DIESEL PARTICULATE FILTER (DPF)

  1. Differential pressure sensor
  2. Pre-catalytic converter exhaust gas temperature sensor
  3. Heated Oxygen Sensor (HO2S)
  4. Diesel Particulate Filter (DPF)
  5. Post-Diesel Particulate Filter (DPF) exhaust gas temperature sensor
  6. Pre-Diesel Particulate Filter (DPF) exhaust gas temperature sensor

COMPONENT LOCATION - SHEET 2 OF 3 - DIFFERENTIAL PRESSURE SENSOR

COMPONENT LOCATION - SHEET 2 OF 3 - DIFFERENTIAL PRESSURE SENSOR

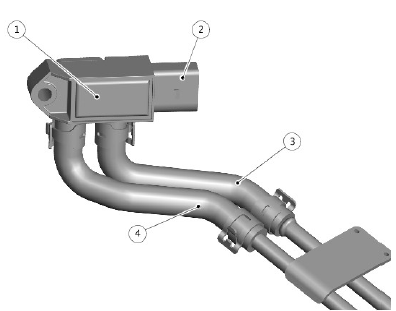

  1. Differential pressure sensor
  2. Electrical connection
  3. Differential pressure sensor pipe - low
  4. Differential pressure sensor pipe - high

COMPONENT LOCATION - SHEET 3 OF 3 - EXHAUST GAS TEMPERATURE SENSOR

COMPONENT LOCATION - SHEET 3 OF 3 - EXHAUST GAS TEMPERATURE SENSOR

  1. Exhaust gas temperature sensor
  2. Electrical connection
    next pageExhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / InstallationExhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - System Operation and Component Descriptionnext page
