Land Rover Discovery: Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) /
Installation
Installation
CAUTIONS:
- Make sure the anti-seize compound does not contact the
catalyst monitor sensor tip.
- If accidentally dropped or knocked install a new sensor.
.jpg)

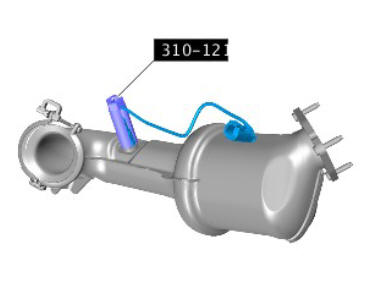

Special Tool(s): 310-121
Torque: 48 Nm

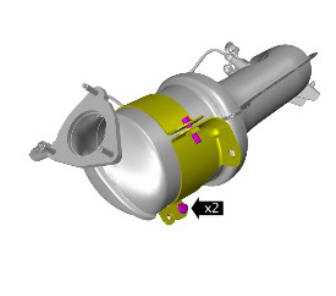

CAUTION:
Only tighten the bolts finger tight at this stage
.jpg)

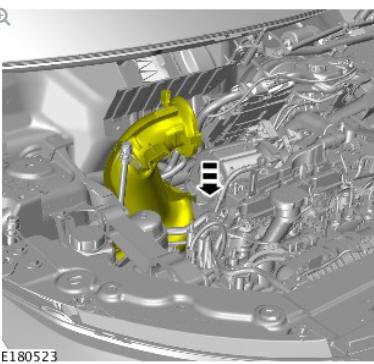

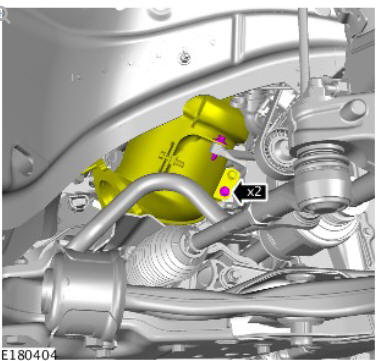

CAUTIONS:
- Take extra care not to damage the component.
- Take extra care not to damage the surrounding
components.
.jpg)
CAUTION:
Only tighten the bolts finger tight at this stage
.jpg)

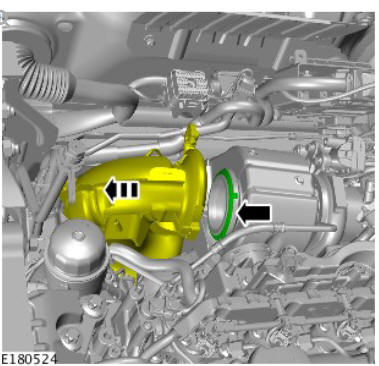

NOTE:
Install a new gasket.
.jpg)
Renew Part: Catalytic converter to turbocharger gasket.

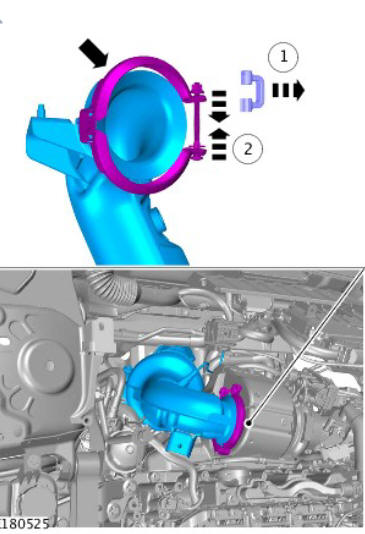

NOTE:
Install a new clamp.
.jpg)
Renew Part: Catalytic converter to turbocharger clamp.

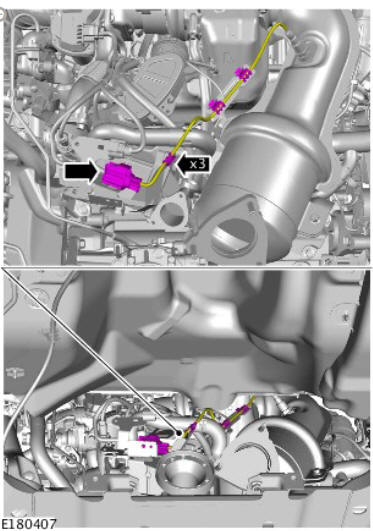

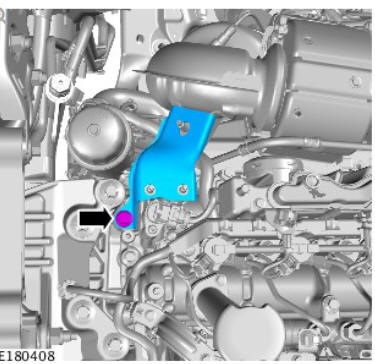

Torque: 10 Nm
.jpg)

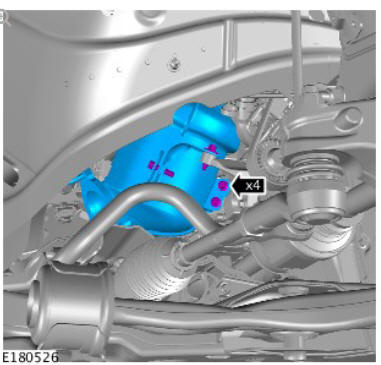

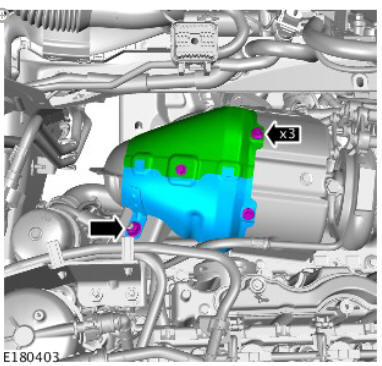

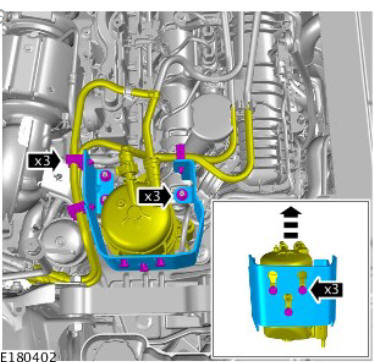

Torque: 24 Nm
.jpg)
Torque: 24 Nm
.jpg)
Torque: 24 Nm
.jpg)
Torque: 24 Nm
.jpg)
NOTE:
Install a new gasket.

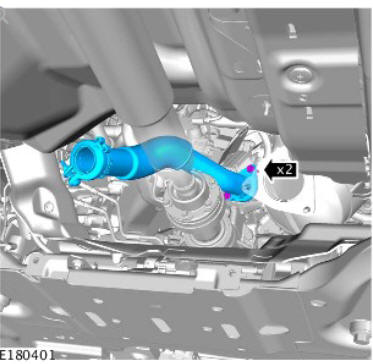

.jpg)
Renew Part: Low pressure exhaust gas recirculation cooler gasket.
Torque: 24 Nm
Install the Diesel Particulate Filter (DPF).
Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
Install the front subframe.
Refer to: Front Subframe (502-00 Uni-Body, Subframe and
Mounting System, Removal and Installation).
Install the engine acoustic cover.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
Install the right front fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels,
Removal and Installation).
