Land Rover Discovery: Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

SPECIAL TOOL(S)

SPECIAL TOOL(S)

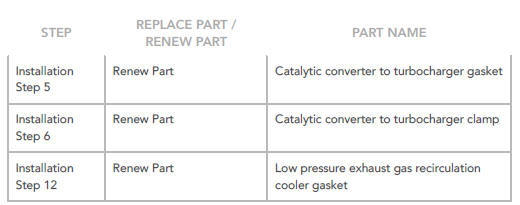

PART(S)

PART(S)

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the engine acoustic cover.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Remove the right front fender splash shield. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

Remove the front subframe.

Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Remove the Diesel Particulate Filter (DPF).

Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

NOTE:

Remove and discard the gasket.

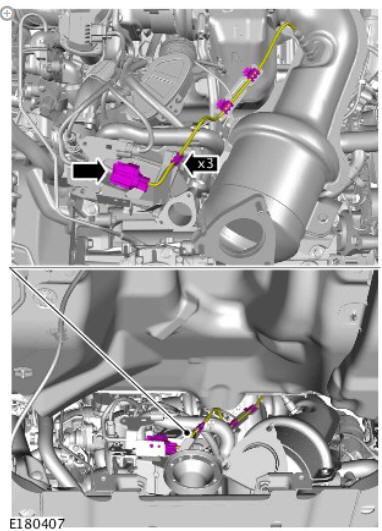

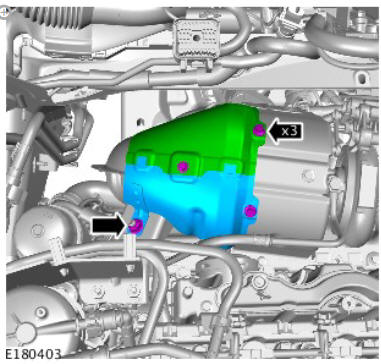

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

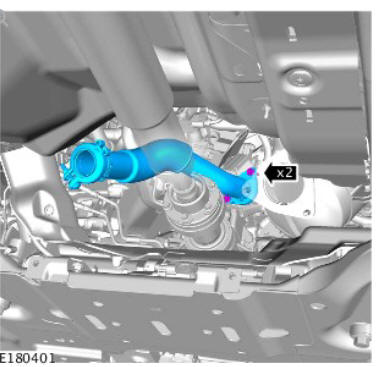

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

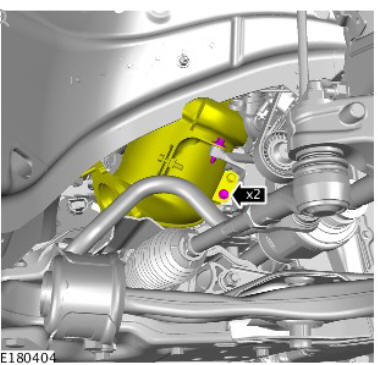

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

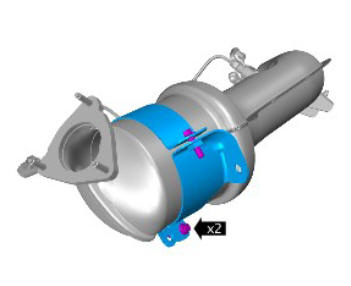

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

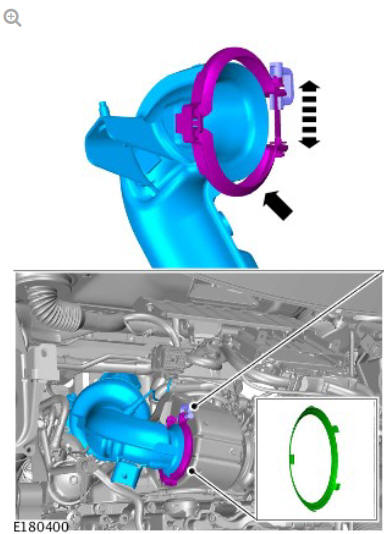

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

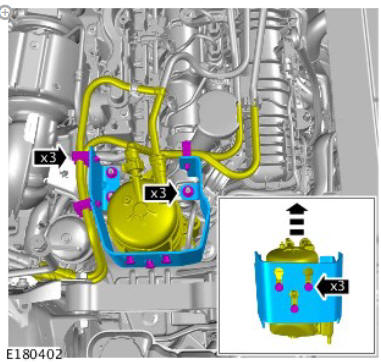

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

NOTES:

  • Remove and discard the gasket.
  • Discard the clamp.

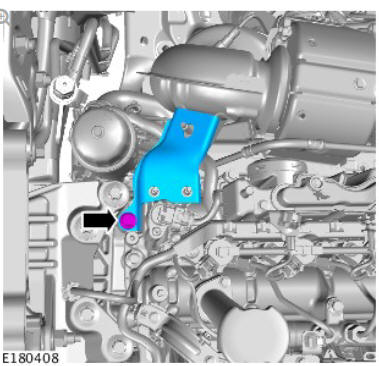

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

NOTE:

Do not disassemble further if the component is removed for access only.

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

Exhaust - Ingenium i4 2.0l Diesel Catalytic Converter (G1880489) / Removal

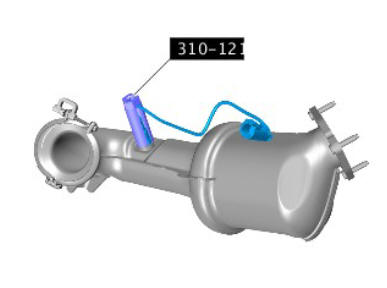

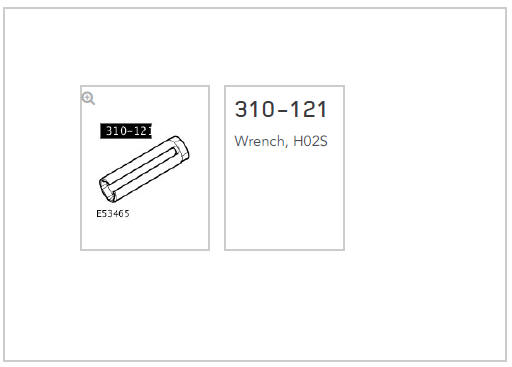

Special Tool(s): 310-121
