Land Rover Discovery: External Controls Transmission Control Switch

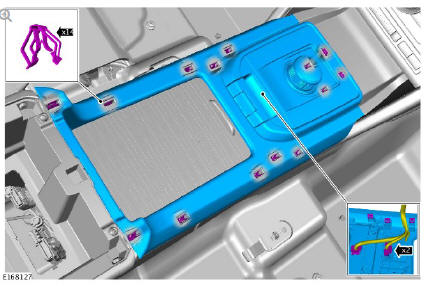

External Controls Transmission Control Switch (G1816637) Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

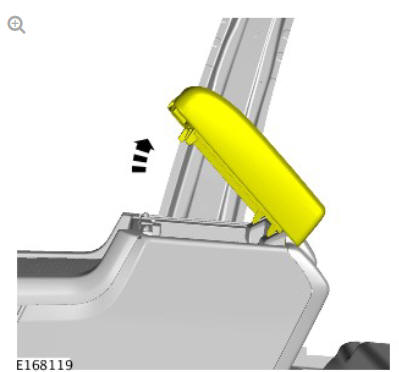

External Controls Transmission Control Switch (G1816637) Removal and Installation

External Controls Transmission Control Switch (G1816637) Removal and Installation

External Controls Transmission Control Switch (G1816637) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.

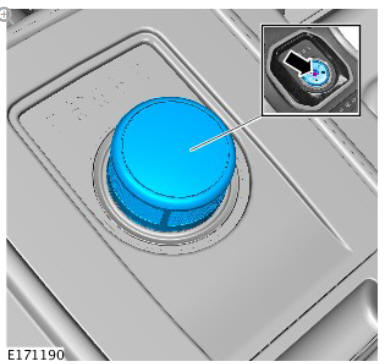

External Controls Transmission Control Switch Knob (G1816638) Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

CAUTIONS:

  • Do not start the engine.
  • Care must be taken to avoid damaging the surrounding components.

External Controls Transmission Control Switch Knob (G1816638) Removal and Installation

INSTALLATION

CAUTION:

Make sure that a new component is installed.

NOTE:

Make sure to install the TCS plastic carrier to the TCS knob.

To install, reverse the removal procedure.
