Land Rover Discovery: Exterior Lighting Front Fog Lamp Adjustment

Land Rover Discovery (2009–2016) Service Manual / Electrical / Lighting / Fog Lamps / Exterior Lighting Front Fog Lamp Adjustment

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Left illustration shown, Right is similar.

NOTE:

The fog lamp beam should be set at 2% below the horizontal and parallel.

Check the fog lamp beam alignment.

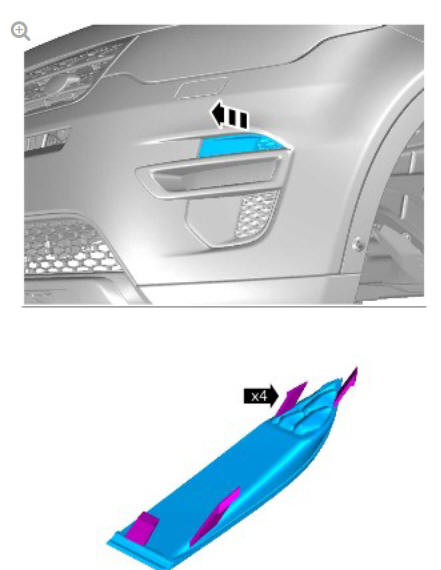

Align the beam setting equipment to one fog lamp.

Exterior Lighting Front Fog Lamp Adjustment

Exterior Lighting Front Fog Lamp Adjustment

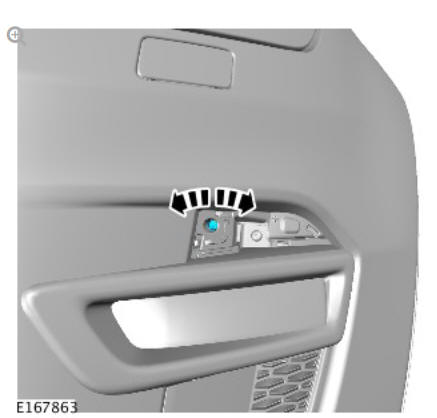

Adjust the fog lamp.

To adjust the second fog lamp, repeat the above procedure.
