Land Rover Discovery: Front Armature (G1780370) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Bumpers / Front Armature (G1780370) / Removal and Installation

Bumpers specifications

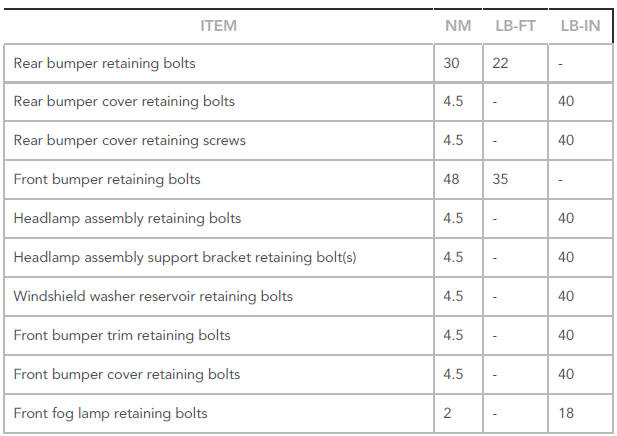

Torque Specifications

Torque Specifications

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Front Bumper Cover (501-19, Removal and Installation).

NOTE:

Repeat the step for the other side.

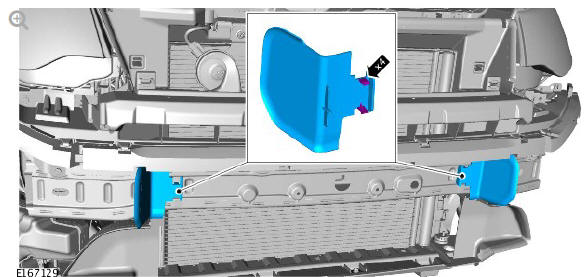

Front armature (G1780370) removal and installation

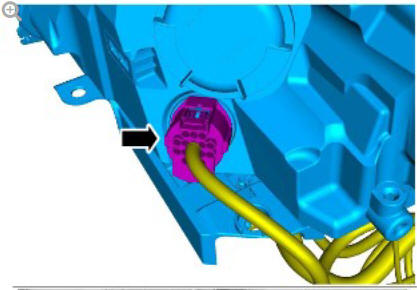

Front armature (G1780370) removal and installation

Torque: 4 Nm

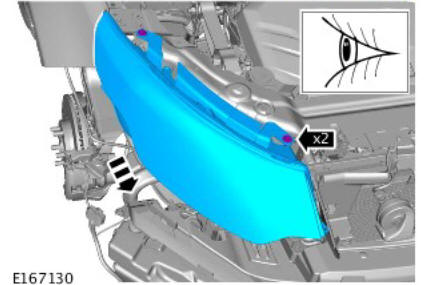

Front armature (G1780370) removal and installation

NOTE:

Repeat the step for the other side.

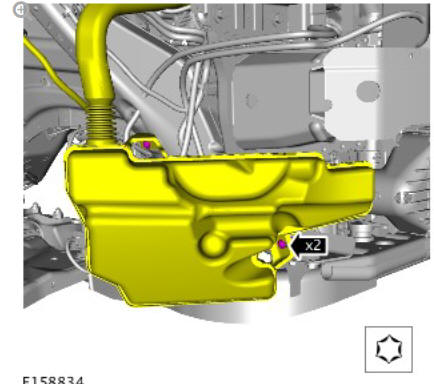

Front armature (G1780370) removal and installation

Torque: 4.5 Nm

Front armature (G1780370) removal and installation

Torque: 4.5 Nm

Front armature (G1780370) removal and installation

Torque: 4.5 Nm

NOTE:

Repeat the step for the other side.

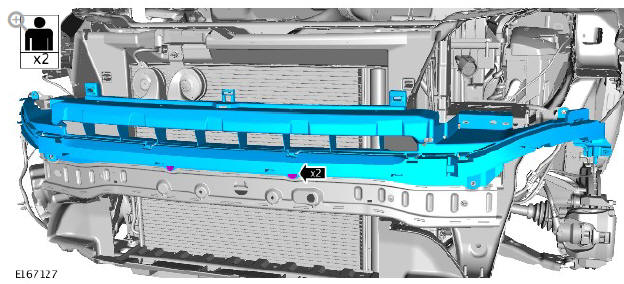

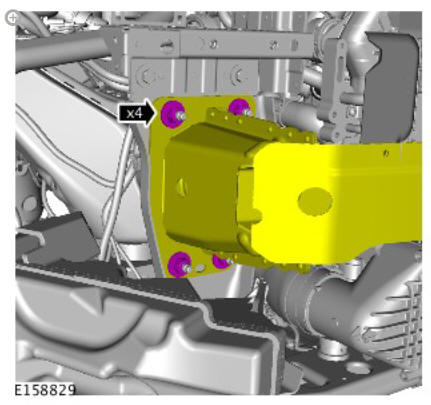

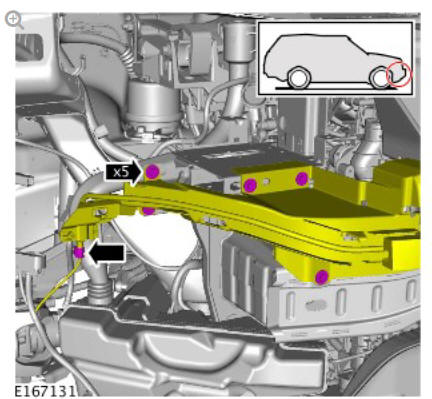

Front armature (G1780370) removal and installation

Torque: 48 Nm

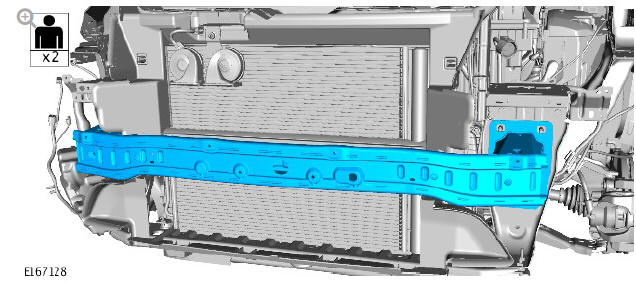

Front armature (G1780370) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
