Land Rover Discovery: Rear Bumper Cover (G1780371) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Bumpers / Rear Bumper Cover (G1780371) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

All vehicles

NOTE:

The procedure must be carried out on both sides.

  1. Refer to: Rear Lamp Assembly (417-01, Removal and Installation).

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Wheel and Tire (204-04, Removal and Installation).

NOTE:

The procedure must be carried out on both sides.

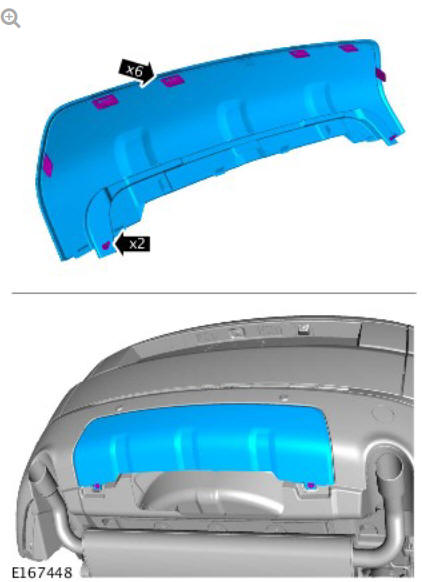

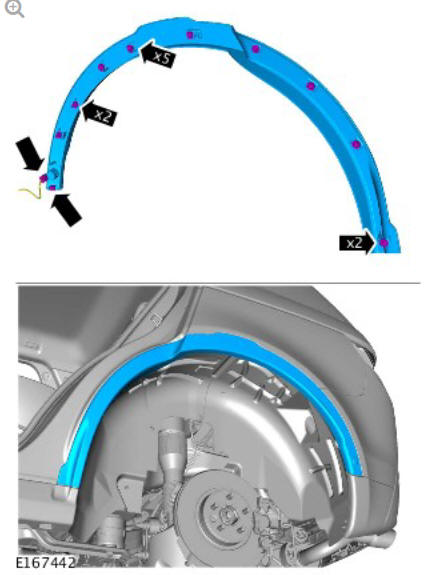

Rear bumper cover (G1780371) removal and installation

Vehicles with occasional rear seats

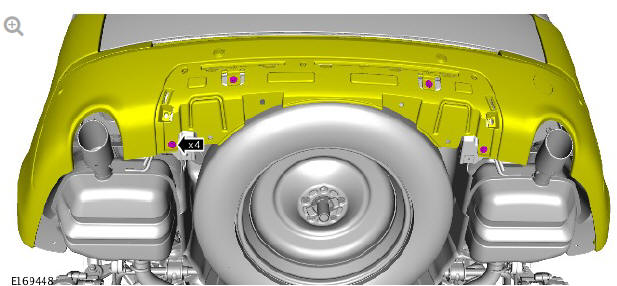

Rear bumper cover (G1780371) removal and installation

Torque: 4.5 Nm

Vehicles without occasional rear seats

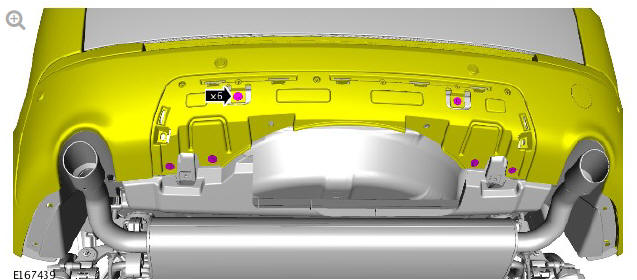

Rear bumper cover (G1780371) removal and installation

Torque: 4.5 Nm

All vehicles

CAUTION:

Take extra care not to damage the component.

NOTE:The step must be carried out on both sides.

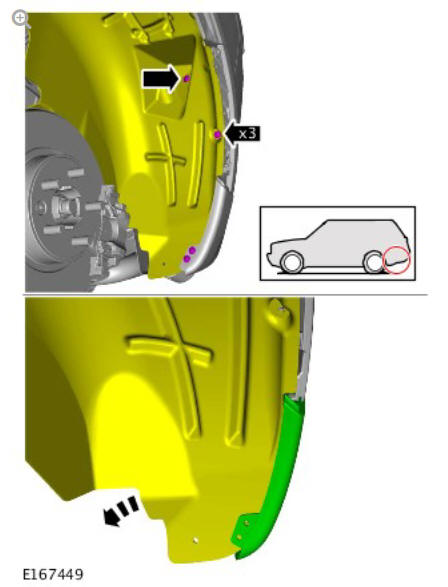

Rear bumper cover (G1780371) removal and installation

NOTE:

The step must be carried out on both sides.

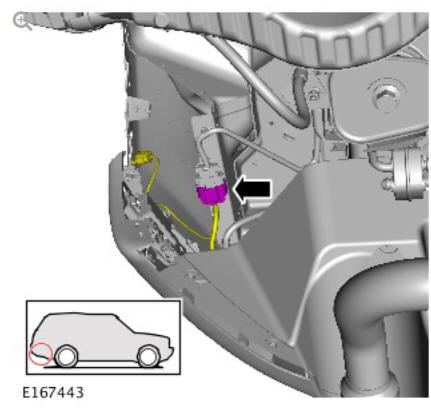

Rear bumper cover (G1780371) removal and installation

Rear bumper cover (G1780371) removal and installation

NOTE:

The step must be carried out on both sides.

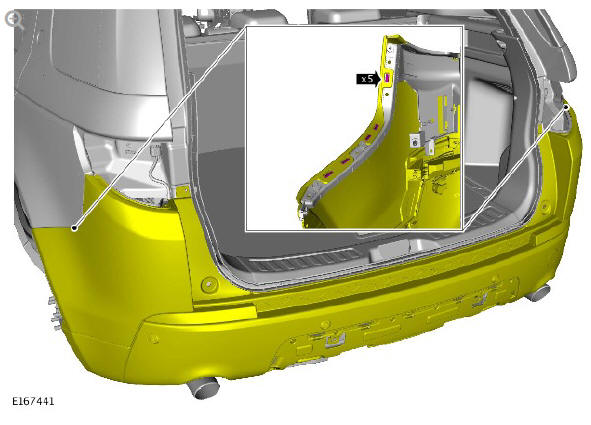

Rear bumper cover (G1780371) removal and installation

Torque: 4.5 Nm

NOTE:

The step must be carried out on both sides.

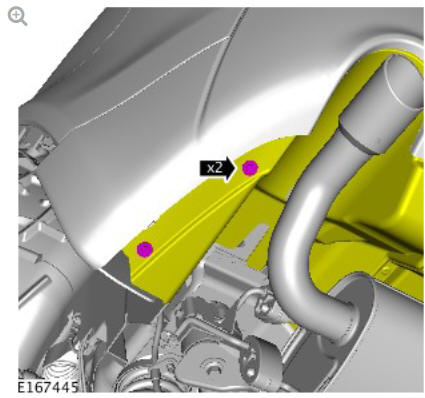

Rear bumper cover (G1780371) removal and installation

Torque: 4.5 Nm

CAUTION

Take extra care not to damage the edges of the component.

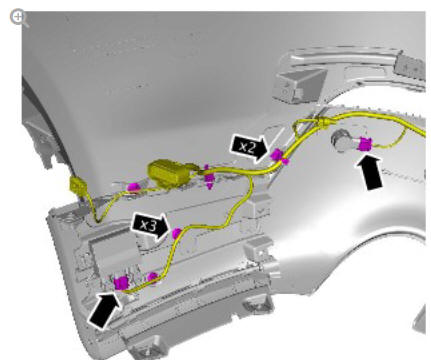

Rear bumper cover (G1780371) removal and installation

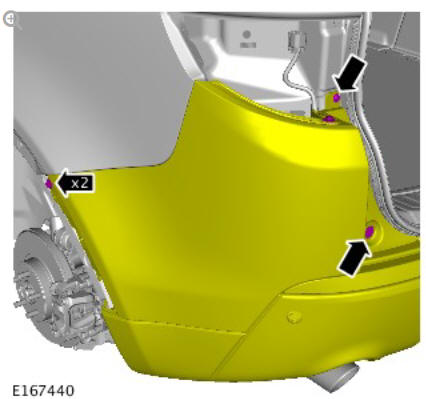

Rear bumper cover (G1780371) removal and installation

NOTES:

  • The step must be carried out on both sides.
  • Do not disassemble further if the component is removed for access only.

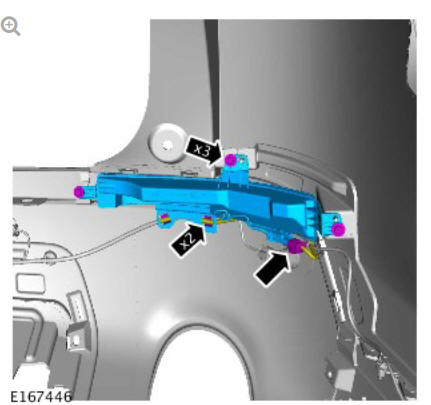

Rear bumper cover (G1780371) removal and installation

Torque: 4.5 Nm

NOTE:

The step must be carried out on both sides.

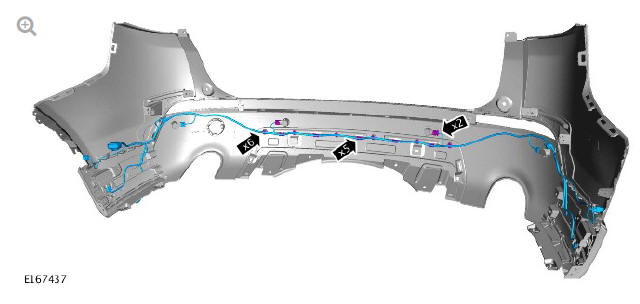

Rear bumper cover (G1780371) removal and installation

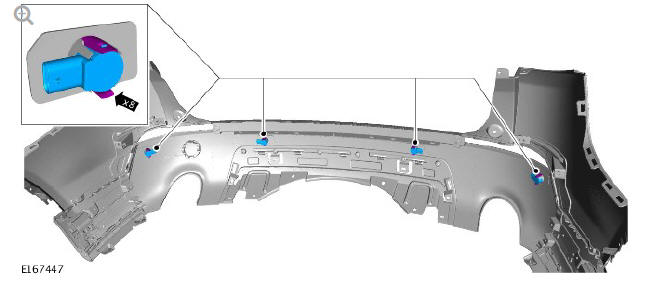

Rear bumper cover (G1780371) removal and installation

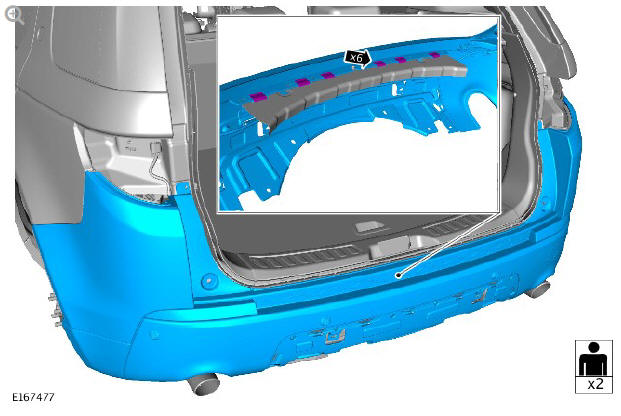

Rear bumper cover (G1780371) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
