Land Rover Discovery: Exterior Trim and Ornamentation Front Fender Trim Panel (G1785263) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Front Fender Trim Panel (G1785263) / Removal and Installation

REMOVAL

CAUTIONS:

  • Make sure to protect the paintwork.
  • LH illustration shown, RH is similar.

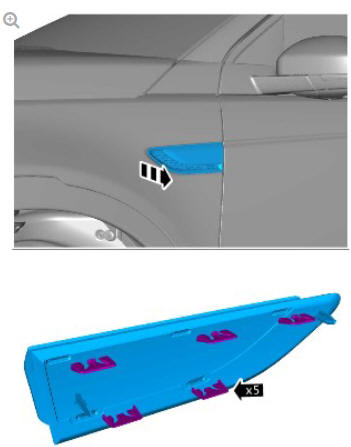

  • Using a suitable tool, release the trim panel.

NOTE:

Removal steps in this procedure may contain installation details.

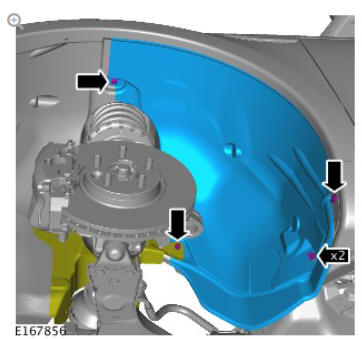

  1. Refer to: Wheel and Tire (204-04, Removal and Installation).

Exterior trim and ornamentation front fender trim panel (G1785263) removal and installation

Exterior trim and ornamentation front fender trim panel (G1785263) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.

Exterior trim and ornamentation hood badge (G1791771) removal and installation

REMOVAL

CAUTION:

Remove any excessive adhesive from the hood.

  1. Using a suitable tool or plastic spatula, remove the hood badge(s).

INSTALLATION

  1. Clean the area prior to installation of the hood badge.

CAUTION:

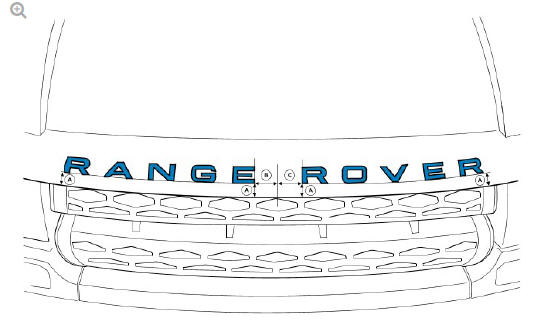

Using the centre of the grill as a starting point, install the hood badge to the dimensions shown.

Exterior trim and ornamentation hood badge (G1791771) removal and installation

  1. A - 25 mm / 0.9 inch
  2. B - 40 mm / 1.6 inch
  3. C - 50 mm / 1.9 inch
