Land Rover Discovery: Exterior Trim and Ornamentation Rear Spoiler  (G1791772) - Removal

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Rear Spoiler (G1791772) / Exterior Trim and Ornamentation Rear Spoiler  (G1791772) - Removal

Removal

CAUTIONS:

  • Make sure to protect the paintwork.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to: High Mounted Stoplamp (417-01, Removal and Installation).

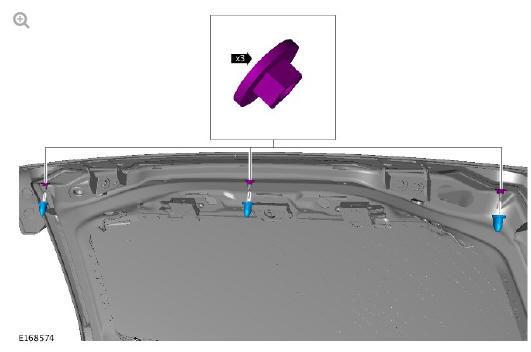

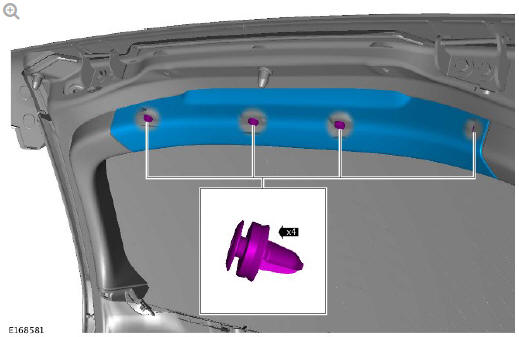

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Discard the retaining clips.

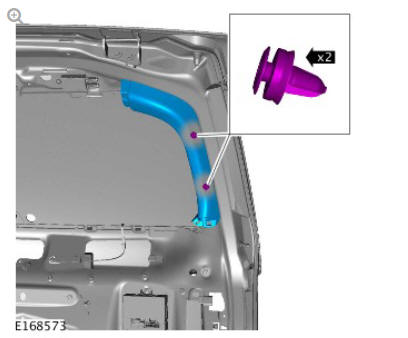

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Discard the retaining clips.

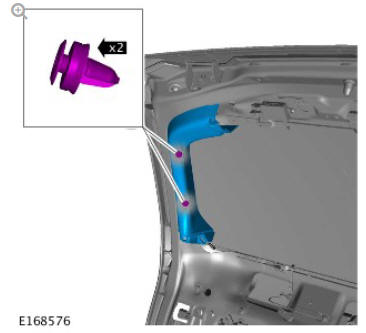

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Discard the retaining clips.

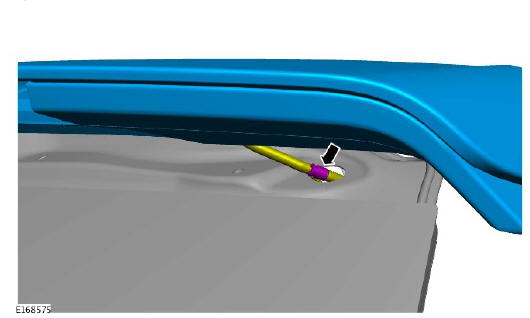

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

NOTE:

Position cloth to collect fluid spillage.

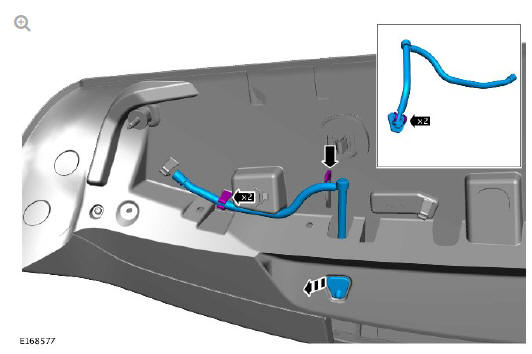

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

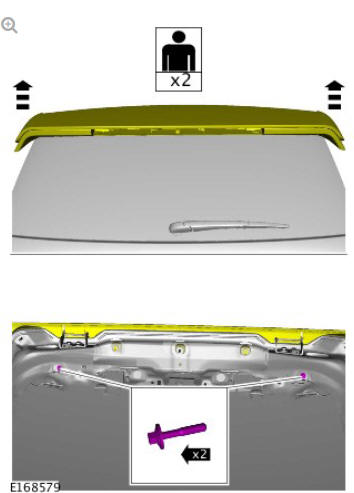

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

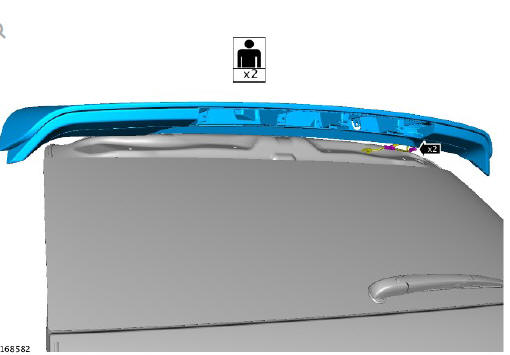

Exterior trim and ornamentation rear spoiler (G1791772) - Removal

    next pageExterior Trim and Ornamentation Rear Spoiler (G1791772)Exterior Trim and Ornamentation Rear Spoiler  (G1791772) - Installationnext page
