Land Rover Discovery: Exterior Trim and Ornamentation Rear Spoiler  (G1791772) - Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Rear Spoiler (G1791772) / Exterior Trim and Ornamentation Rear Spoiler  (G1791772) - Installation

Installation

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

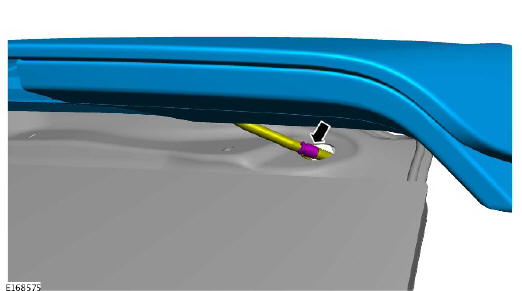

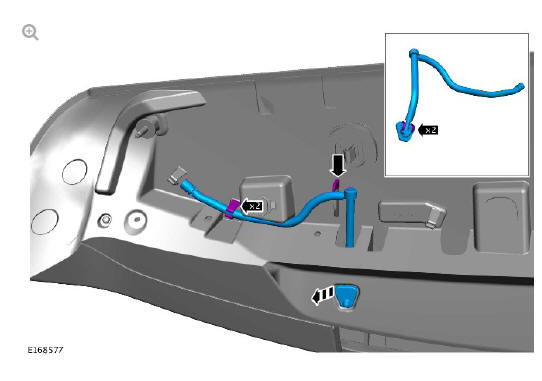

NOTE:

Position cloth to collect fluid spillage.

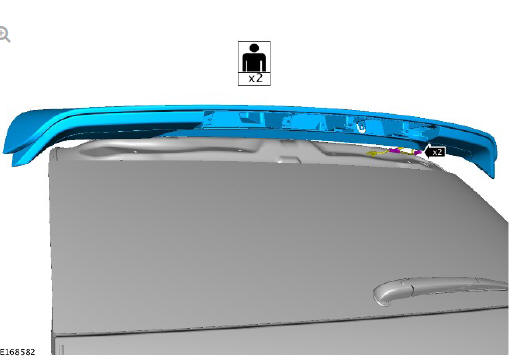

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

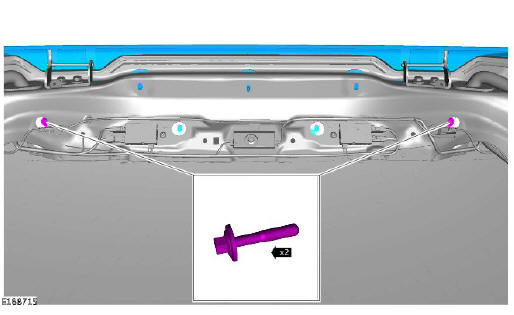

CAUTION:

Only tighten the bolts finger-tight at this stage.

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

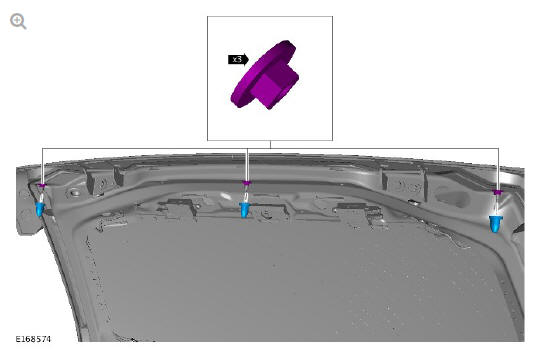

CAUTION:

Only tighten the nuts finger-tight at this stage.

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

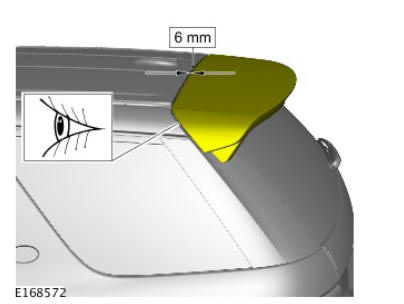

CAUTION:

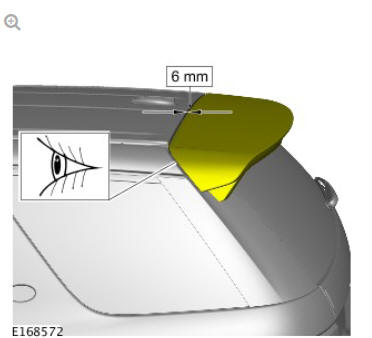

Make sure that the gap is even between the rear spoiler and the rear quarter panel moulding and the rear spoiler is flush with the roof.

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

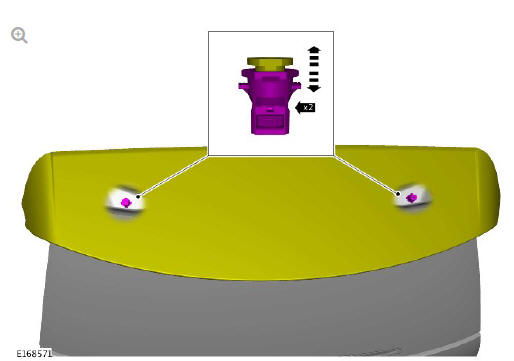

Adjust the rear spoiler by rotating the adjustment studs clockwise and counter clockwise as necessary.

CAUTION:

Make sure that the gap is even between the rear spoiler and the rear quarter panel moulding and the rear spoiler is flush with the roof

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

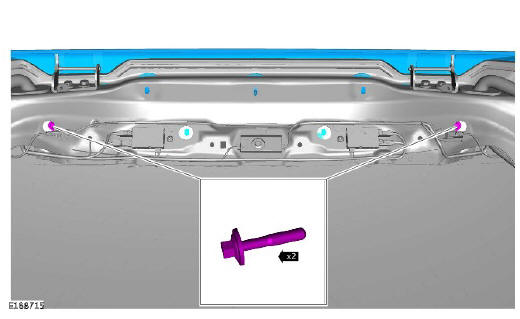

Torque: 3.2 Nm

Exterior trim and ornamentation rear spoiler (G1791772) - Installation

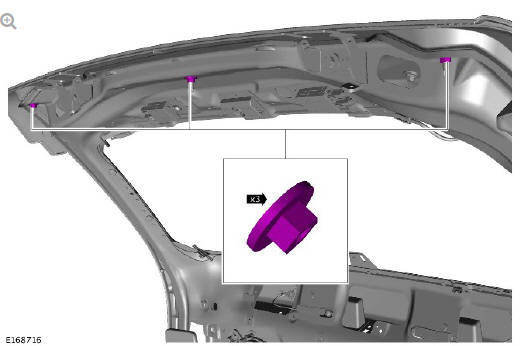

Torque: 10 Nm

To install, reverse the removal procedure.
