Land Rover Discovery: Exterior Trim and Ornamentation Tailgate Moulding (G1785266) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Tailgate Moulding (G1785266) / Removal and Installation

REMOVAL

CAUTIONS:

  • Make sure to protect the paintwork.
  • Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Removal steps in this procedure may contain installation details.

  1. Refer to: Parking Aid Camera (413-13, Removal and Installation).

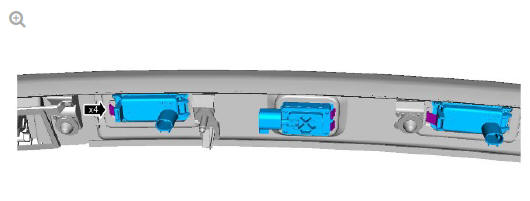

Exterior trim and ornamentation tailgate moulding (G1785266) removal and installation

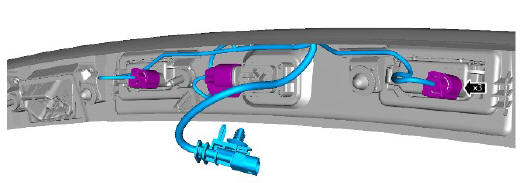

Exterior trim and ornamentation tailgate moulding (G1785266) removal and installation

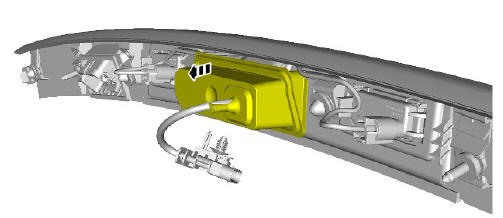

Exterior trim and ornamentation tailgate moulding (G1785266) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.

Exterior trim and ornamentation specifications

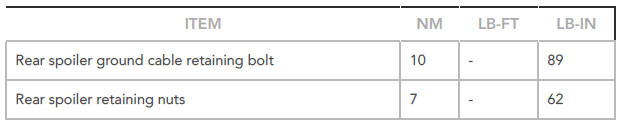

Torque Specifications

Torque Specifications
