REMOVAL

CAUTION:

Make sure to protect the paintwork.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

CAUTION:

Use a suitable trim tool.

NOTE:

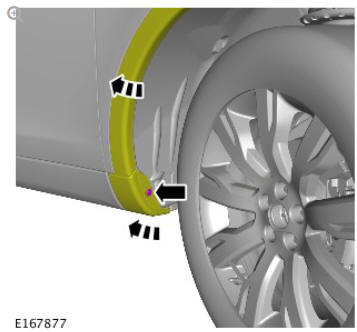

Turn the steering wheel to full RH lock

Exterior trim and ornamentation rocker panel moulding (G1785265) removal and installation

Exterior trim and ornamentation rocker panel moulding (G1785265) removal and installation

CAUTION:

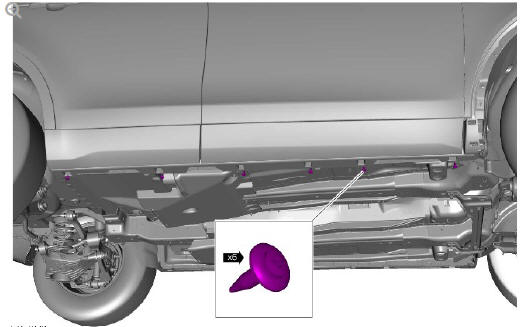

Using a suitable plastic trim tool, release the clips.

NOTE:

Discard the retaining clips.

Exterior trim and ornamentation rocker panel moulding (G1785265) removal and installation

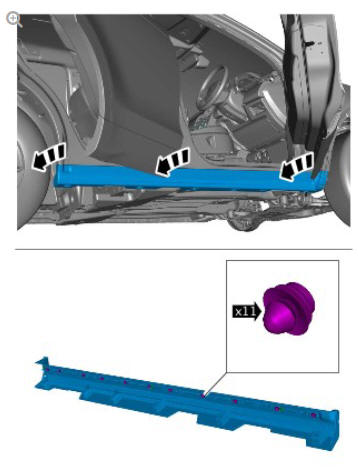

Renew Part: Retaining clips.

INSTALLATION

NOTE:

Install new retaining clips.

  1. To install, reverse the removal procedure.

Exterior trim and ornamentation roof moulding (G1785264) removal and installation

REMOVAL

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

RH illustration shown, LH is similar.

NOTE:

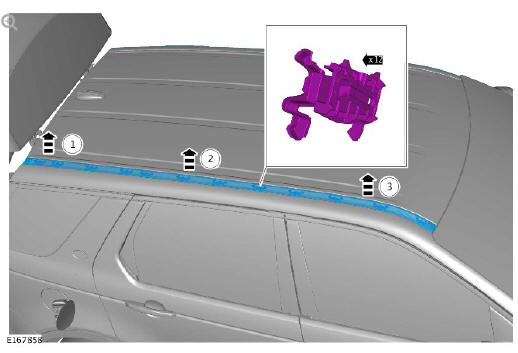

Carefully peel off the finisher from the roof without bending the free length more than 30deg.

Exterior trim and ornamentation roof moulding (G1785264) removal and installation

Open the liftgate.

INSTALLATION

NOTE:

Install new retaining clips.

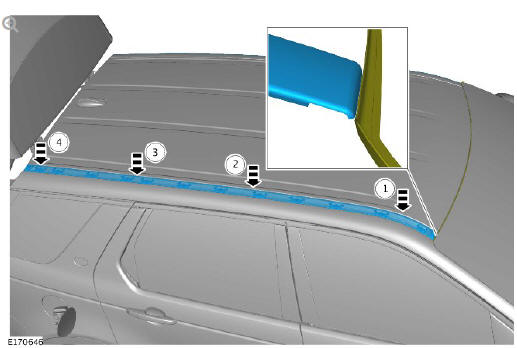

Exterior trim and ornamentation roof moulding (G1785264) removal and installation

Open the liftgate.
