Land Rover Discovery: Exterior Trim and Ornamentation Rear Wheel Arch Liner (G1817669) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Rear Wheel Arch Liner (G1817669) / Removal and Installation

REMOVAL

CAUTION:

LH illustration shown, RH is similar.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Wheel and Tire (204-04, Removal and Installation).

CAUTION:

Take extra care not to damage the component.

NOTE:

The step must be carried out on both sides.

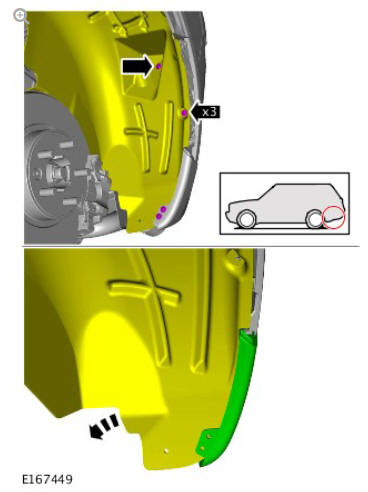

Exterior trim and ornamentation rear wheel arch liner (G1817669) removal and installation

NOTE:

The step must be carried out on both sides.

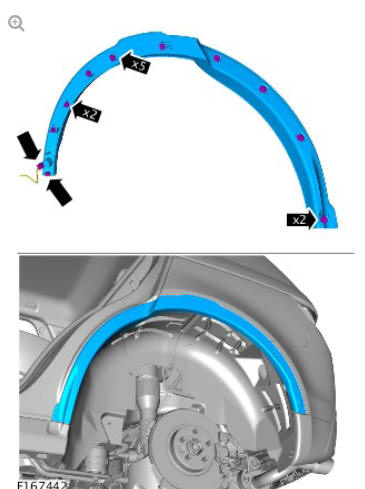

Exterior trim and ornamentation rear wheel arch liner (G1817669) removal and installation

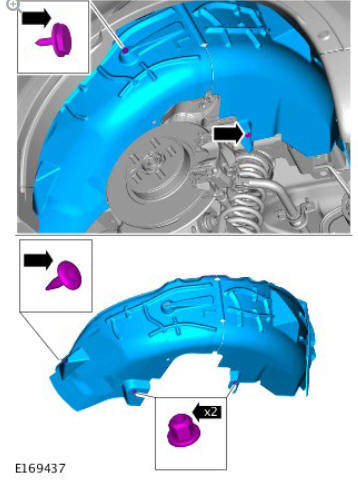

Exterior trim and ornamentation rear wheel arch liner (G1817669) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
