Land Rover Discovery: Electronic Power Steering Gear Inspection - With Heavy/ notchy Steering Gear

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Steering-System / Power Steering Diagnosis and Testing / Electronic Power Steering Gear Inspection - With Heavy/ notchy Steering Gear

EPAS Steering Gear Damage Assessment Checklist

  1. Log VIN
  2. Confirm noise, is it repeatable on the vehicle?
  3. Has vehicle previously had accident damage repairs?
  4. Are there any signs of impact damage to the wheels/tires?
  5. Is the steering free to turn lock to lock on a wheel free ramp?
  6. Is front steering alignment correct?
  7. Does the noise occur on all surfaces?
  8. Does the noise occur in all temperatures?

EPAS STEERING GEAR ACCIDENT DAMAGE CHECK

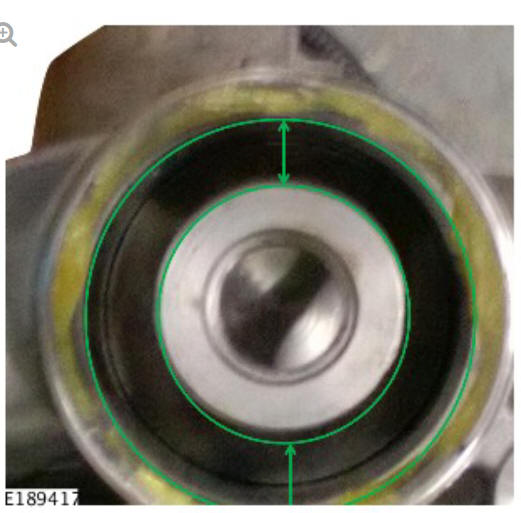

The example below shows a good steering gear in central position.

EPAS STEERING GEAR ACCIDENT DAMAGE CHECK

Bent Steering Gear

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

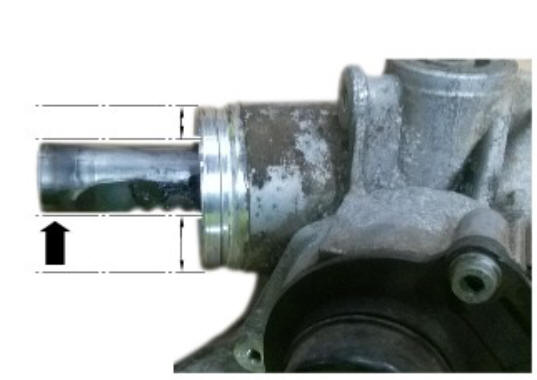

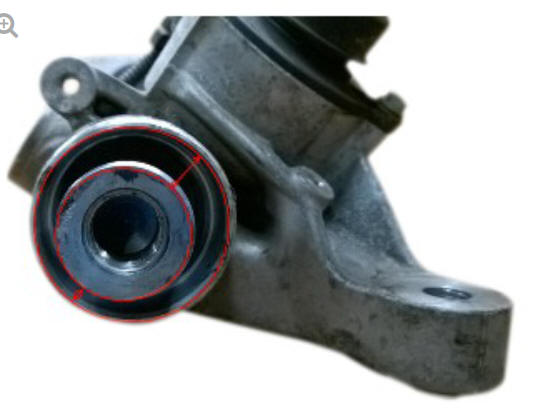

Check the differences between the distances at point A & B. Check if the rack is central and not rubbing on the end stop damper.

Bent Steering Gear

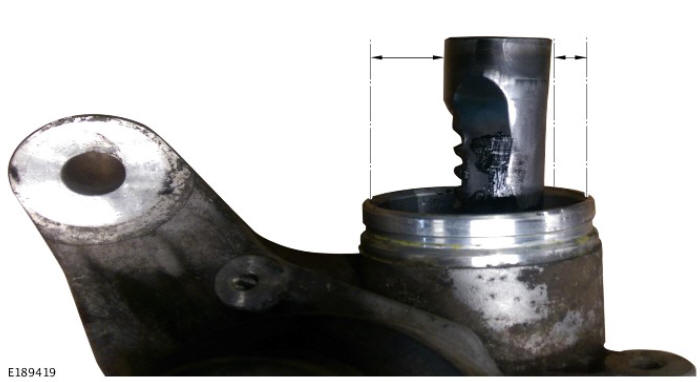

The rack clearly shows that it is not centralized meaning it is a bent steering gear issue.

Bent Steering Gear

Bent Steering Gear

The rack is not centralized to the gear housing meaning it is a bent steering gear issue.

Sign of Recent Repair

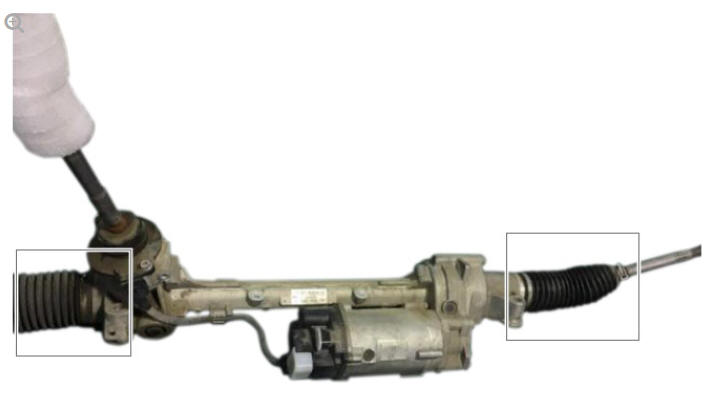

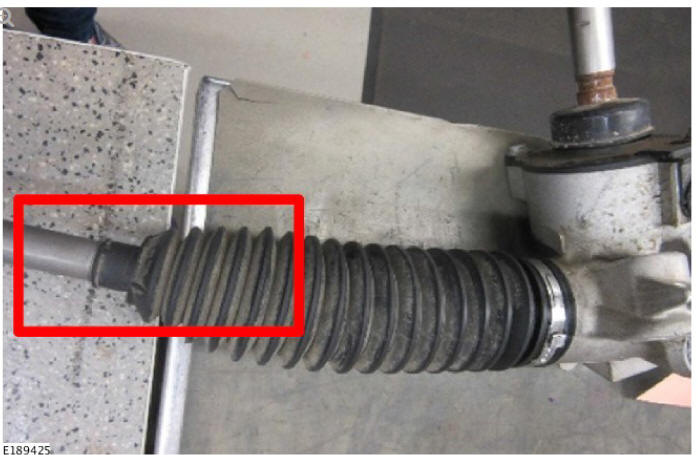

Check if the tie rod ends were recently changed. Visually inspect if the conditions of the boot are the same (dirty or clean).

Sign of Recent Repair

See the difference between the boots highlighted in yellow and in red. This will tell you if a tie rod has been replaced before in which case you can suspect accident damage.

Water/Debris Damage

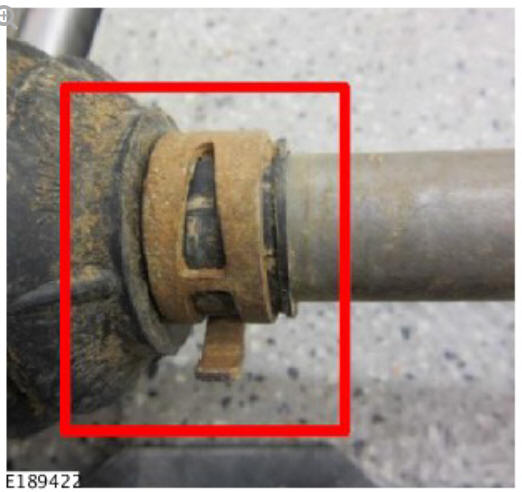

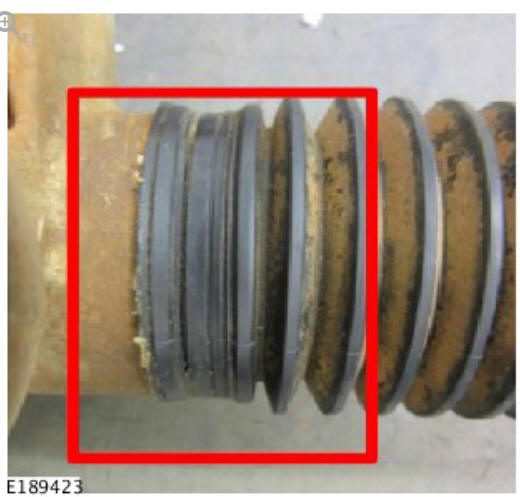

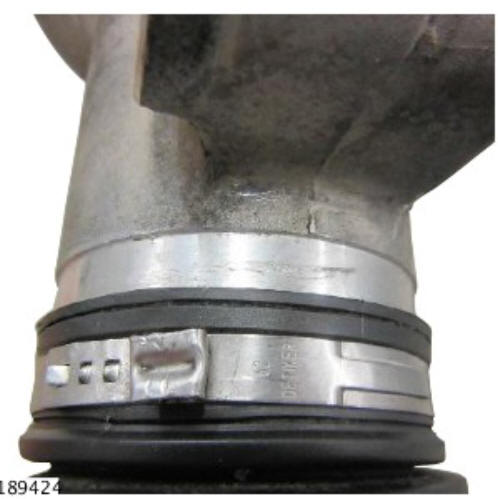

Check if boot clips are in position and they were not recently disturbed or moved. Check if clips are the correct type.

Water/Debris Damage

Water/Debris Damage

Water/Debris Damage

Water/Debris Damage

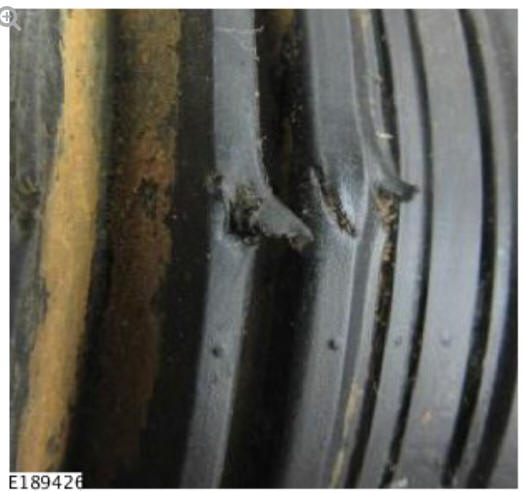

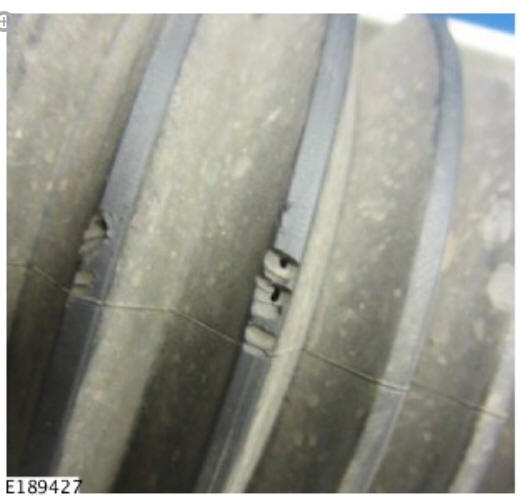

Check for damages and pin holes on the boots.

Water/Debris Damage

Water/Debris Damage

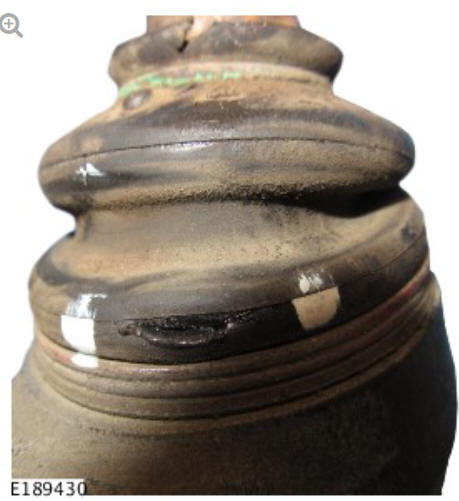

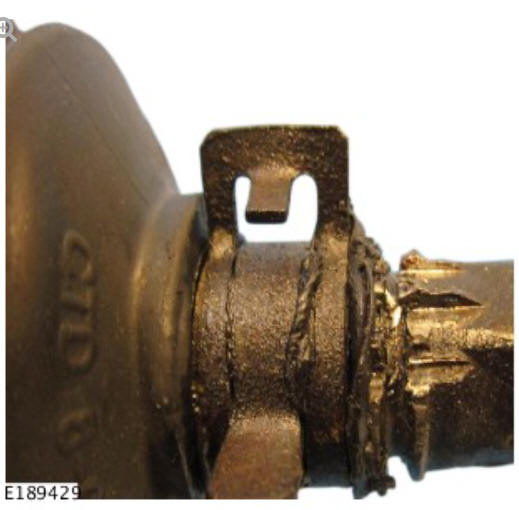

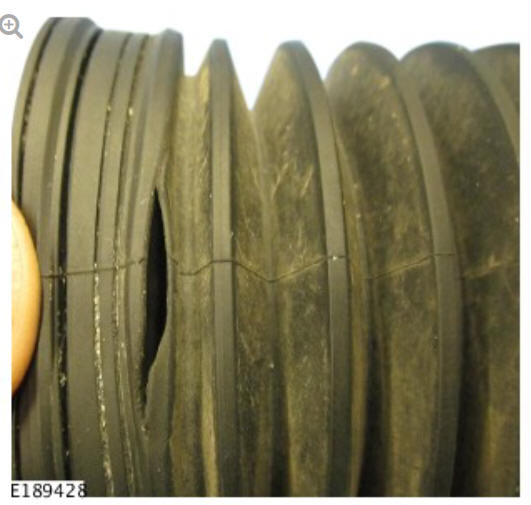

Check for split boots. Check for repair marks on tie rods.

Water/Debris Damage

Water/Debris Damage

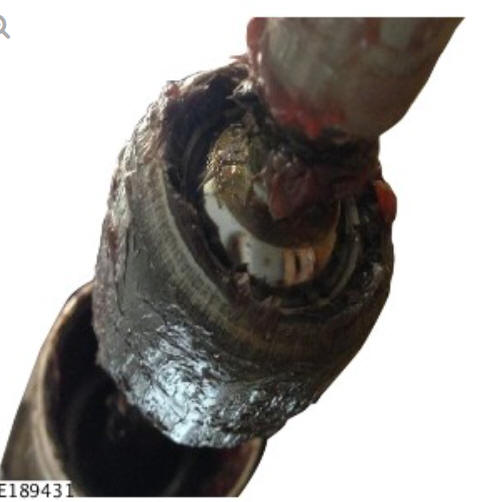

Is there evidence of water/debris into steering gear.

Water/Debris Damage

Water/Debris Damage

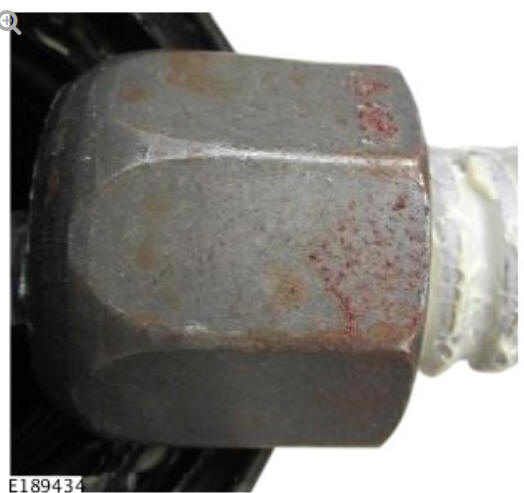

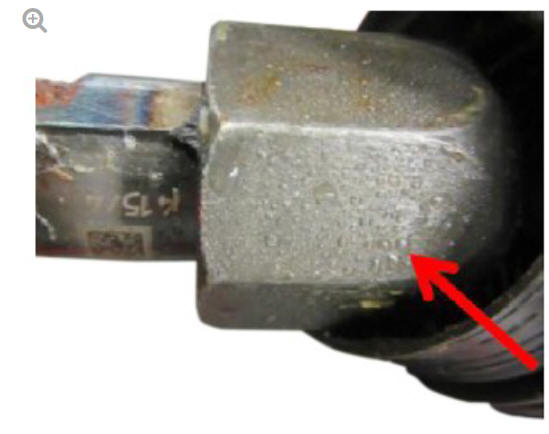

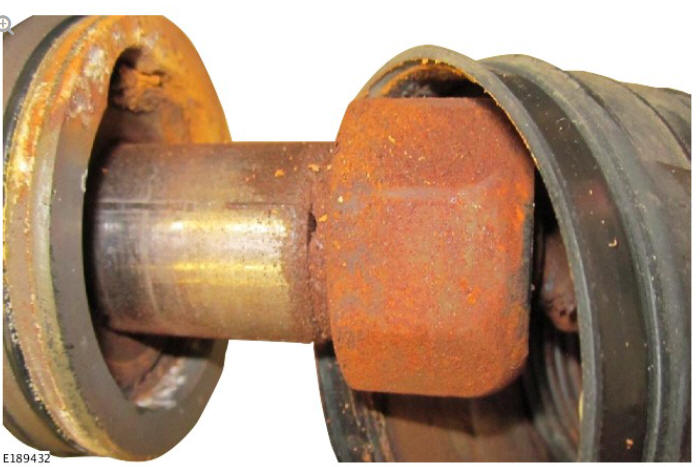

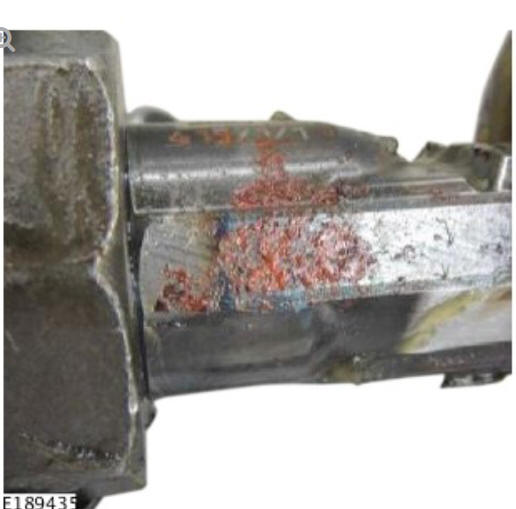

Check for Rust, condensation, and water deposits

Water/Debris Damage

Water/Debris Damage

Water/Debris Damage

ECU Damages

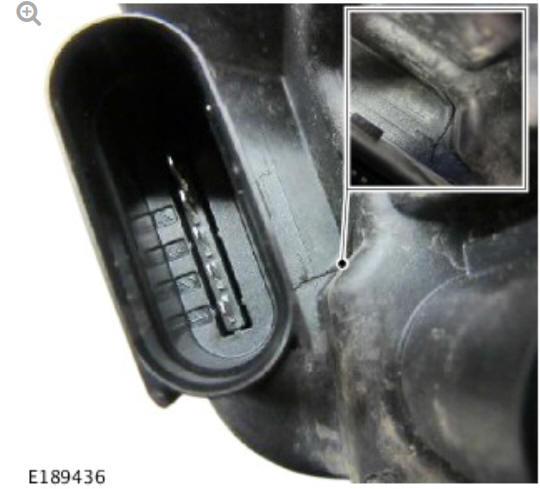

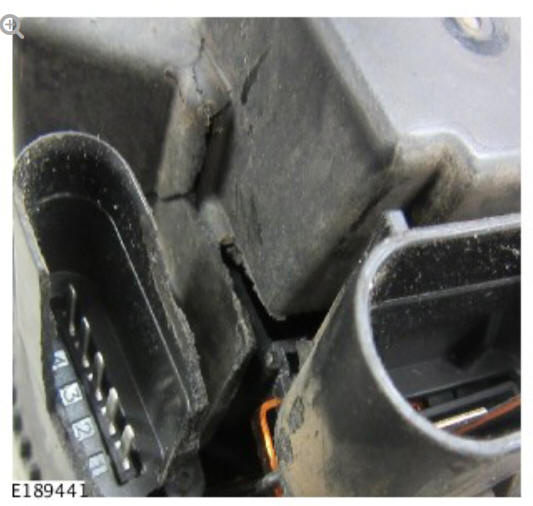

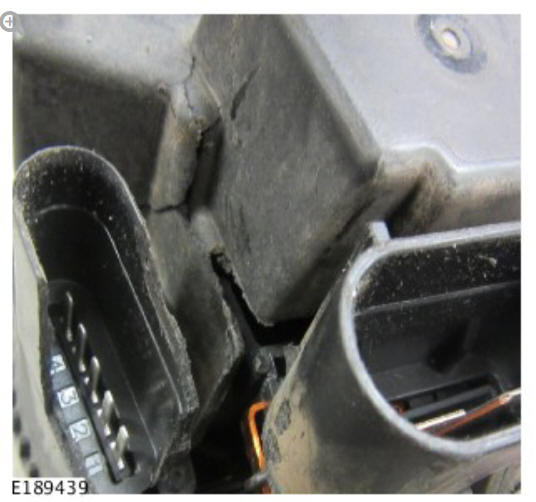

Check for cracks on PSCM housing.

ECU Damages

ECU Damages

Check for scratches and damages on PSCM connectors and the steering gear.

ECU Damages

ECU Damages

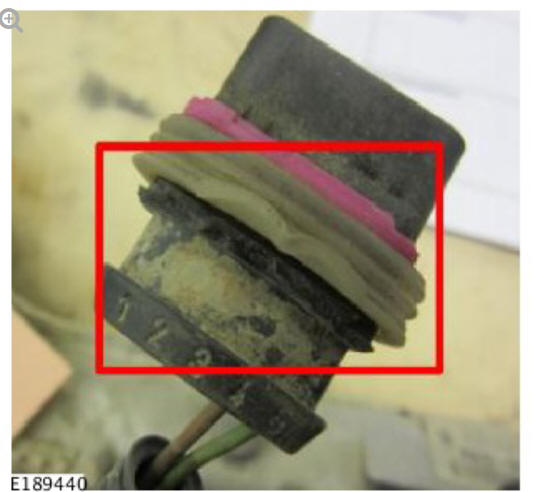

Damage to Connector, Seals or Wiring

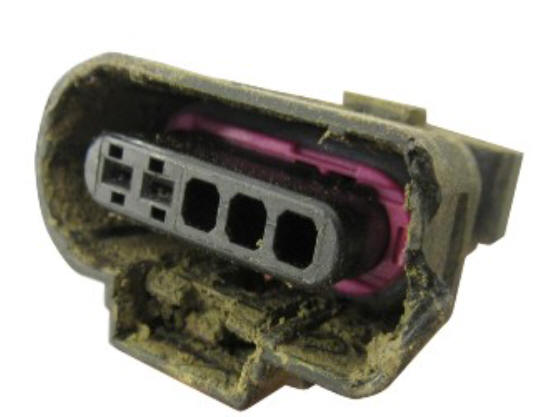

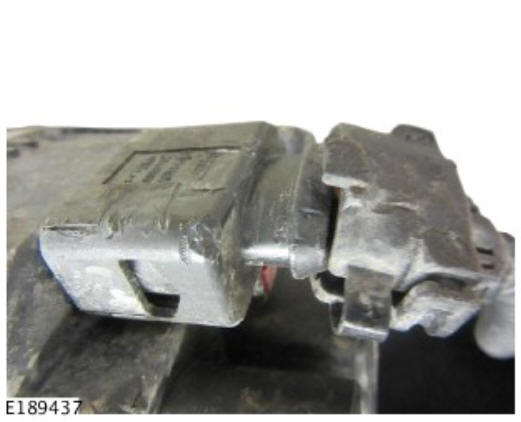

Is there evidence of damage to connector clips.

Check for removed/damaged connectors.

Damage to Connector, Seals or Wiring

Check for Harness damage between ECU and Torque sensor.

Damage to Connector, Seals or Wiring

Impact Damage to Motor/Gear Housing

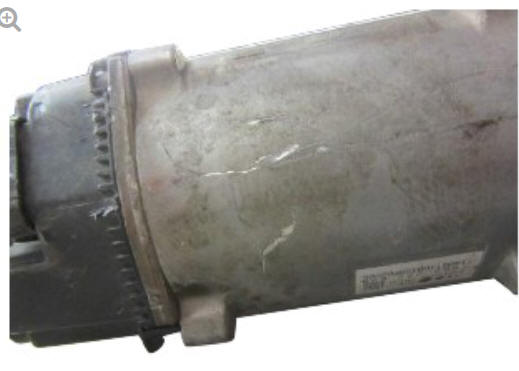

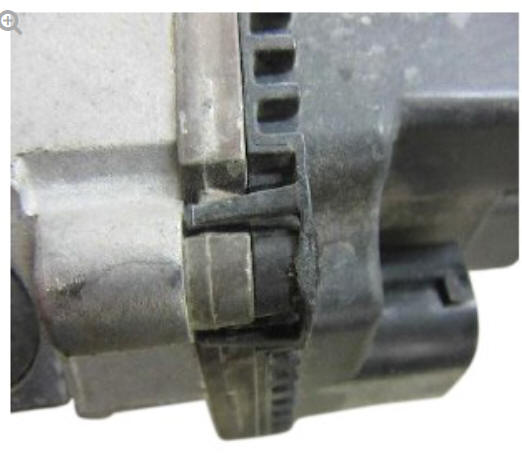

Check for evidence of impact on the motor/gear housing.

Impact Damage to Motor/Gear Housing

Check the alignment of the bolt between the housing and the motor and external damages on the motor housing that can alter belt tension.

Impact Damage to Motor/Gear Housing

Impact Damage to Motor/Gear Housing

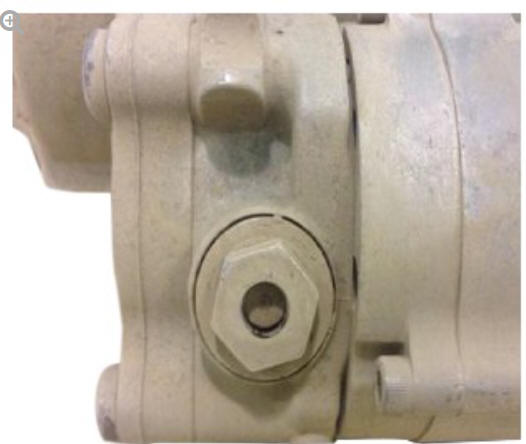

Drain Plug (where fitted)

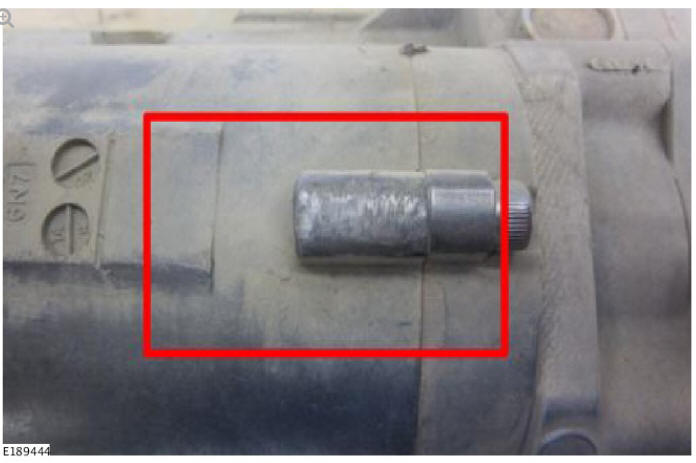

Is Water Drain Valve deployed?

Drain Plug (where fitted)

If Water Drain Valve is deployed, that means water is inside the gear, check for damaged bellows and clips.

Damage of Seat Material

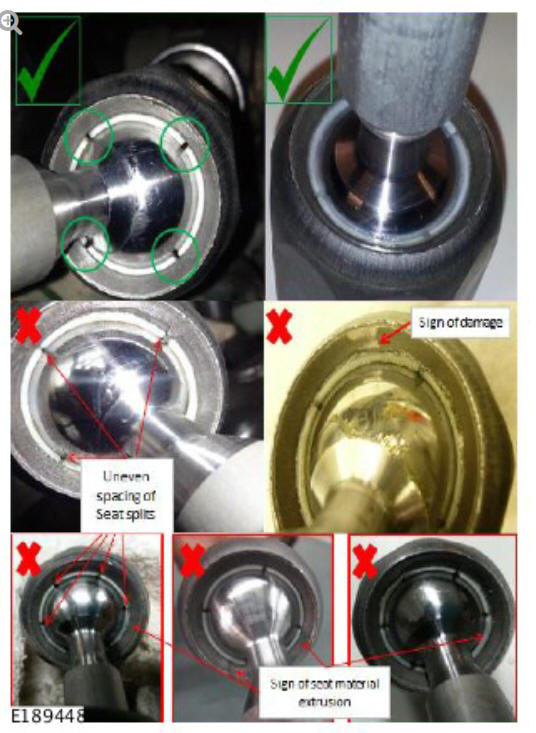

Is there evidence of damage to seat material?

Damage of Seat Material

Damage to Tie Rod

Is there evidence of tie rod bending?

Damage to Tie Rod

If there is heavy steering and bent tie rod there is a clear indication that the vehicle was subjected to heavy impacts.

Damage to Ball Joint

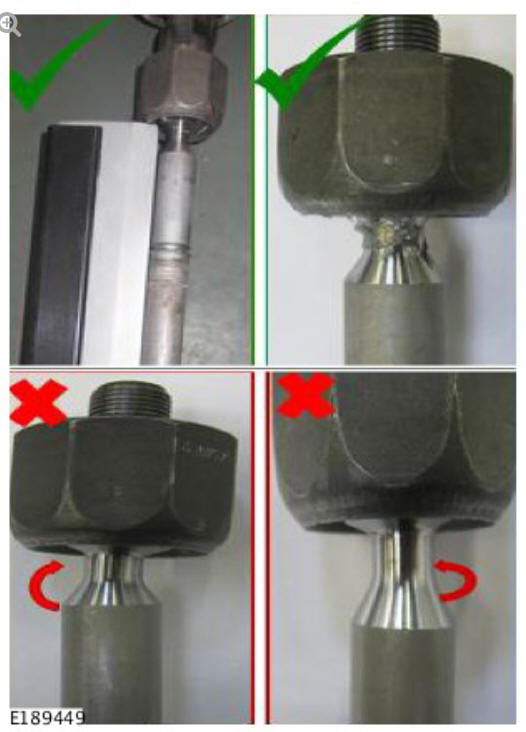

Is there evidence of damage to ball joints?

Damage to Ball Joint

Summary

WARNING:

The following issues are not covered under Warranty. Dealers should not claim these issues.

Accident damage

  • Bent Steering Gear
  • Bent Tie Rod
  • Damage PSCM housing & Power Motor

Water damage

  • Rusty gears
  • Water ingress

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Power Steering Control Module (100-00 General Information, Description and Operation).

Power steering specifications

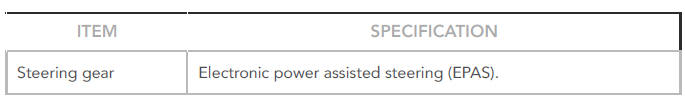

General Specification

General Specification

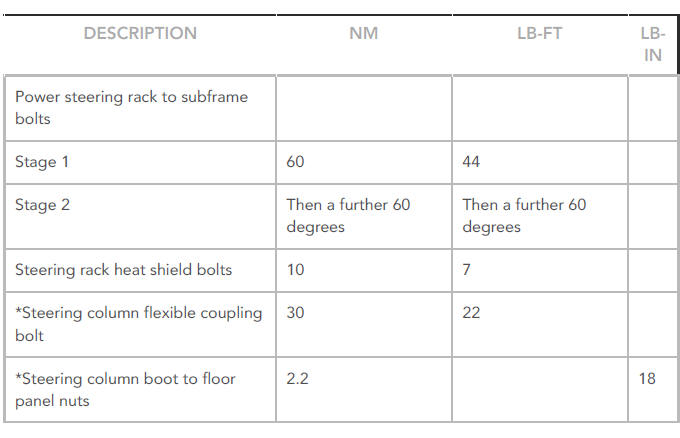

Torque Specifications

Torque Specifications

* New nuts/bolts must be installed
