Land Rover Discovery: Side Panel Sheet
Metal Repairs
Rocker Panel and 'B'
Pillar Outer
Panel (G1770927) -
Installation
Installation
- Dress the flanges where necessary.

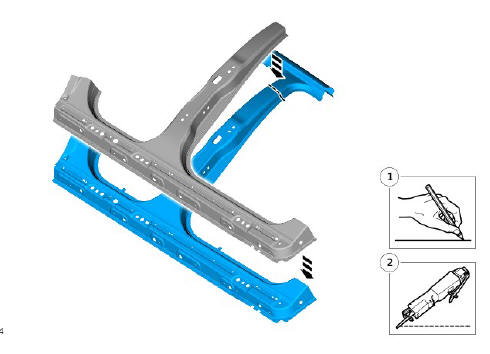

- Using the old rocker panel and B-pillar outer for reference measure,
mark and cut the new rocker panel and B-pillar outer where the
Metal Inert Gas (MIG) butt joints are to be made as indicated.
.34.jpg)
- Offer up the new rocker panel and B-pillar outer and clamp into
position. Check alignment if correct, proceed to next step, if not,
rectify and recheck before proceeding.
NOTE:
Follow Steps 1 and 2 as shown to cut the MIG braze slots.

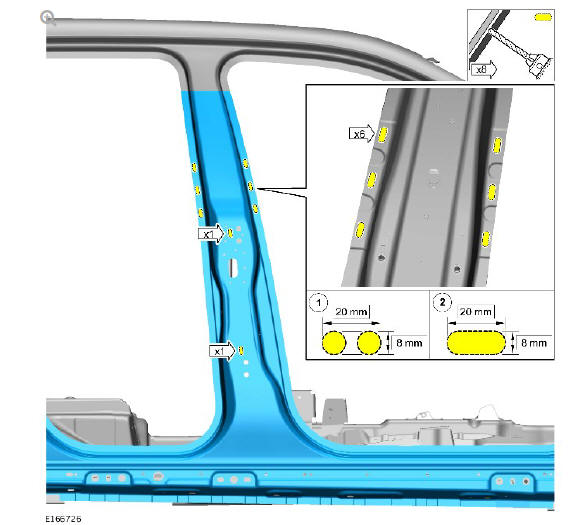

- Cut slots in the new rocker panel and B-pillar outer where the MIG
braze slot welds are to be installed as indicated.
.35.jpg)
NOTE:
Follow Steps 1 and 2 as shown to cut the MIG braze slots.
.36.jpg)

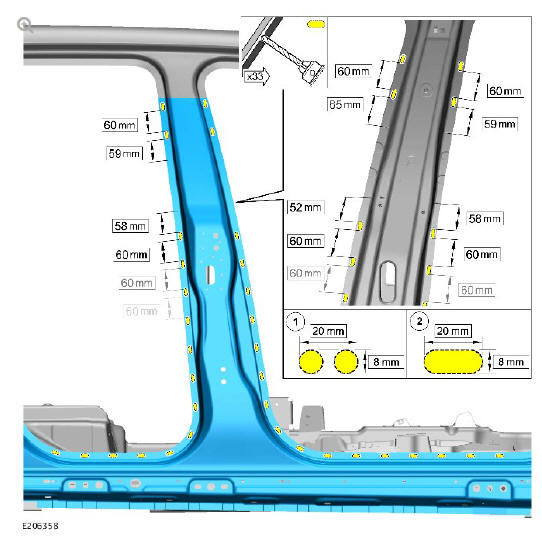

- Cut slots in the new rocker panel and B-pillar outer where the MIG
braze slot welds are to be installed as indicated.
NOTE:
Follow Steps 1 and 2 as shown to cut the MIG braze slots.
.37.jpg)

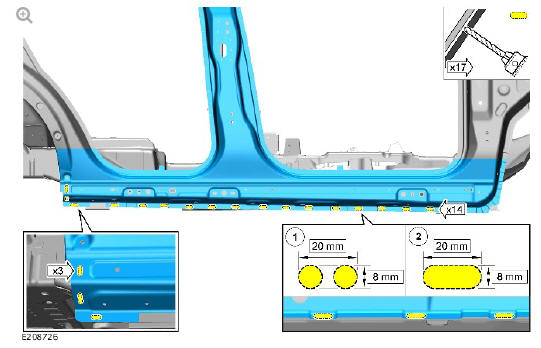

- Cut slots in the new rocker panel and B-pillar outer where the MIG
braze slot welds are to be installed as indicated.
.38.jpg)

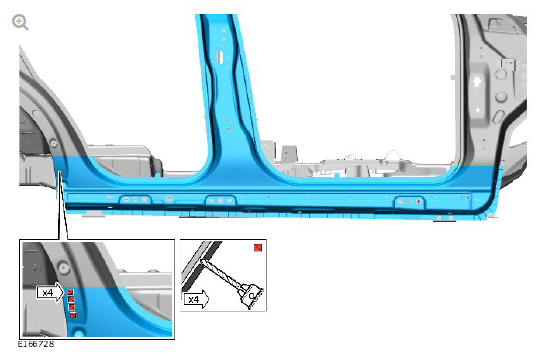

- Drill holes in new rocker panel and B-pillar outer where the MIG
plug welds are to be installed as indicated.
- Remove the new rocker panel and B-pillar outer.
- Deburr the drilled holes and slots.
- Clean and prepare the panel surfaces including the Noise, Vibration
and Harshness (NVH) component.

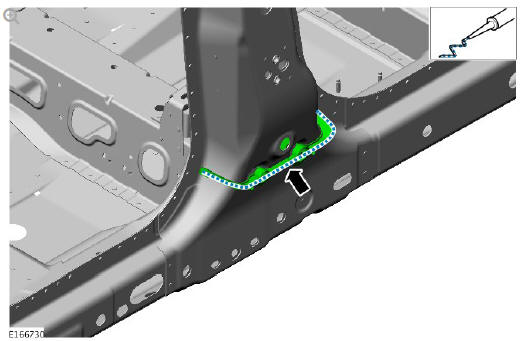

- Apply a 5 mm bead of Land Rover recommended sealer to the NVH
component as indicated.
.39.jpg)
- Offer up the new rocker panel and B-pillar outer and clamp into
position. Check alignment if correct, proceed to next step, if not,
rectify and recheck before proceeding.
.40.jpg)

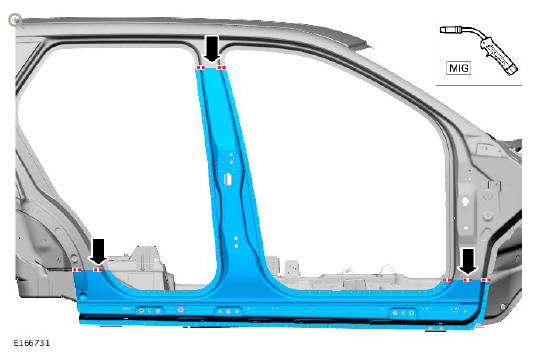

- Tack MIG weld the butt joints as indicated.
.41.jpg)

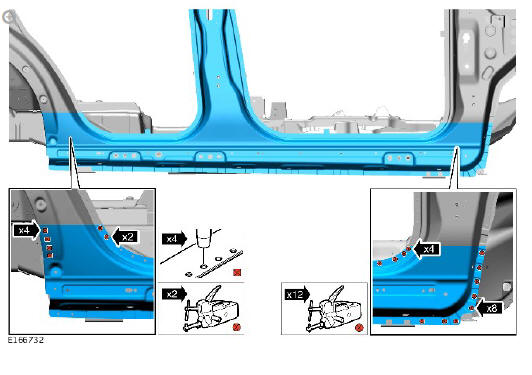

- Install the spot and MIG plug welds as indicated.
.42.jpg)

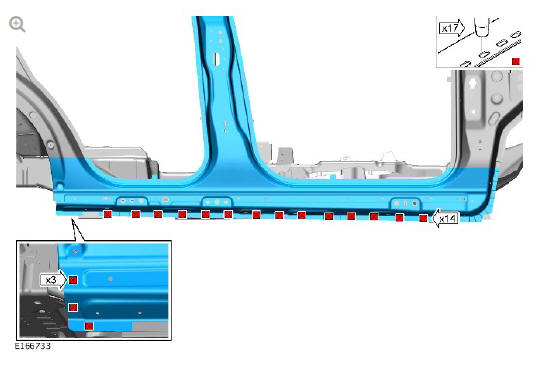

- Install the MIG braze slot welds as indicated.
.43.jpg)

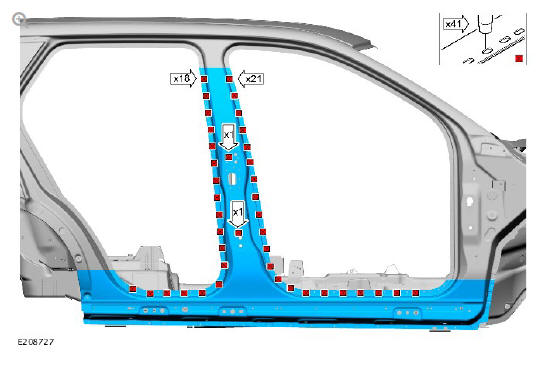

- Install the MIG braze slot welds as indicated.
.44.jpg)

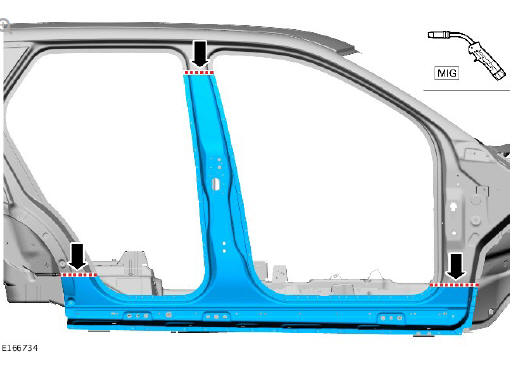

- MIG weld the butt joints as indicated.
- Dress all welds.
- Install the front door lower door hinge and tighten the bolts to 30
Nm.
- Install the rear door upper and lower hinges and tighten the bolts
to 30 Nm.
- Apply a Land Rover recommended sealer and seal the panel flange
edges of the MIG braze slot welds in the door aperture areas to
prevent water ingress.
- Make sure that any open or exposed panel joints are correctly
sealed.
- Make sure corrosion protection is applied to all areas affected by
repair.
- The installation of associated panels and components is the reversal
of removal procedure.
