Land Rover Discovery: Exterior Trim and Ornamentation Rear Door Lower Moulding (G1796253) /Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Exterior trim and ornamentation / Exterior Trim and Ornamentation Rear Door Lower Moulding (G1796253) /Removal and Installation

PART(S)

PART(S)

REMOVAL

CAUTION:

Make sure to protect the paintwork.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration show LH is similar.

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Discard the retaining clips.

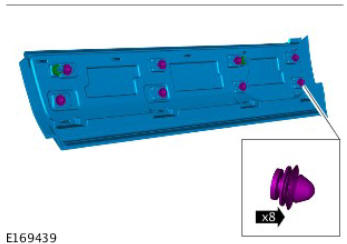

Exterior trim and ornamentation rear door lower moulding (G1796253) removal and installation

Exterior trim and ornamentation rear door lower moulding (G1796253) removal and installation

Open the front door.

Renew Part: Retaining clips.

INSTALLATION

NOTE:

Use new retaining clips.

To install, reverse the removal procedure.
