Exterior trim and ornamentation front door lower moulding (G1796376) removal and installation

REMOVAL

CAUTION:

Make sure to protect the paintwork.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTE:

Discard the retaining clips.

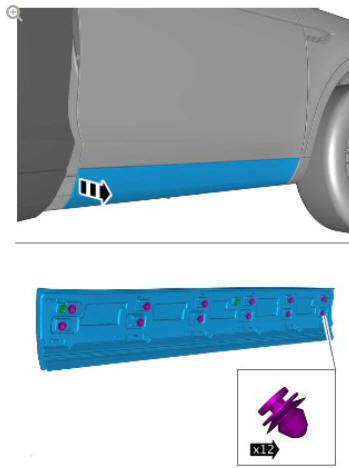

Exterior trim and ornamentation front door lower moulding (G1796376) removal and installation

Renew Part: Retaining clips.

INSTALLATION

NOTE:

Use new retaining clips.

  1. To install, reverse the removal procedure.

Exterior trim and ornamentation front fender moulding (G1655196) removal and installation

REMOVAL

CAUTION:

Make sure to protect the paintwork.

NOTE:

Removal steps in this procedure may contain installation details.

  1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand

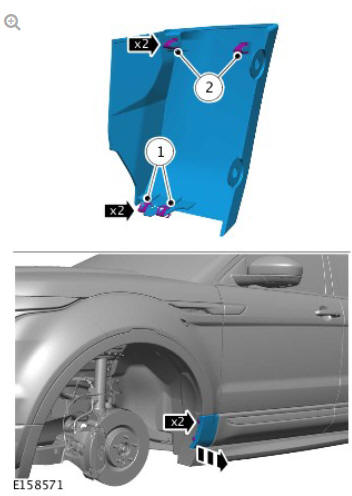

Exterior trim and ornamentation front fender moulding (G1655196) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
