Land Rover Discovery: Front Bumper Cover (G1780369)
/ Removal and
Installation
Front bumper cover (G1780369)
- Removal
NOTE:
Removal steps in this procedure may contain installation details.

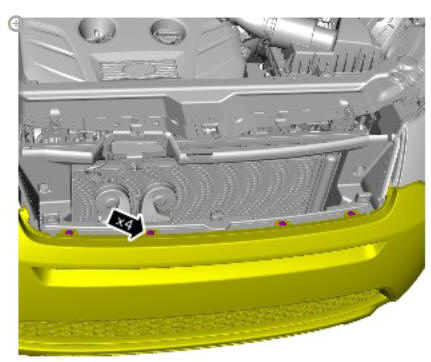

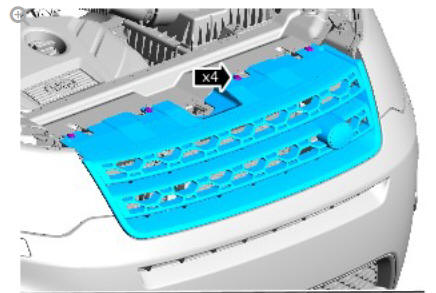

![Front bumper cover (G1780369) - Removal](images/books/227/index(5).89.jpg)

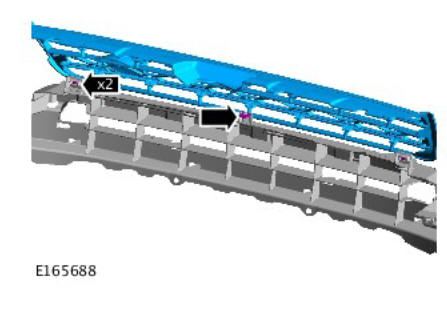

![Front bumper cover (G1780369) - Removal](images/books/227/index(5).90.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).91.jpg)
WARNING:
Make sure to support the vehicle with axle stands.
- Raise and support the vehicle.
NOTE:
The step must be carried out on both sides.
- Refer to: Fender Splash Shield (501-02 Front End Body Panels,
Removal and Installation).

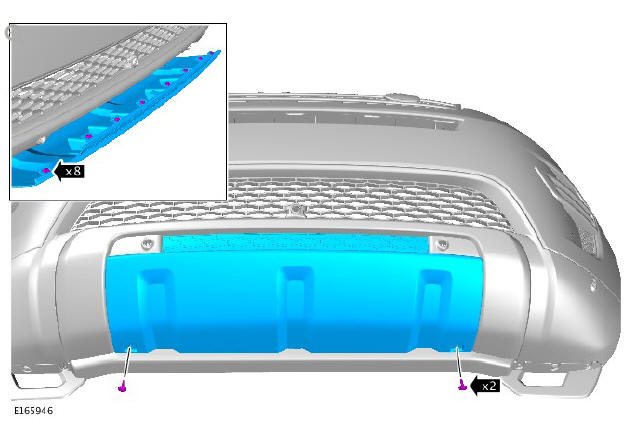

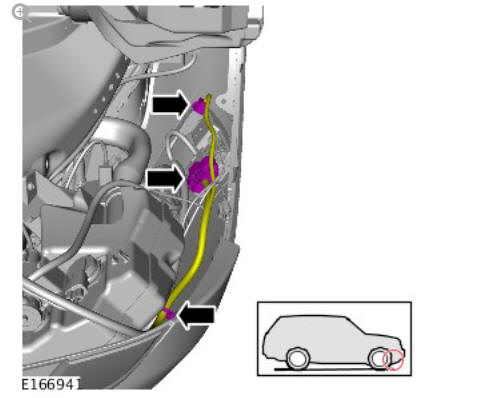

![Front bumper cover (G1780369) - Removal](images/books/227/index(5).92.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).93.jpg)

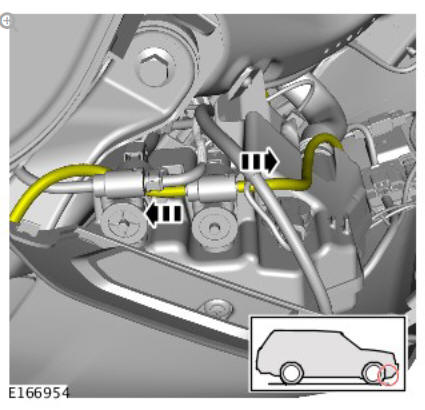

CAUTION:
Be prepared to collect escaping fluids.
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).94.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).95.jpg)

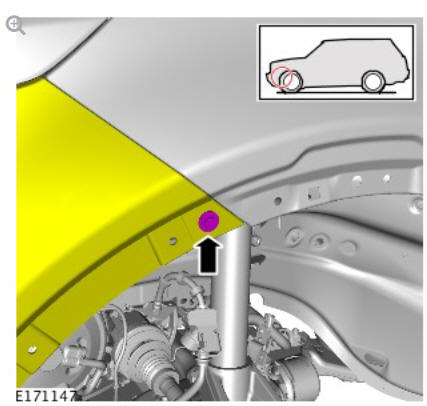

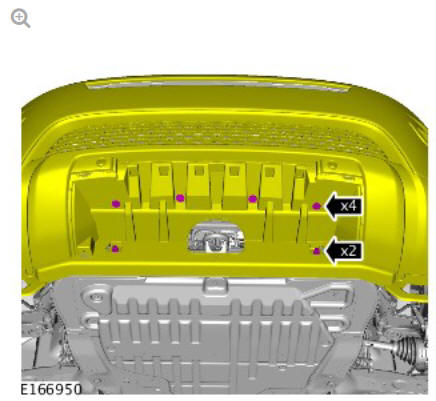

Torque: 10 Nm
NOTE:The step must be carried out on both sides.
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).96.jpg)
Torque: 10 Nm
CAUTION:
Protect the surrounding paintwork to avoid damage
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).97.jpg)

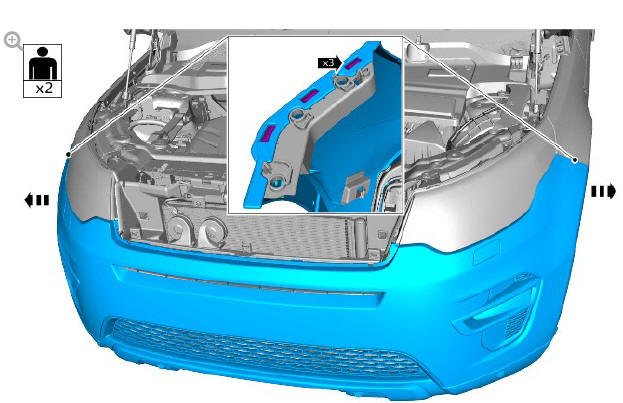

NOTES:
- The step must be carried out on both sides.
- Do not disassemble further if the component is removed
for access only.

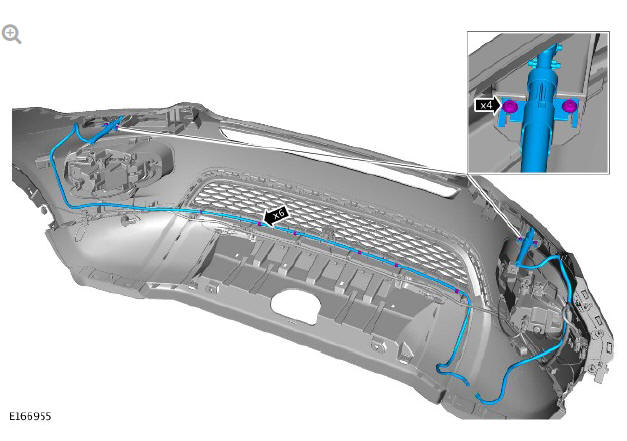

![Front bumper cover (G1780369) - Removal](images/books/227/index(5).98.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(5).99.jpg)
NOTE:
The step must be carried out on both sides.
![Front bumper cover (G1780369) - Removal](images/books/227/index(11).1.jpg)

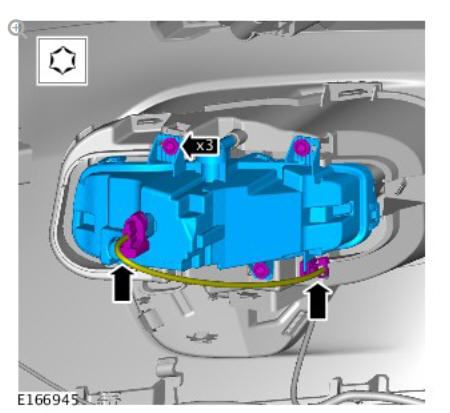

Torque: 2 Nm

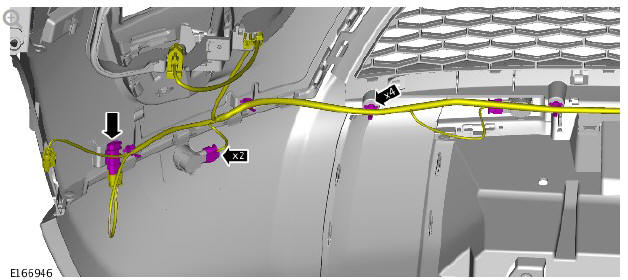

![Front bumper cover (G1780369) - Removal](images/books/227/index(11).2.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(11).3.jpg)

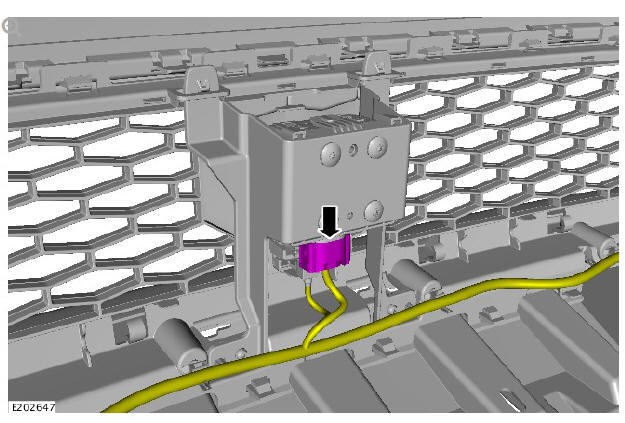

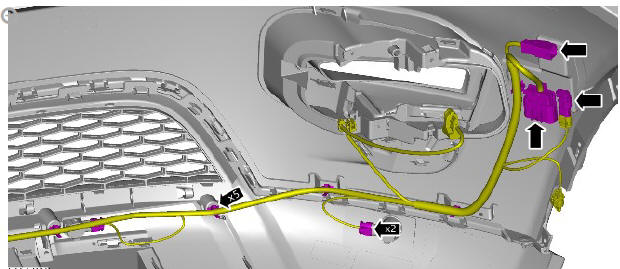

NOTE:
If fitted.

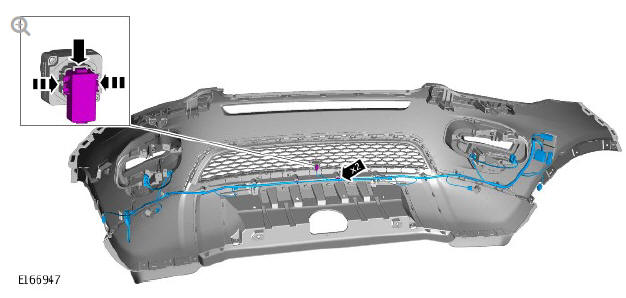

![Front bumper cover (G1780369) - Removal](images/books/227/index(11).4.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(11).5.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(11).6.jpg)

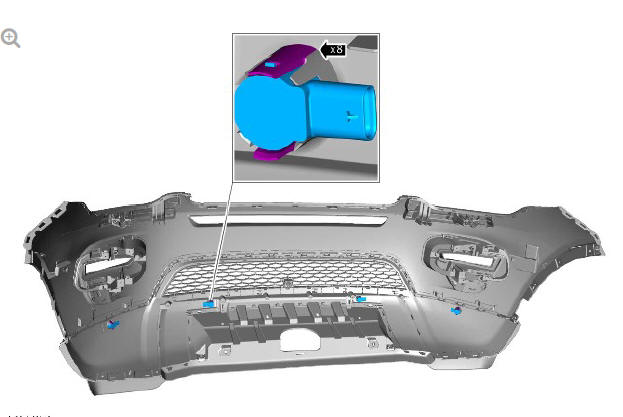

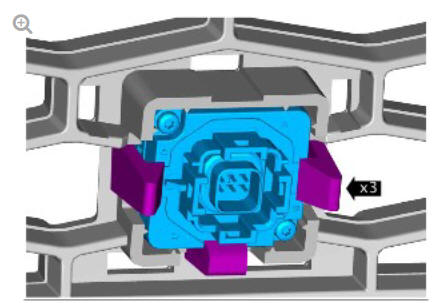

CAUTION:
Make sure that the component is correctly located on the
locating dowels.

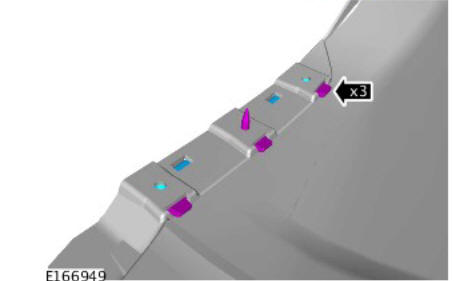

NOTE:
Note the orientation of the component prior to removal.

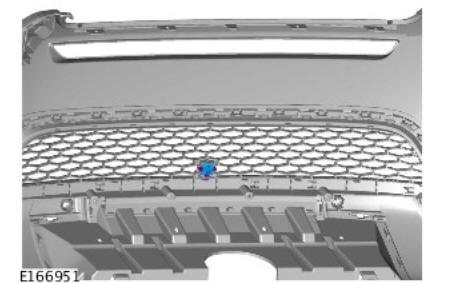

![Front bumper cover (G1780369) - Removal](images/books/227/index(11).7.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).8.jpg)

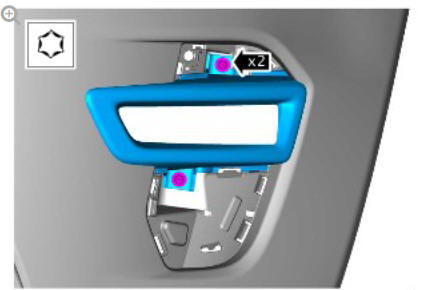

NOTE:
The step must be carried out on both sides.
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).9.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).10.jpg)

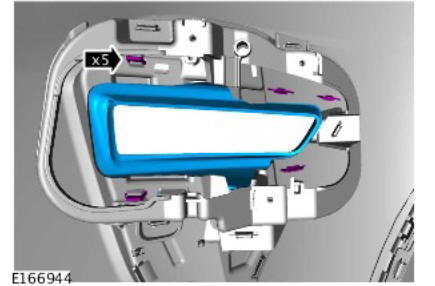

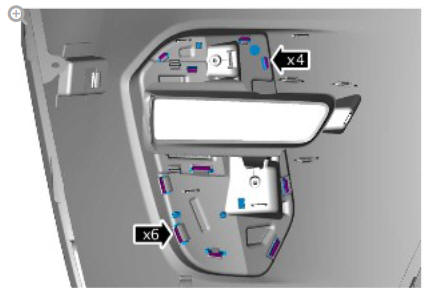

NOTE:
The step must be carried out on both sides.
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).11.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).12.jpg)

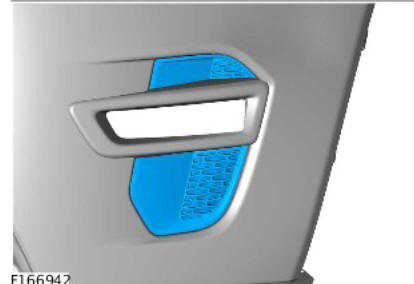

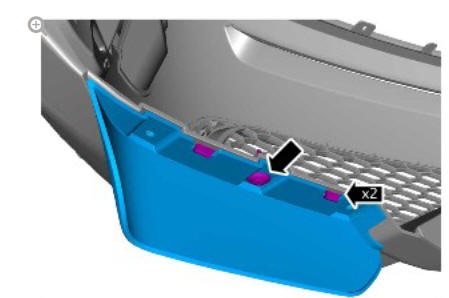

NOTE:
The step must be carried out on both sides.
![Front bumper cover (G1780369) - Removal](images/books/227/index(10).13.jpg)
![Front bumper cover (G1780369) - Removal](images/books/227/index(9).14.jpg)
INSTALLATION
- To install, reverse the removal procedure.
