Land Rover Discovery: Parking, Rear and License Plate Lamps

Land Rover Discovery (2009–2016) Service Manual / Electrical / Lighting / Parking, Rear and License Plate Lamps

PRINCIPLES OF OPERATION

For a detailed description of the Parking, Rear and License Plate Lamps, refer to the relevant Description and Operation section in the workshop manual. REFER to: Exterior Lighting (417-01 Exterior Lighting, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter that has the resolution ability to view 3 decimal places.

    For example, on the 2 volts range can measure 1mV or 2 K Ohm range can measure 1 Ohm. When testing resistance always take the resistance of the digital multimeter leads into account.

  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

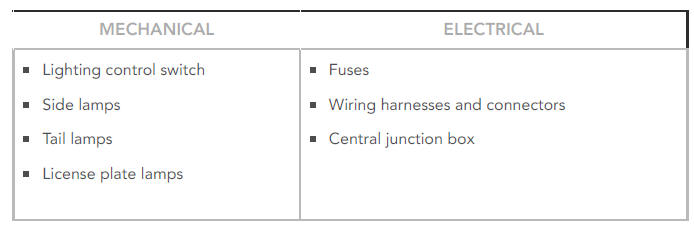

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

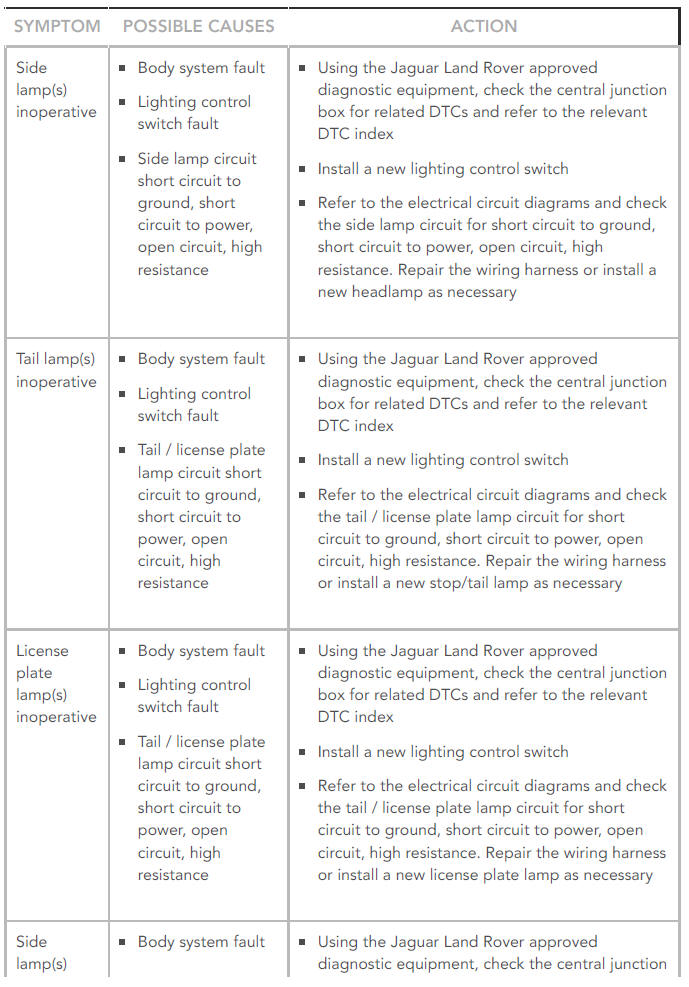

SYMPTOM CHART

SYMPTOM CHART

SYMPTOM CHART

SYMPTOM:

Side lamp(s) inoperative

POSSIBLE CAUSES:

  • Body system fault
  • Lighting control switch fault
  • Side lamp circuit short circuit to ground, short circuit to power, open circuit, high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Install a new lighting control switch
  • Refer to the electrical circuit diagrams and check the side lamp circuit for short circuit to ground, short circuit to power, open circuit, high resistance. Repair the wiring harness or install a new headlamp as necessary

SYMPTOM:

Tail lamp(s) inoperative

POSSIBLE CAUSE:

  • Body system fault
  • Lighting control switch fault
  • Tail / license plate lamp circuit short circuit to ground, short circuit to power, open circuit, high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Install a new lighting control switch
  • Refer to the electrical circuit diagrams and check the tail / license plate lamp circuit for short circuit to ground, short circuit to power, open circuit, high resistance. Repair the wiring harness or install a new stop/tail lamp as necessary

SYMPTOM:

License plate lamp(s) inoperative

POSSIBLE CAUSE:

  • Body system fault
  • Lighting control switch fault
  • Tail / license plate lamp circuit short circuit to ground, short circuit to power, open circuit, high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Install a new lighting control switch
  • Refer to the electrical circuit diagrams and check the tail / license plate lamp circuit for short circuit to ground, short circuit to power, open circuit, high resistance. Repair the wiring harness or install a new license plate lamp as necessary

SYMPTOM:

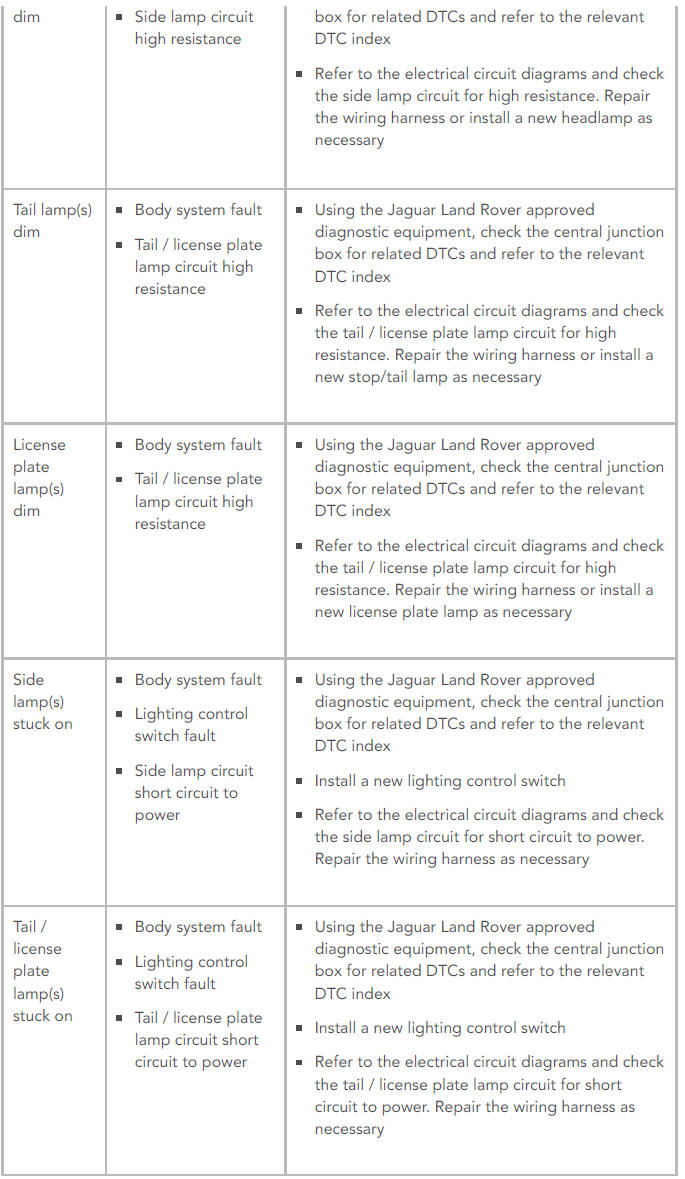

Side lamp(s) dim

POSSIBLE CAUSE:

  • Body system fault
  • Side lamp circuit high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Refer to the electrical circuit diagrams and check the side lamp circuit for high resistance. Repair the wiring harness or install a new headlamp as necessary

SYMPTOM:

Tail lamp(s) dim

POSSIBLE CAUSE:

  • Body system fault
  • Tail / license plate lamp circuit high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Refer to the electrical circuit diagrams and check the tail / license plate lamp circuit for high resistance. Repair the wiring harness or install a new stop/tail lamp as necessary

SYMPTOM:

License plate lamp(s) dim

POSSIBLE CAUSE:

  • Body system fault
  • Tail / license plate lamp circuit high resistance

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Refer to the electrical circuit diagrams and check the tail / license plate lamp circuit for high resistance. Repair the wiring harness or install a new license plate lamp as necessary

SYMPTOM:

Side lamp(s) stuck on

POSSIBLE CAUSE:

  • Body system fault
  • Lighting control switch fault
  • Side lamp circuit short circuit to power

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Install a new lighting control switch
  • Refer to the electrical circuit diagrams and check the side lamp circuit for short circuit to power.

    Repair the wiring harness as necessary

SYMPTOM:

Tail / license plate lamp(s) stuck on

POSSIBLE CAUSE:

  • Body system fault
  • Lighting control switch fault
  • Tail / license plate lamp circuit short circuit to power

ACTION:

  • Using the Jaguar Land Rover approved diagnostic equipment, check the central junction box for related DTCs and refer to the relevant DTC index
  • Install a new lighting control switch
  • Refer to the electrical circuit diagrams and check the tail / license plate lamp circuit for short circuit to power. Repair the wiring harness as necessary
