Land Rover Discovery: Headlamp Bulb (G1785270) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Lighting / Headlamps / Headlamp Bulb (G1785270) / Removal and Installation

REMOVAL

WARNING:

Vehicles fitted with Xenon headlamps, the following precautions must be observed. Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or the risk of explosion. Ensure the headlamps are switched off at all times. Eye and hand protection must be worn. Never switch on the lamps or test the bulbs with the lamp holder released from the headlamp.

NOTES:

  • Left illustration shown, Right is similar.
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

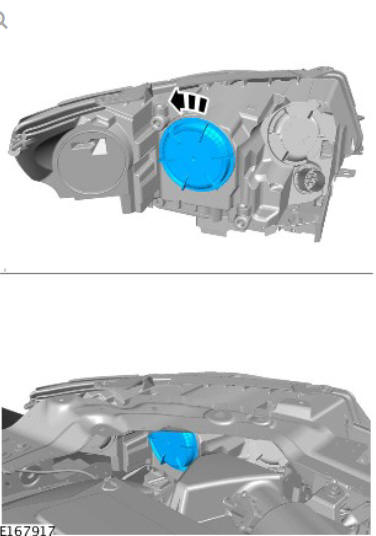

Headlamp Bulb (G1785270) Removal and Installation

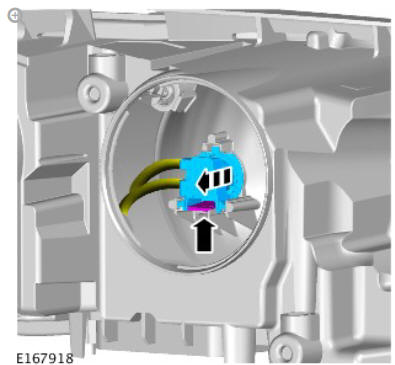

Headlamp Bulb (G1785270) Removal and Installation

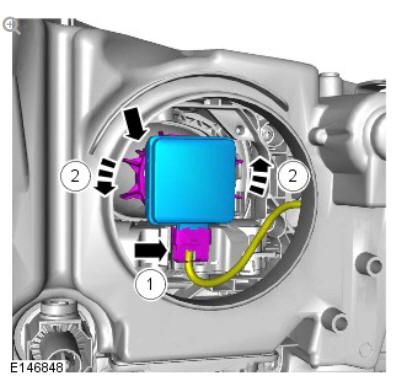

Headlamp Bulb (G1785270) Removal and Installation

NOTE:

If equipped.

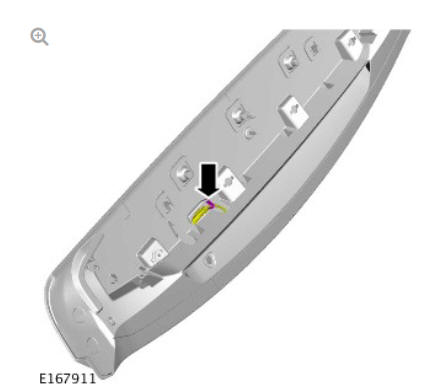

Headlamp Bulb (G1785270) Removal and Installation

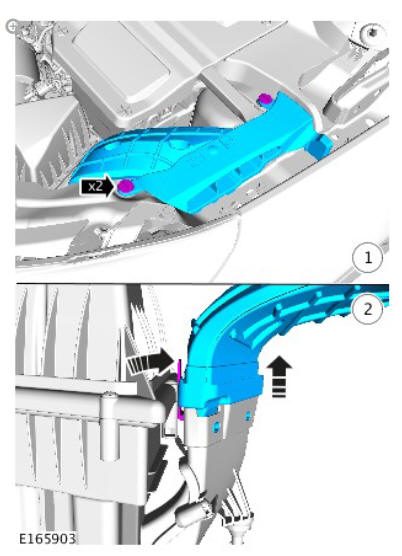

Headlamp Bulb (G1785270) Removal and Installation

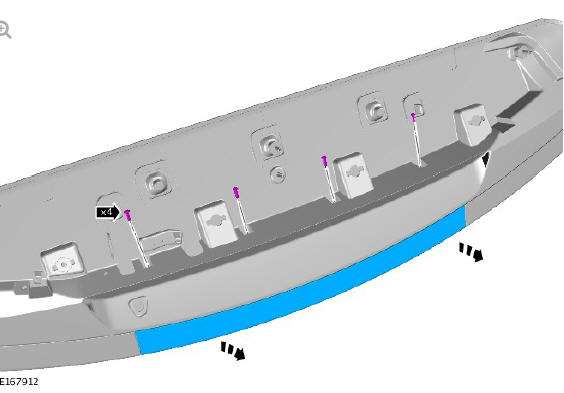

Headlamp Bulb (G1785270) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.

High Mounted Stoplamp (G1785271) Removal and Installation

REMOVAL

CAUTION:

Protect the surrounding components.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

  2. Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).

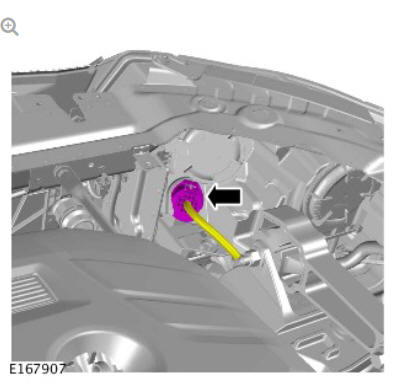

High Mounted Stoplamp (G1785271) Removal and Installation

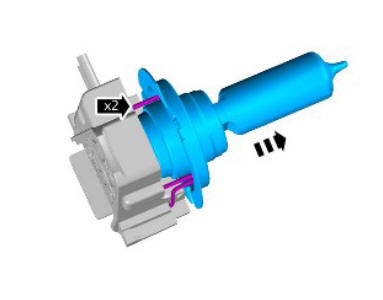

High Mounted Stoplamp (G1785271) Removal and Installation

Torque: 2 Nm

INSTALLATION

  1. To install reverse the removal procedure.
