Land Rover Discovery: Inner Tail Lamp Assembly (G1818088) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Lighting / Parking, Rear and License Plate Lamps / Inner Tail Lamp Assembly (G1818088) / Removal and Installation

REMOVAL

CAUTION:

Take extra care not to damage the surrounding components.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, right is similar.

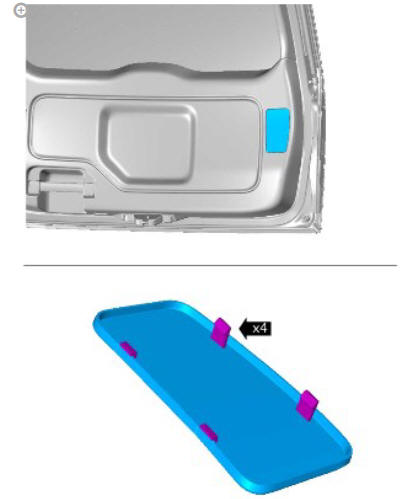

Inner Tail Lamp Assembly (G1818088) Removal and Installation

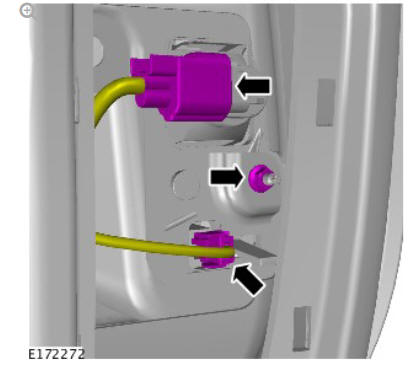

Inner Tail Lamp Assembly (G1818088) Removal and Installation

Torque: 2.5 Nm

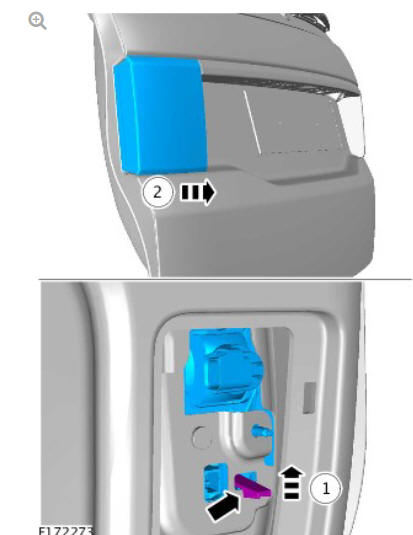

Inner Tail Lamp Assembly (G1818088) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.

License Plate Lamp (G1982981) Removal and Installation

REMOVAL

CAUTION:

Take extra care not to damage the surrounding components.

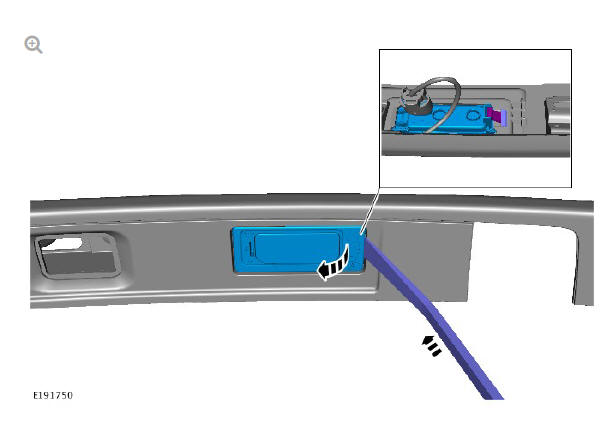

License Plate Lamp (G1982981) Removal and Installation

Using a suitable plastic trim tool, release the lamp.

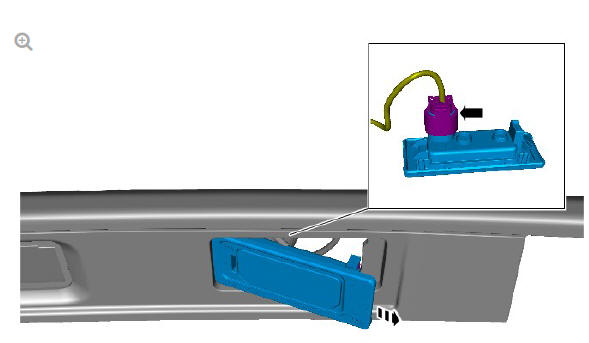

License Plate Lamp (G1982981) Removal and Installation

Disconnect the electrical connector.

INSTALLATION

  1. To install, reverse the removal procedure.
