Land Rover Discovery: Rear Drive Axle-
Differential - Vehicles without- Active Driveline
Drive
Pinion Flange -
Vehicles with- 9HP48 9-speed Automatic
Transmission - AWD
(G1775379) / Removal

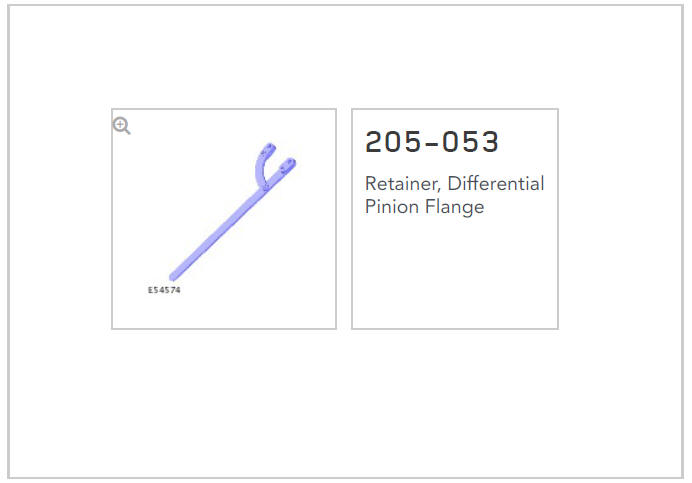

SPECIAL TOOL(S)
![SPECIAL TOOL(S)](images/books/227/index292(4).jpg)
Removal
WARNING:
Make sure to support the vehicle with axle stands.

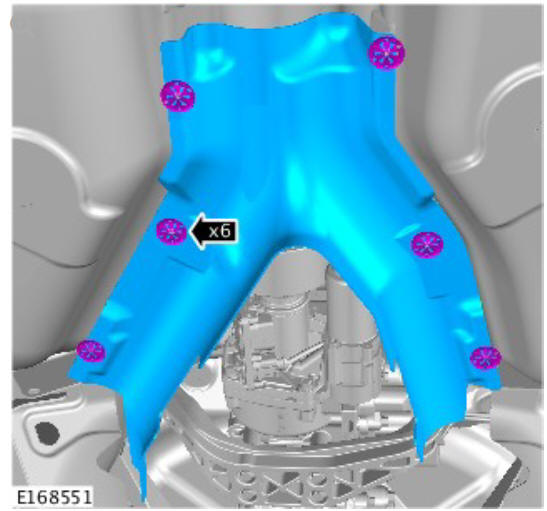

Raise and support the vehicle.
Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L
Diesel, Removal and Installation).
Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L
Diesel, Removal and Installation).

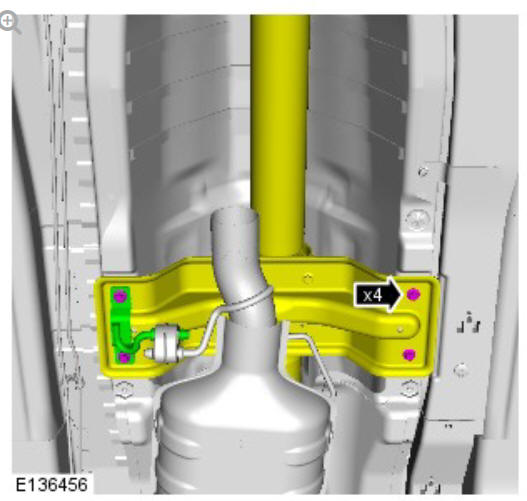

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index293(4).jpg)
CAUTION:
Make sure that the driveshaft is supported with suitable
retaining straps.

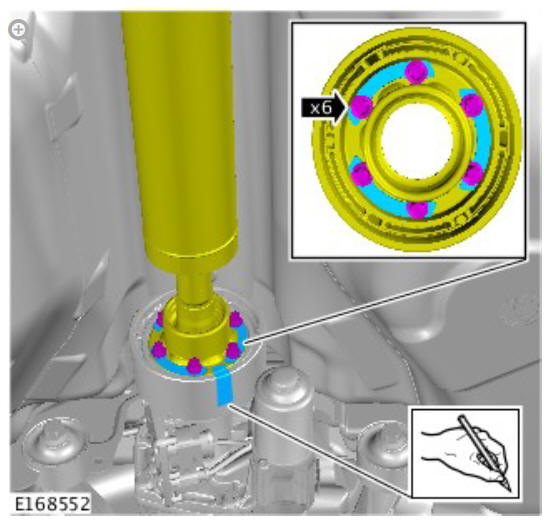

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index294(4).jpg)
CAUTIONS:
- Mark the position of the driveshaft flange in relation to the
drive pinion flange.
- To avoid damage to the joint or gaiter, do not allow the
driveshaft to hang.

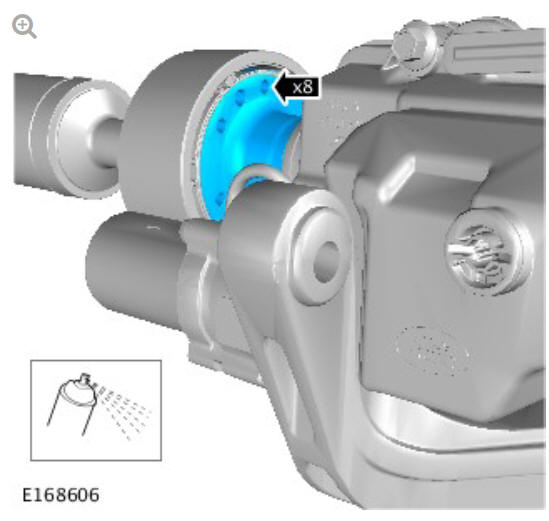

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index295(4).jpg)
Discard the Driveshaft bolts.
NOTE:
Use penetrating oil - spray through the driveshaft bolt holes
as shown.
![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index296(4).jpg)
CAUTION:
Use a suitable bolt with a square cross section end to avoid
damaging the driveshaft joint.
NOTE:
Driveshaft joint shown removed for clarity.

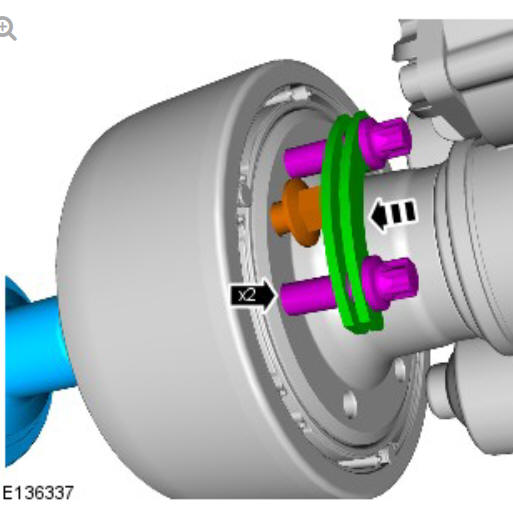

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index297(4).jpg)
NOTES:
- Two washers must be installed to the assist in the removal
of the driveshaft.
- Alternate tighten the bolts until the movement of the
driveshaft joint is detected.
![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index298(4).jpg)
CAUTION:
Make sure that the driveshaft is supported with suitable
retaining straps.
NOTE:
Repeat above steps until the propshaft joint is fully released.

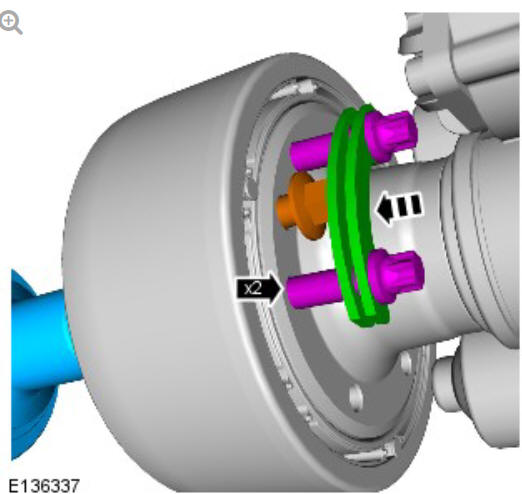

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index299(4).jpg)
Remove the bolts, turn the propshaft and repeat the above step at
the other unthreaded hole.
CAUTIONS:
- Discard the nut.
- Be prepared to collect escaping oil.

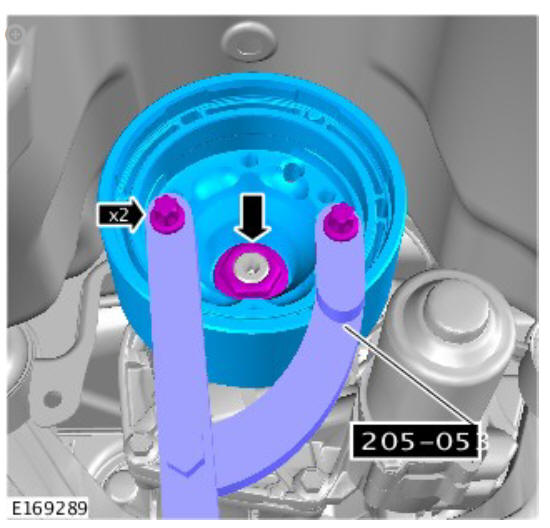

![Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Removal](images/books/227/index21(7).jpg)
Special Tool(s): 205-053
READ NEXT:
Installation
WARNING:
Make sure that a new nut is installed.
Special Tool(s): 205-053
Torque: 150 Nm
CAUTION:
The component must be aligned with the installation
markings.
Make sure new Drivesh
