Land Rover Discovery: Rear Drive Axle- Differential - Vehicles without- Active Driveline Drive Pinion Flange - Vehicles with- 9HP48 9-speed Automatic Transmission - AWD (G1775379) / Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle- Differential - Vehicles without- Active Driveline Drive Pinion Flange - Vehicles with- 9HP48 9-speed Automatic Transmission - AWD (G1775379) / Rear Drive Axle- Differential - Vehicles without- Active Driveline Drive Pinion Flange - Vehicles with- 9HP48 9-speed Automatic Transmission - AWD (G1775379) / Installation

Installation

WARNING:

Make sure that a new nut is installed.

Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Installation

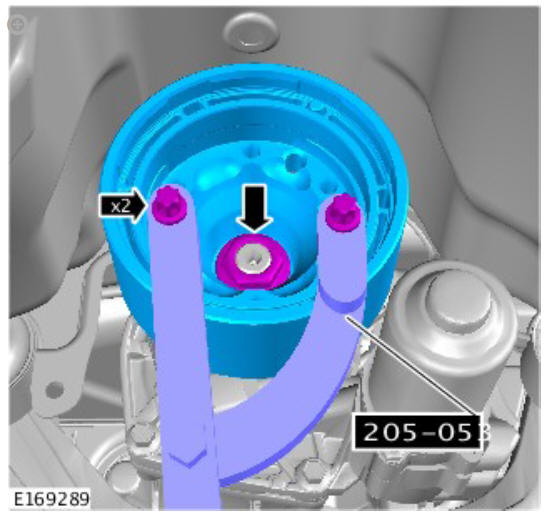

  • Special Tool(s): 205-053

Torque: 150 Nm

CAUTION:

The component must be aligned with the installation markings.

Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Installation

Make sure new Driveshaft bolts are installed.

Torque: 40 Nm

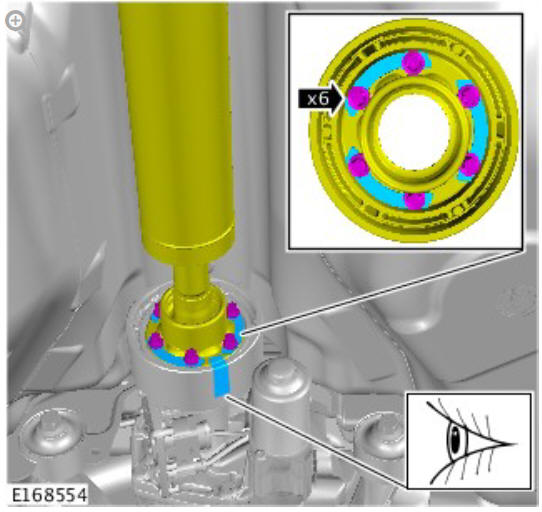

Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Installation

Torque: 25 Nm

Check and top-up the active on-demand coupling fluid level.

Refer to: Active On-Demand Coupling Filling (205-02A Rear Drive Axle/Differential - Vehicles Without: Active Driveline, General Procedures).

Rear drive axle_differential - Vehicles without- Active driveline drive pinion flange - vehicles with- 9HP48 9-speed automatic transmission - AWD (G1775379) Installation

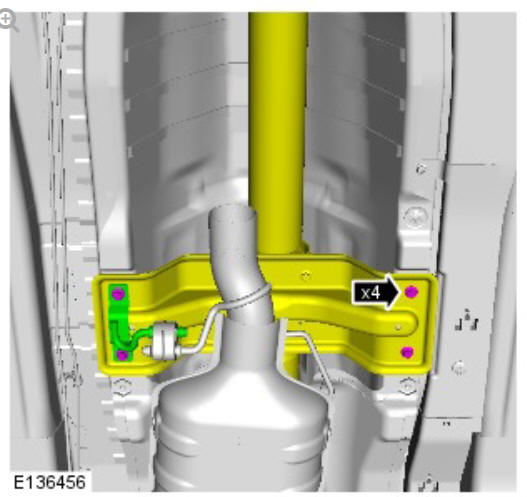

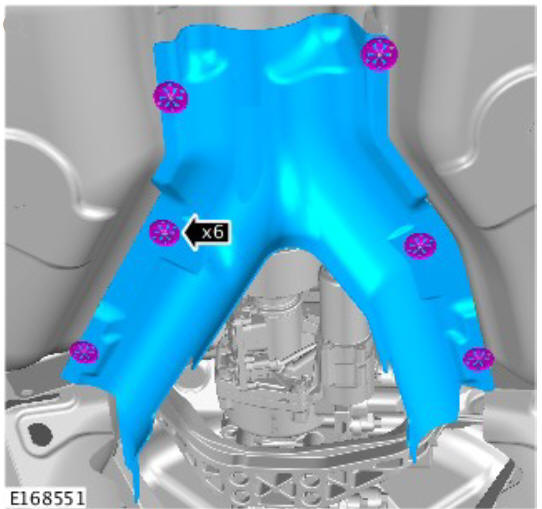

Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).

Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).
