REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

CAUTION:

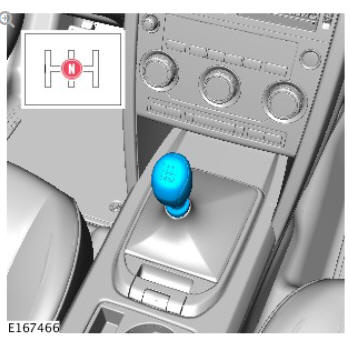

Make sure that Neutral is selected before starting the procedure.

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

Refer to: Air Cleaner (303-12, Removal and Installation).

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

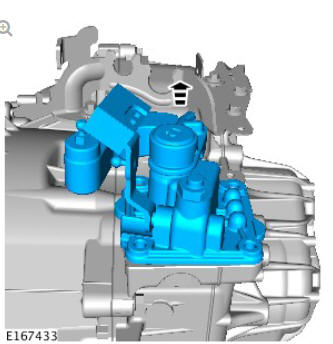

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

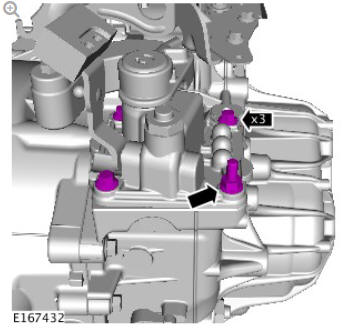

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

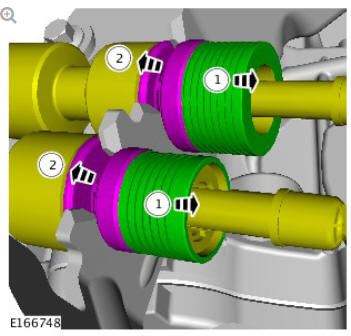

  1. Release the locking ring.

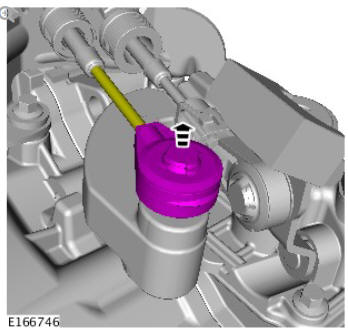

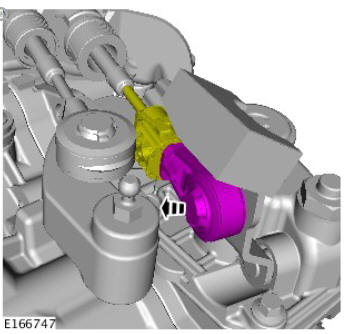

  2. Release the gearshift selector cables.

NOTE:

Note the orientation of the component prior to removal.

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

Torque: 24 Nm

Manual Transmission - Transaxle External Controls Gearshift Linkage (G1781377) / Removal and Installation

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free of corrosion and foreign material.

NOTE:

Apply a suitable amount of approved sealant to one of the mating faces.

To install, reverse the removal procedure.

Refer to: Gearshift Cable Adjustment (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures).
