REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Wheel and Tire (204-04, Removal and Installation).

CAUTION:

Take extra care not to damage the component.

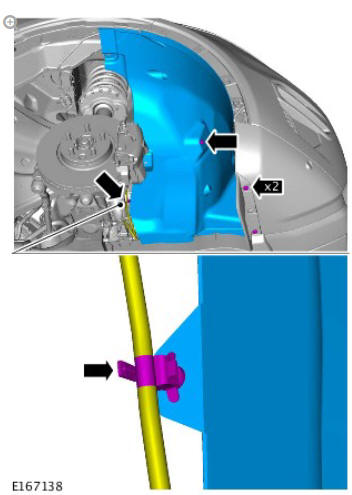

Front end body panels fender splash shield (G1780779) removal and installation

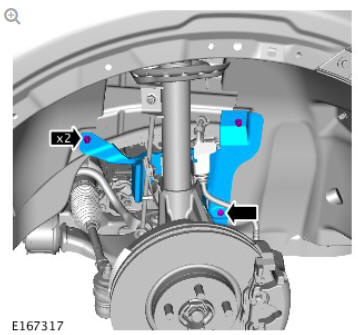

Front end body panels fender splash shield (G1780779) removal and installation

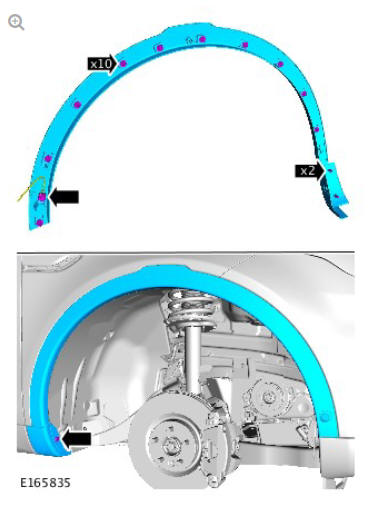

Front end body panels fender splash shield (G1780779) removal and installation

Front end body panels fender splash shield (G1780779) removal and installation

INSTALLATION

To install, reverse the removal procedure.
