Land Rover Discovery: Front Row Seat Control Switchpack (G1780397) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Front Row Seat Control Switchpack (G1780397) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Front Seat - Vehicles With: Power Seats (501-10, Removal and Installation).

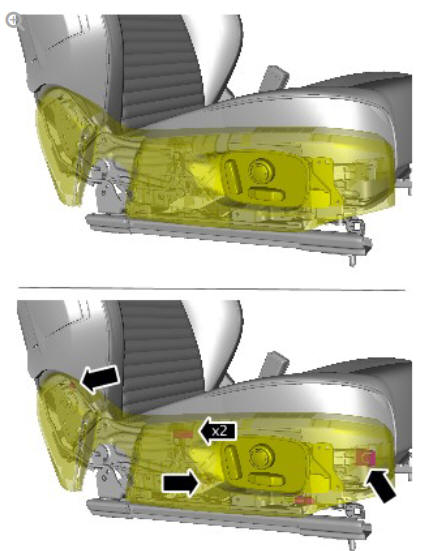

Front row seat control switchpack (G1780397) removal and installation

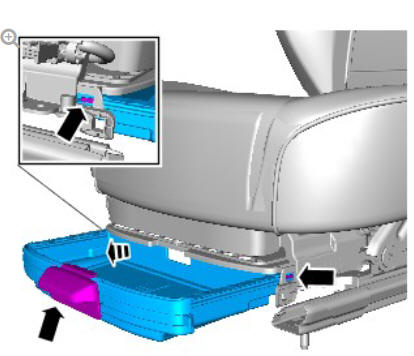

Front row seat control switchpack (G1780397) removal and installation

NOTE:

LH illustration shown, RH is similar.

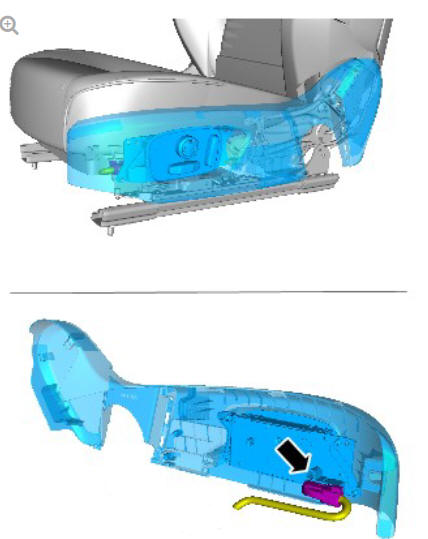

Front row seat control switchpack (G1780397) removal and installation

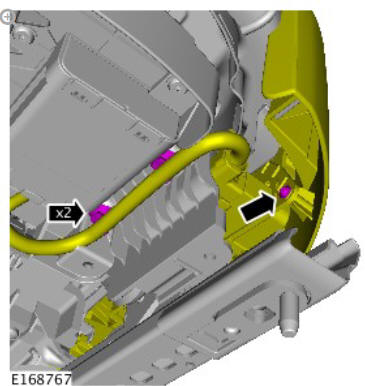

Front row seat control switchpack (G1780397) removal and installation

NOTE:

RH illustration shown, LH is similar.

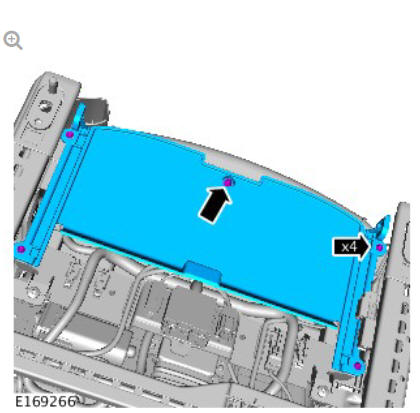

Front row seat control switchpack (G1780397) removal and installation

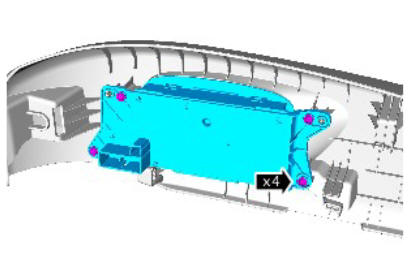

Front row seat control switchpack (G1780397) removal and installation

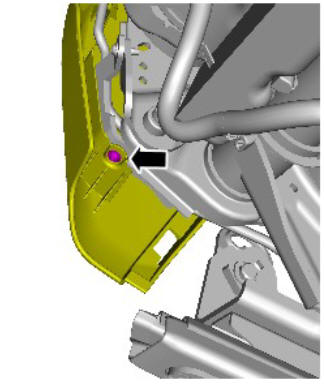

Front row seat control switchpack (G1780397) removal and installation

INSTALLATION

To install, reverse the removal procedure
