Land Rover Discovery: Front Row Seat
Track - Vehicles with- power
Seats (G1780408) / Removal and
Installation
REMOVAL
WARNINGS:
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Refer to: Front Seat - Vehicles With: Power Seats (501-10, Removal
and Installation).

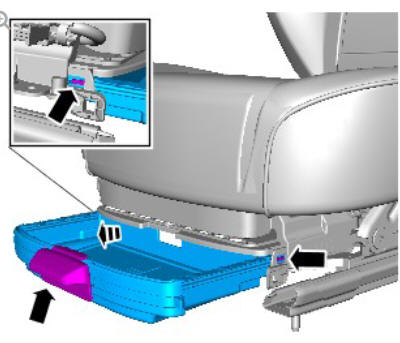

.61.jpg)
.62.jpg)
.63.jpg)
.64.jpg)

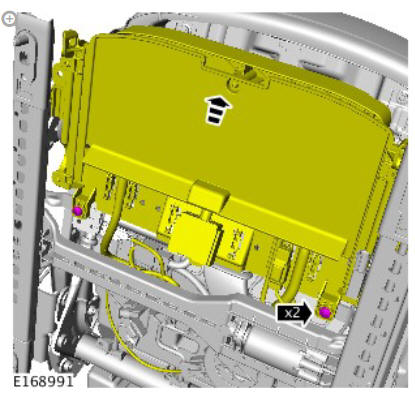

.65.jpg)
Torque: 6 Nm

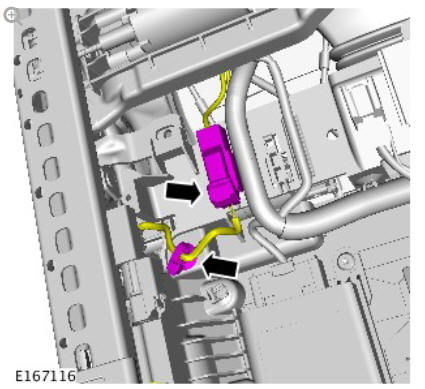

.66.jpg)

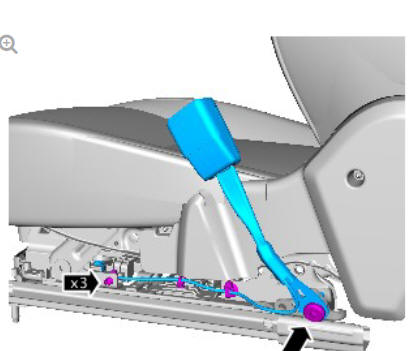

.67.jpg)
Torque: 35 Nm
NOTE:
LH illustration shown, RH is similar.

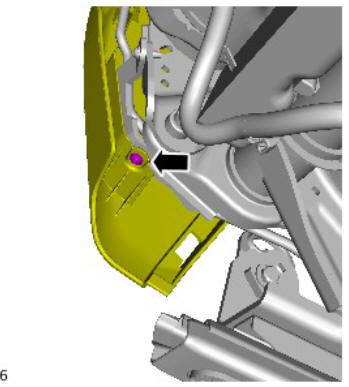

.68.jpg)

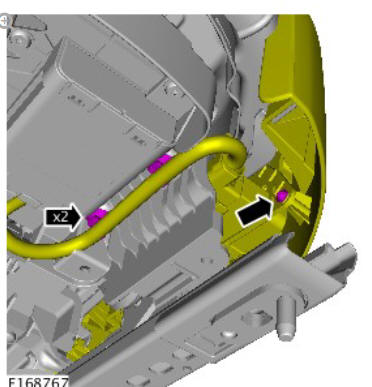

.69.jpg)

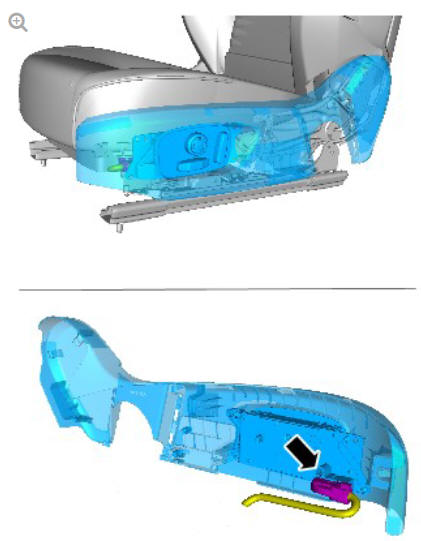

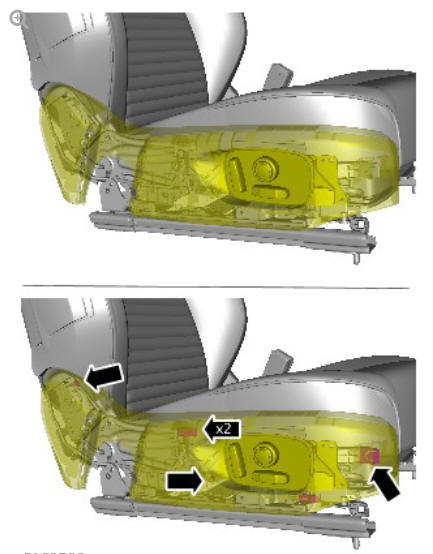

.70.jpg)
NOTE:
LH illustration shown, RH is similar.
.71.jpg)
.72.jpg)

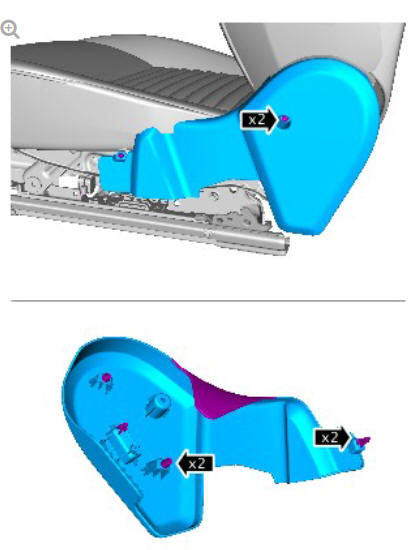

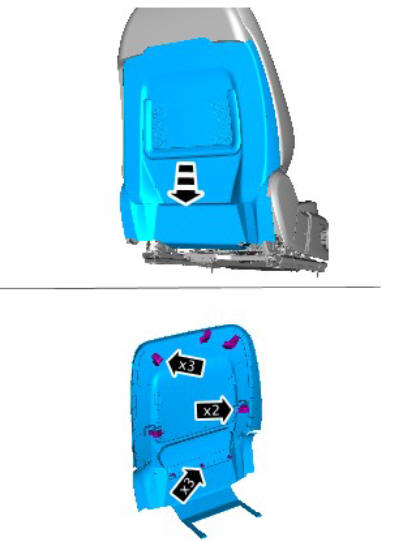

.73.jpg)

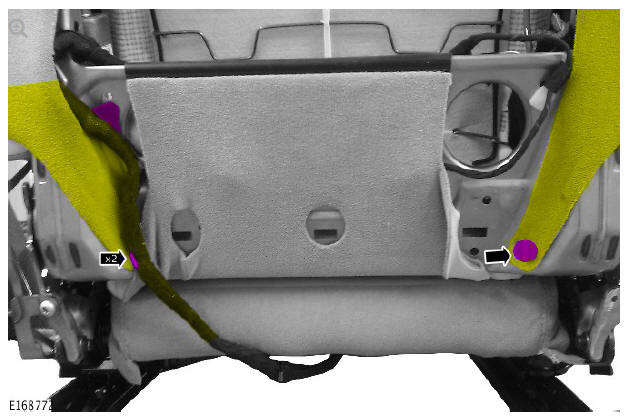

.74.jpg)

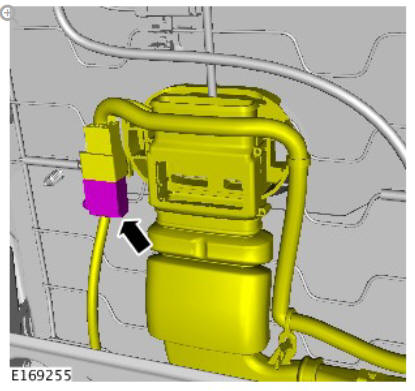

.75.jpg)

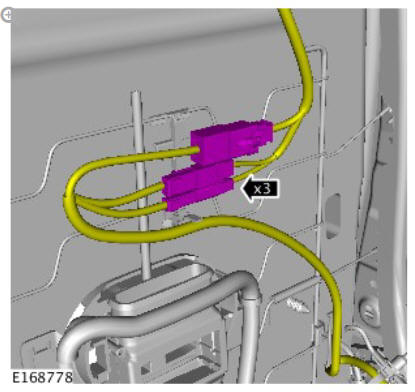

.76.jpg)

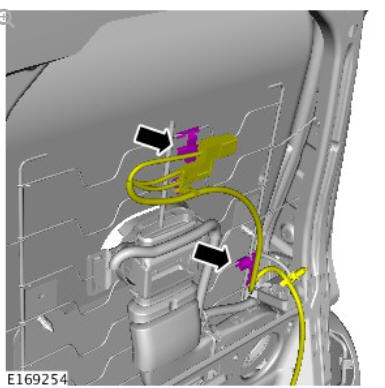

.77.jpg)

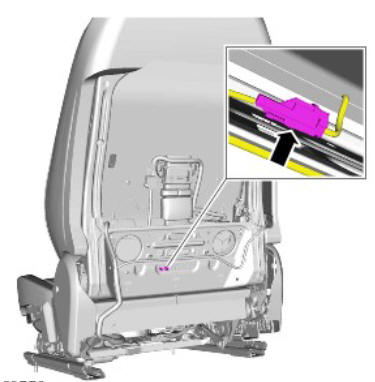

.78.jpg)

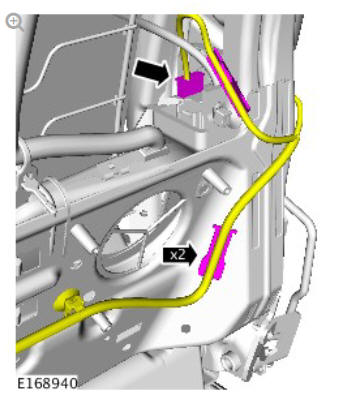

.79.jpg)
WARNINGS:
- Do not probe supplemental restraint system (SRS) electrical
connectors.
- The SRS electrical connectors are unique. DO NOT force,
or attempt to connect electrical connectors to the wrong
sockets.
NOTE:
RH illustration shown, LH is similar.

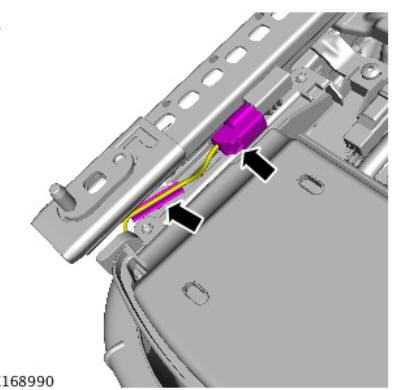

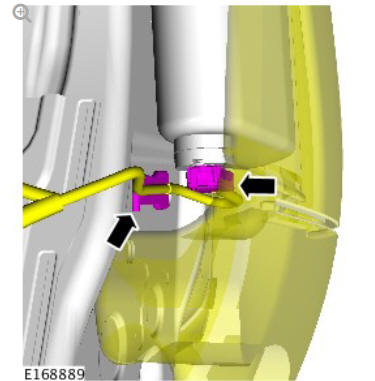

.80.jpg)

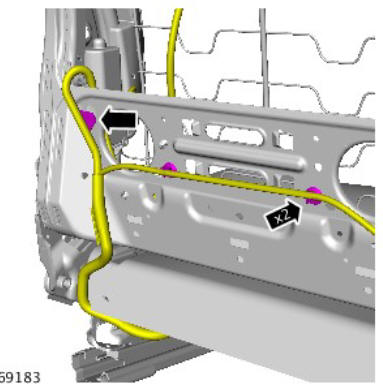

.81.jpg)
NOTE:
The front seat cushion shown removed for clarity.

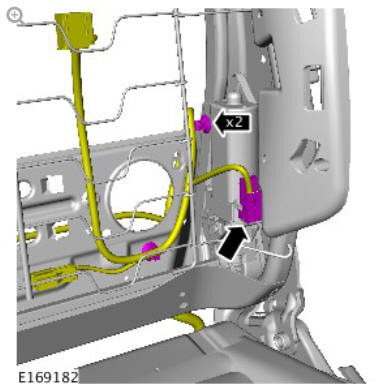

.82.jpg)

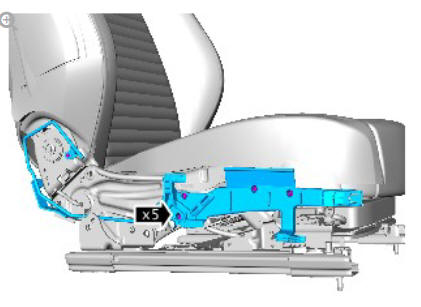

.83.jpg)

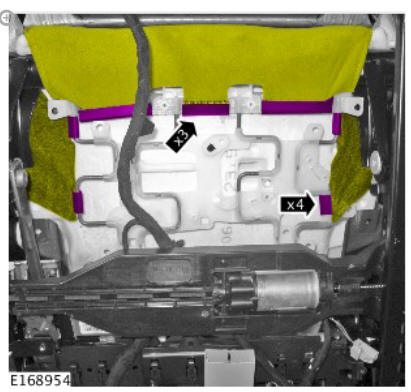

.84.jpg)

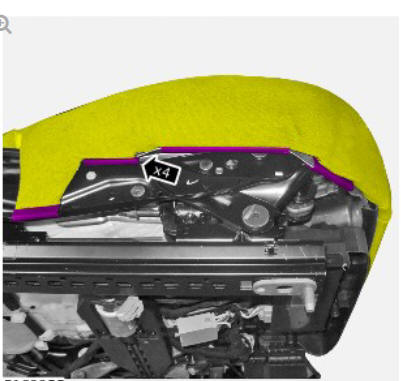

.85.jpg)

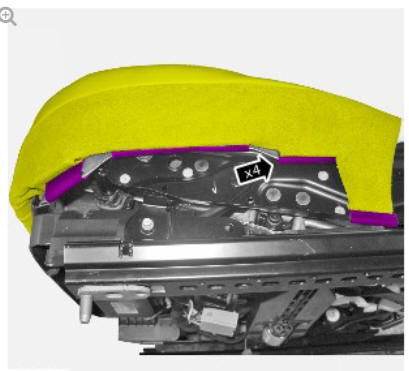

.86.jpg)
.87.jpg)

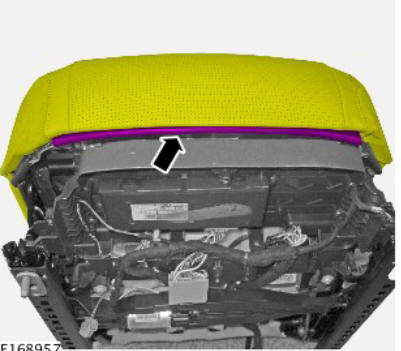

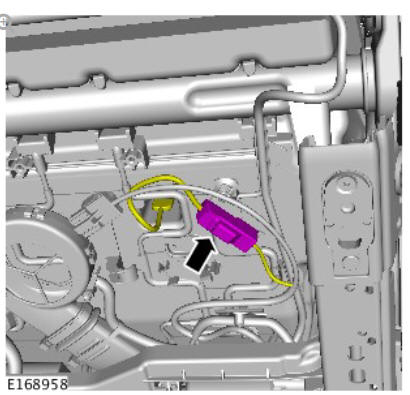

.88.jpg)

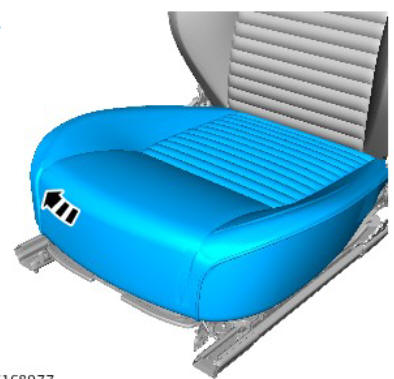

.89.jpg)

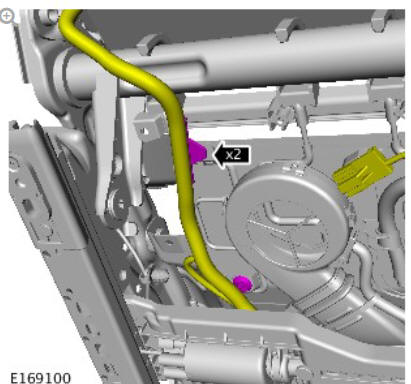

.90.jpg)

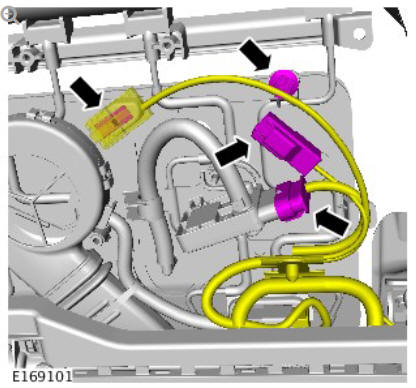

.91.jpg)

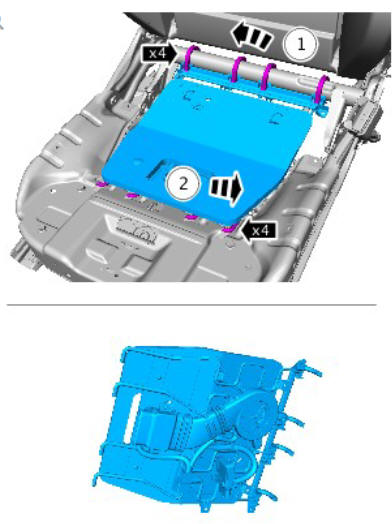

.92.jpg)

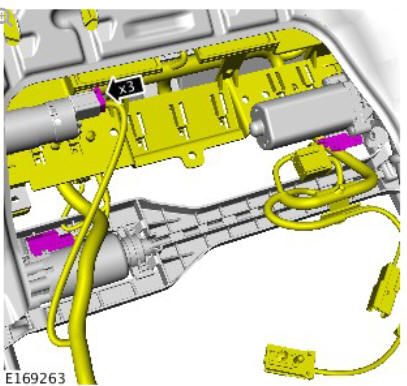

.93.jpg)

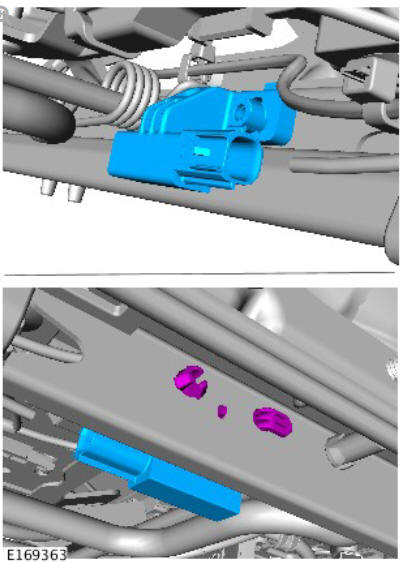

.94.jpg)

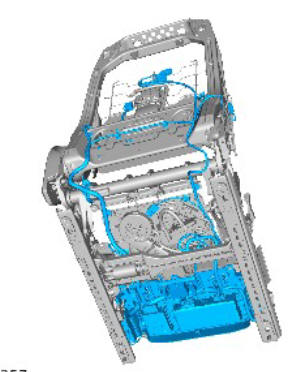

.95.jpg)

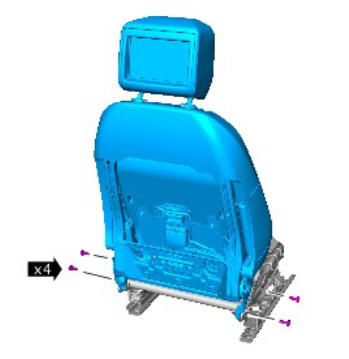

.96.jpg)
Torque: 35 Nm

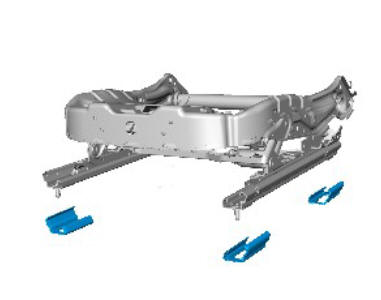

.97.jpg)
INSTALLATION
To install, reverse the removal procedure.
Front seat backrest heater mat - vehicles with- power seats (G1780409)
removal and installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Refer to: Front Seat Backrest Cover - Vehicles With: Power Seats
(501-10, Removal and Installation).

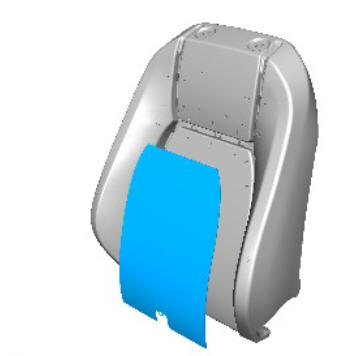

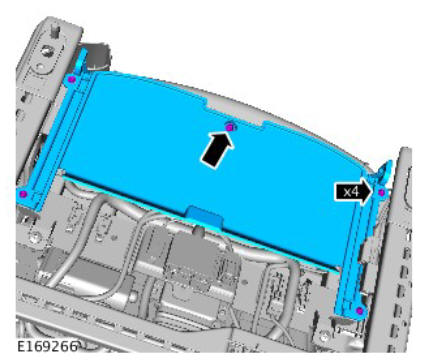

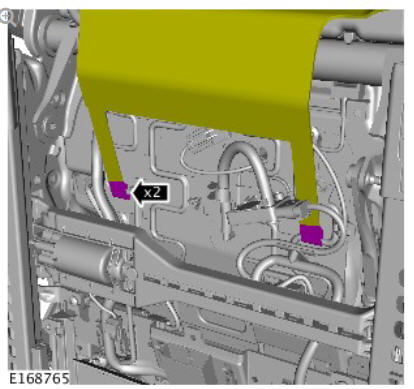

.98.jpg)
INSTALLATION
To install, reverse the removal procedure.
