REMOVAL

WARNINGS:

  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute.

    Failure to follow this instruction may result in personal injury.

  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component.

    Failure to follow this instruction may result in personal injury.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Front Seat - Vehicles With: Power Seats (501-10, Removal and Installation).

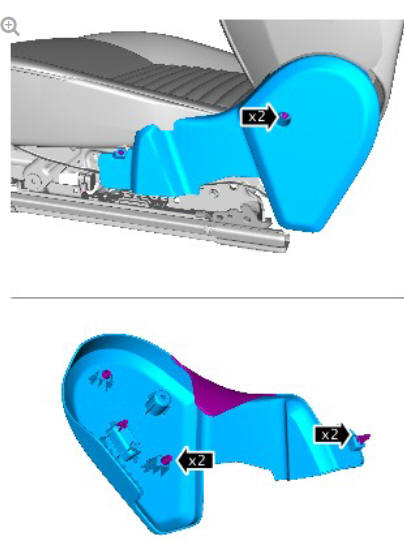

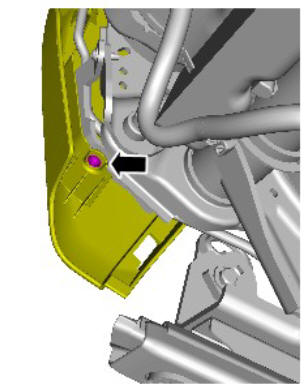

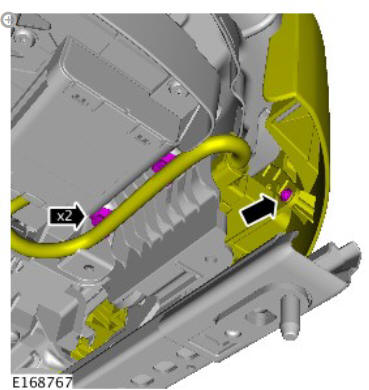

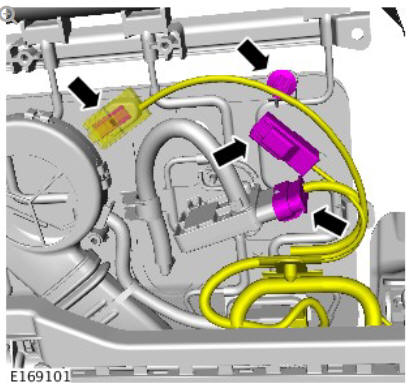

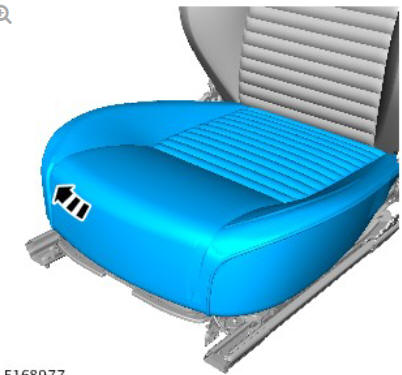

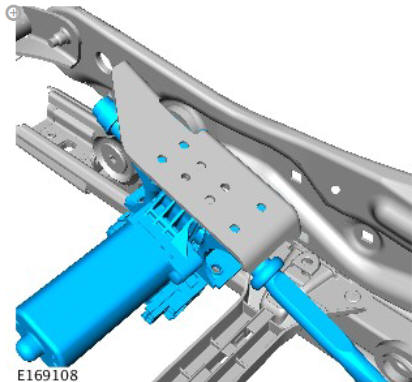

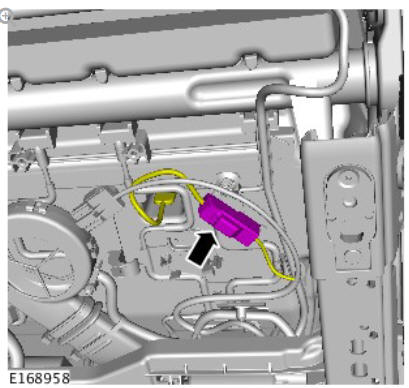

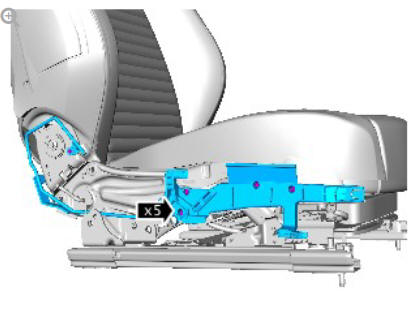

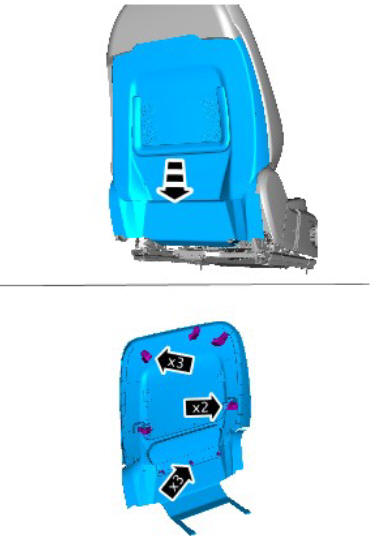

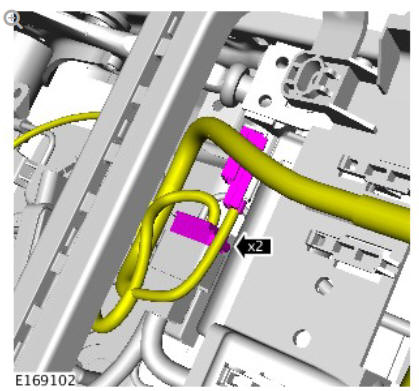

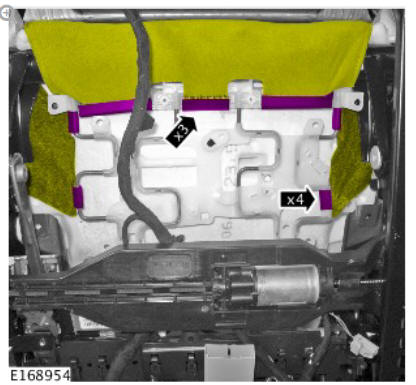

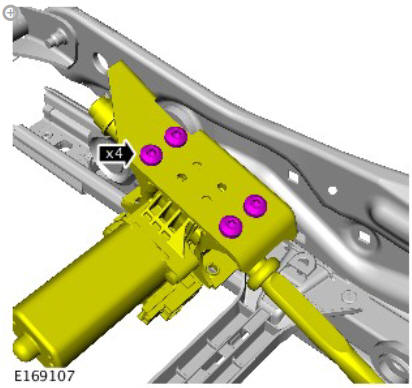

Front seat height adjustment motor (G1780406) removal and installation

If equipped.

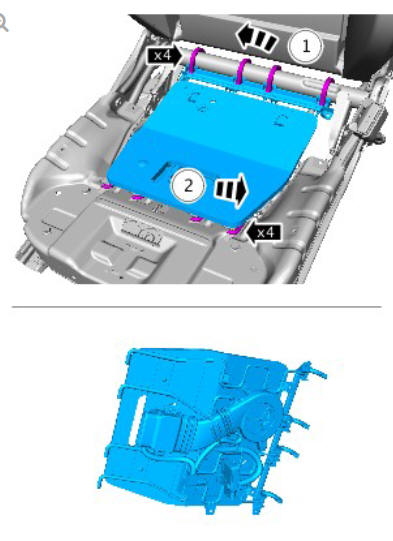

Front seat height adjustment motor (G1780406) removal and installation

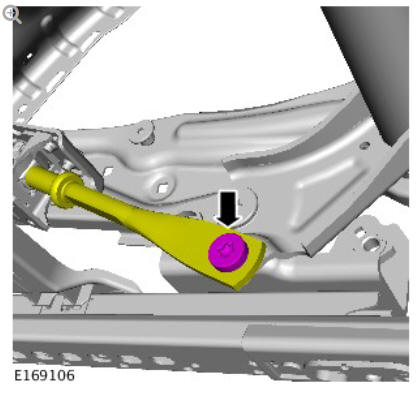

Front seat height adjustment motor (G1780406) removal and installation

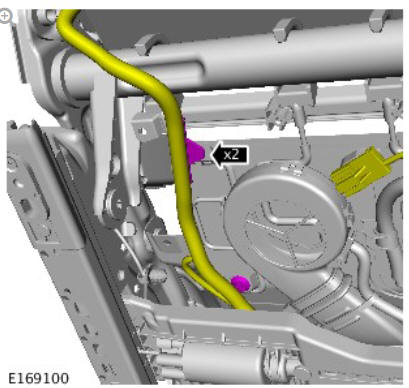

Front seat height adjustment motor (G1780406) removal and installation

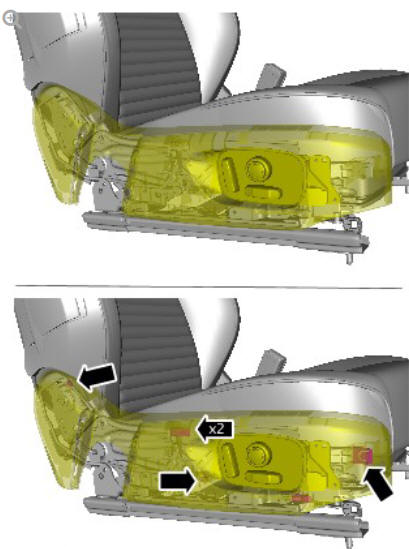

Front seat height adjustment motor (G1780406) removal and installation

Torque: 6 Nm

NOTE:

LH illustration shown, RH is similar.

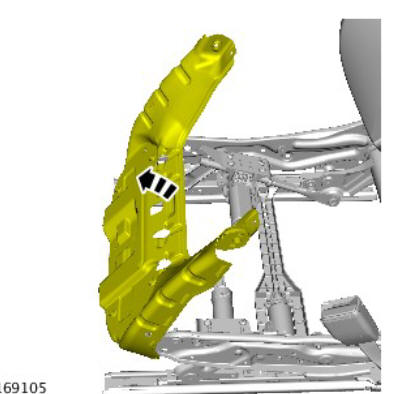

Front seat height adjustment motor (G1780406) removal and installation

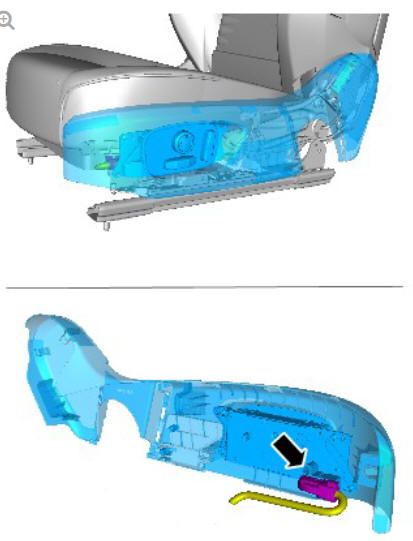

Front seat height adjustment motor (G1780406) removal and installation

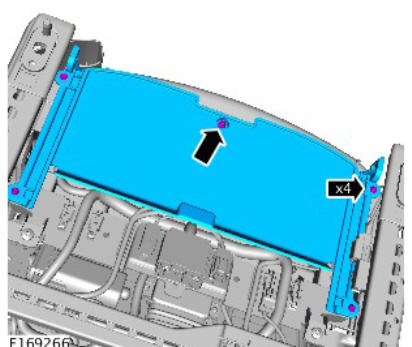

Front seat height adjustment motor (G1780406) removal and installation

NOTE:

LH illustration shown, RH is similar.

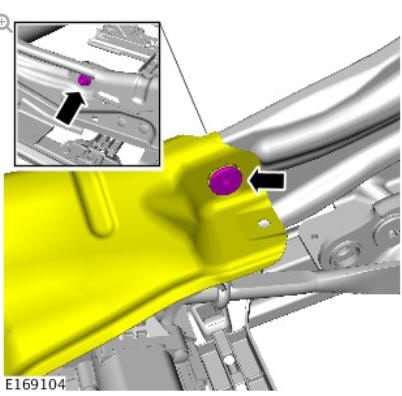

Front seat height adjustment motor (G1780406) removal and installation

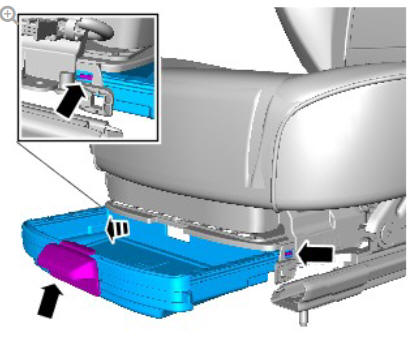

Front seat height adjustment motor (G1780406) removal and installation

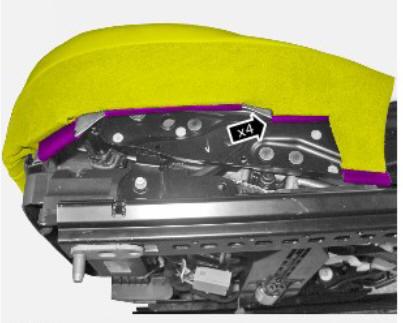

Front seat height adjustment motor (G1780406) removal and installation

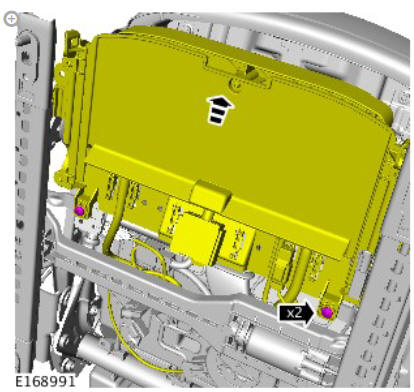

Front seat height adjustment motor (G1780406) removal and installation

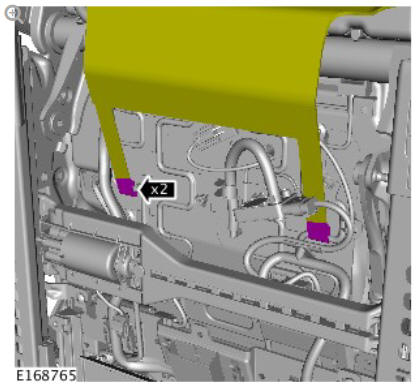

Front seat height adjustment motor (G1780406) removal and installation

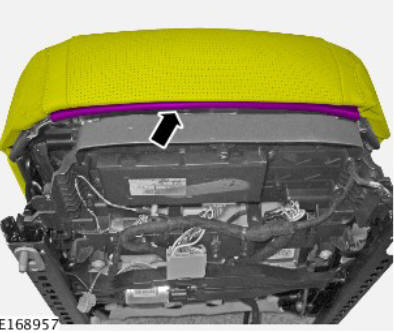

Front seat height adjustment motor (G1780406) removal and installation

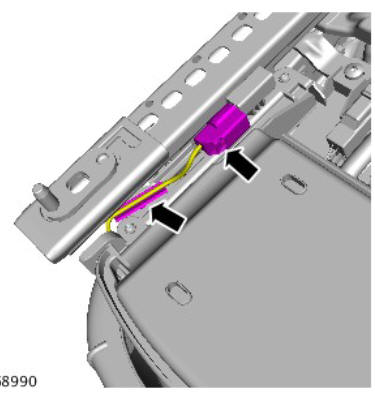

Front seat height adjustment motor (G1780406) removal and installation

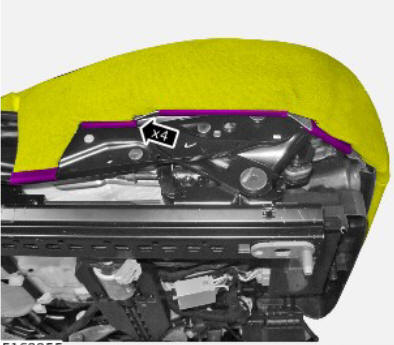

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

CAUTION:

Care must be taken to avoid damaging the surrounding components.

Front seat height adjustment motor (G1780406) removal and installation

NOTE:

Repeat the procedure for the other side.

Front seat height adjustment motor (G1780406) removal and installation

Torque: 8 Nm

Front seat height adjustment motor (G1780406) removal and installation

Front seat height adjustment motor (G1780406) removal and installation

Torque: 28 Nm

Front seat height adjustment motor (G1780406) removal and installation

Torque: 10 Nm

Front seat height adjustment motor (G1780406) removal and installation

INSTALLATION

To install, reverse the removal procedure.
