Land Rover Discovery: Front Seat Track
Motor (G1780401) / Removal and
Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Raise the front seat to the highest position.
Refer to: Front Row Seat - Vehicles With: Power Seats (501-10
Seating, Removal and Installation).

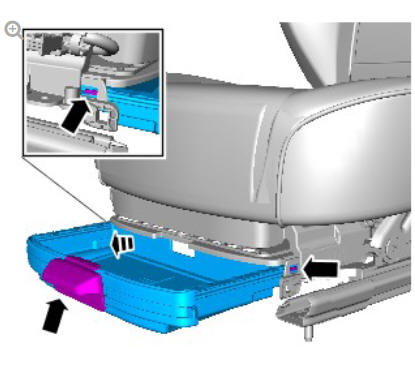

.129.jpg)

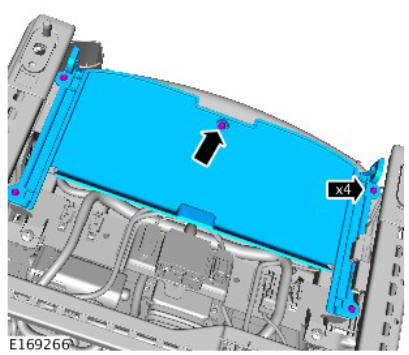

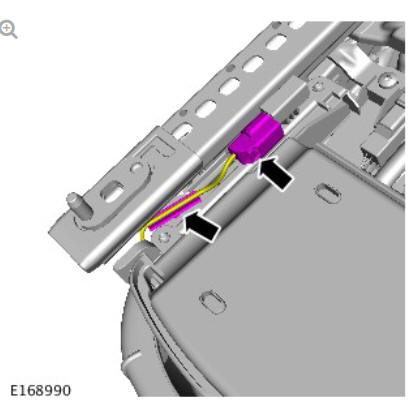

.130.jpg)
.131.jpg)

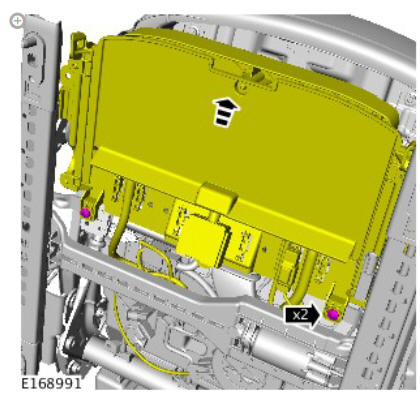

.132.jpg)
Torque: 6 Nm

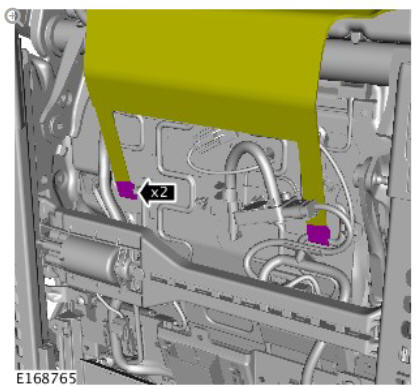

.133.jpg)
NOTE:

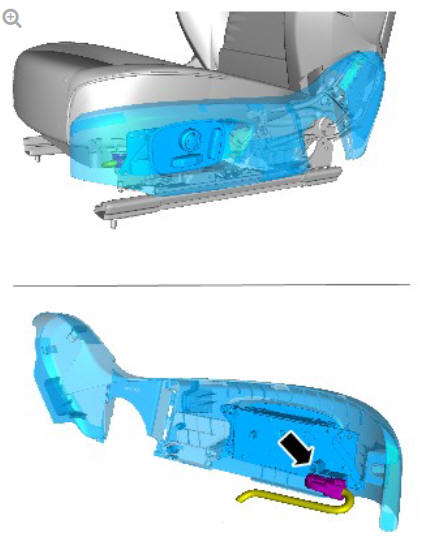

LH illustration shown, RH is similar.

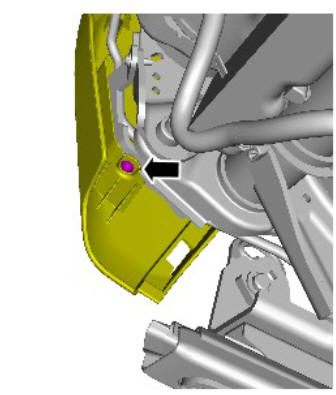

.134.jpg)

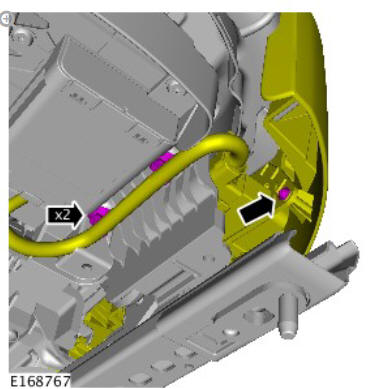

.135.jpg)
NOTE:
LH illustration shown, RH is similar
.136.jpg)
.137.jpg)

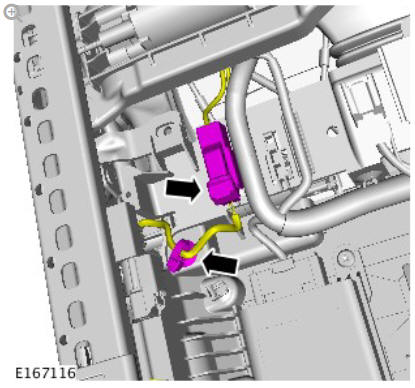

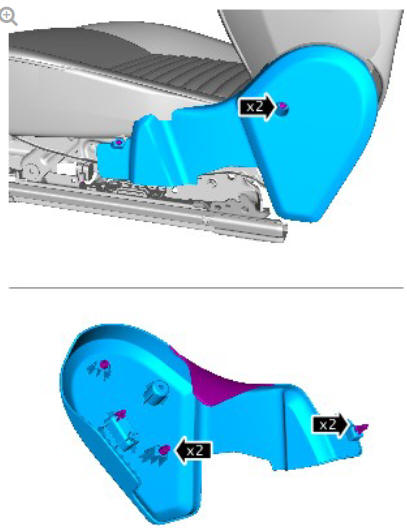

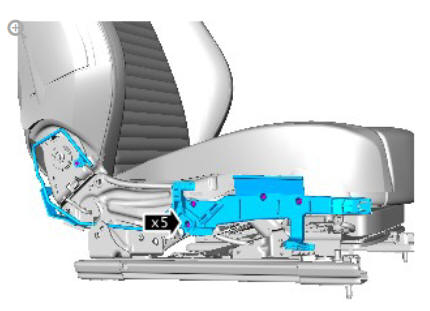

.138.jpg)
.139.jpg)

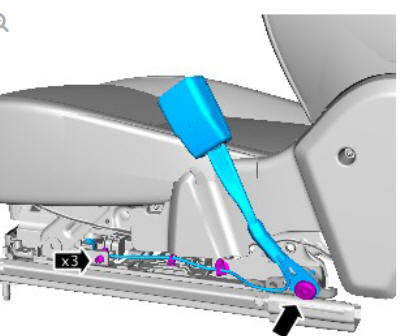

.140.jpg)
Torque: 35 Nm

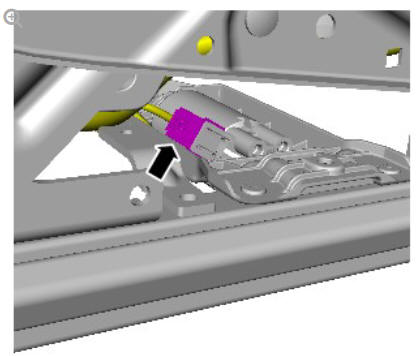

.141.jpg)
NOTE:
The front seat cushion shown removed for clarity.

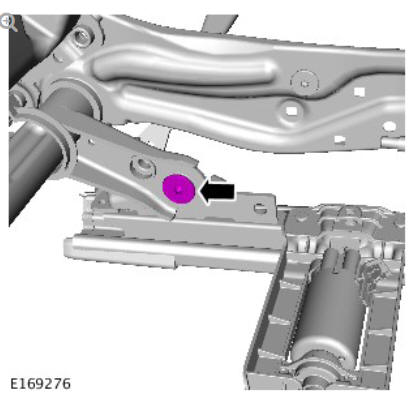

.142.jpg)
Torque: 28 Nm

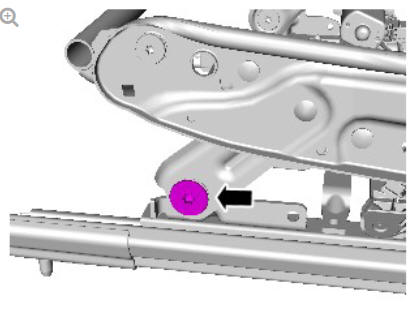

.143.jpg)
Torque: 28 Nm

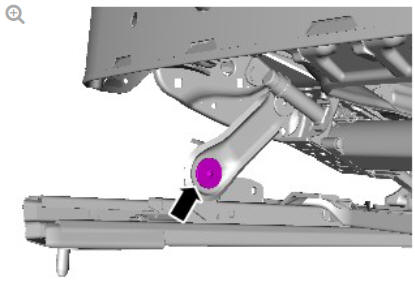

.144.jpg)
Torque: 28 Nm

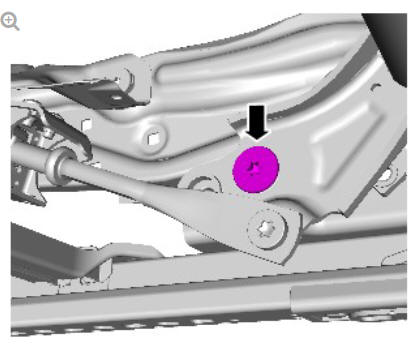

.145.jpg)
Torque: 28 Nm

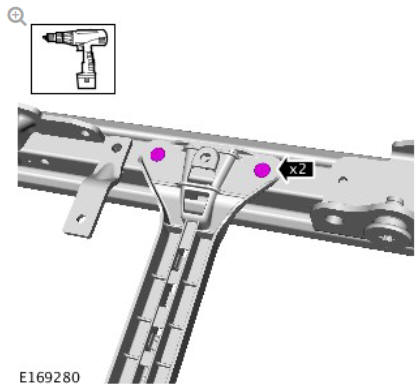

CAUTIONS:
- Make sure that only the head of the fixing is removed. Do
not drill any deeper than necessary. Failure to follow this
instruction may result in damage to the component.
- Make sure that the drilled rivet material does not fall into
the track.
.146.jpg)
CAUTIONS:
- Make sure that only the head of the fixing is removed. Do
not drill any deeper than necessary. Failure to follow this
instruction may result in damage to the component.
- Make sure that the drilled rivet material does not fall into
the track.

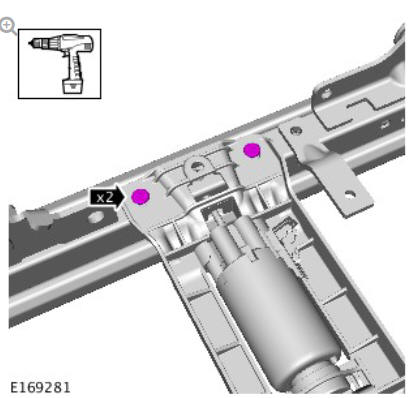

.147.jpg)
NOTE:
Note the orientation of the component prior to removal.

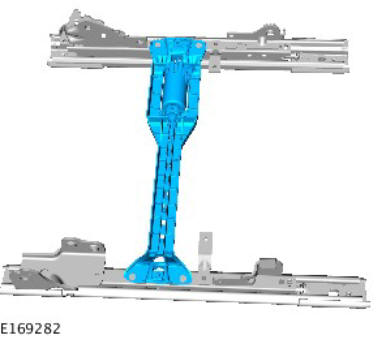

.148.jpg)
NOTE:
Repeat the procedure for the other side.

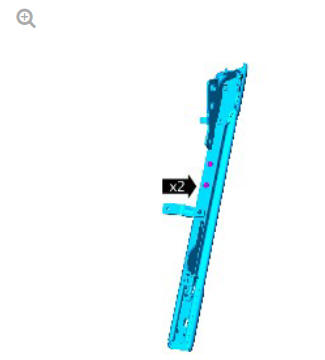

.149.jpg)
Using a suitable tools, remove the old rivets from the seat track.
INSTALLATION
To install, reverse the removal procedure.
