Land Rover Discovery: Rear Suspension Rear Stabilizer Bar Bushing (G1779704) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Rear Suspension Rear Stabilizer Bar Bushing (G1779704) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

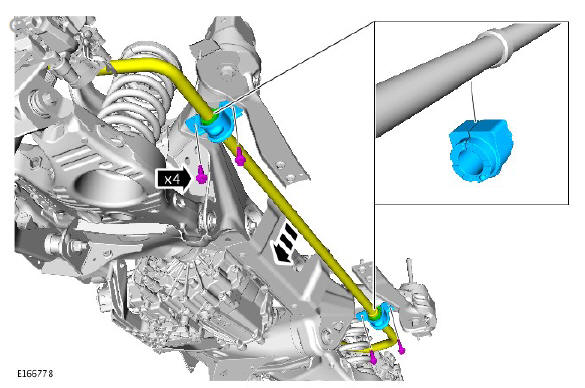

Rear suspension rear stabilizer bar bushing (G1779704) removal and installation

Torque: 60 Nm

INSTALLATION

  1. To install, reverse the removal procedure.

Rear suspension rear stabilizer bar link (G1779705) Removal and installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

WARNING:

Do not work on or under a vehicle supported only by a jack.

Always support the vehicle on safety stands.

Raise and support the vehicle.

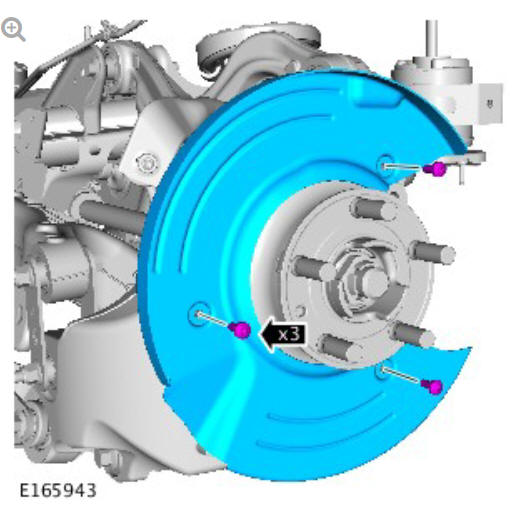

Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

Rear suspension rear stabilizer bar link (G1779705) Removal and installation

Torque: 9 Nm

NOTES:

  • Use an Allen key to prevent the ball joint rotating whilst removing the nut.
  • New nuts must be installed.

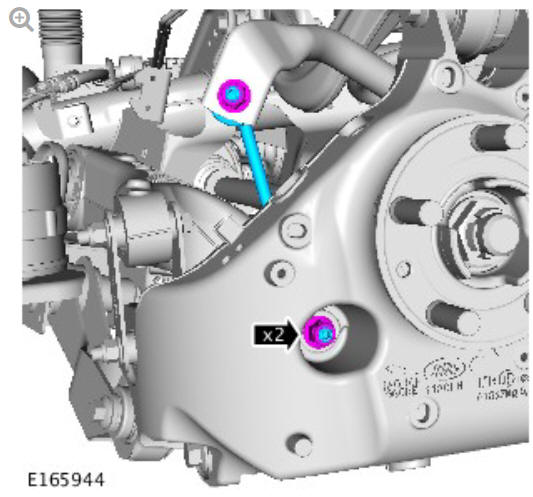

Rear suspension rear stabilizer bar link (G1779705) Removal and installation

Torque: 60 Nm

INSTALLATION

To install, reverse the removal procedure.
