Land Rover Discovery: Rear Suspension Rear Wheel Bearing (G1818219) / Removal and Installation

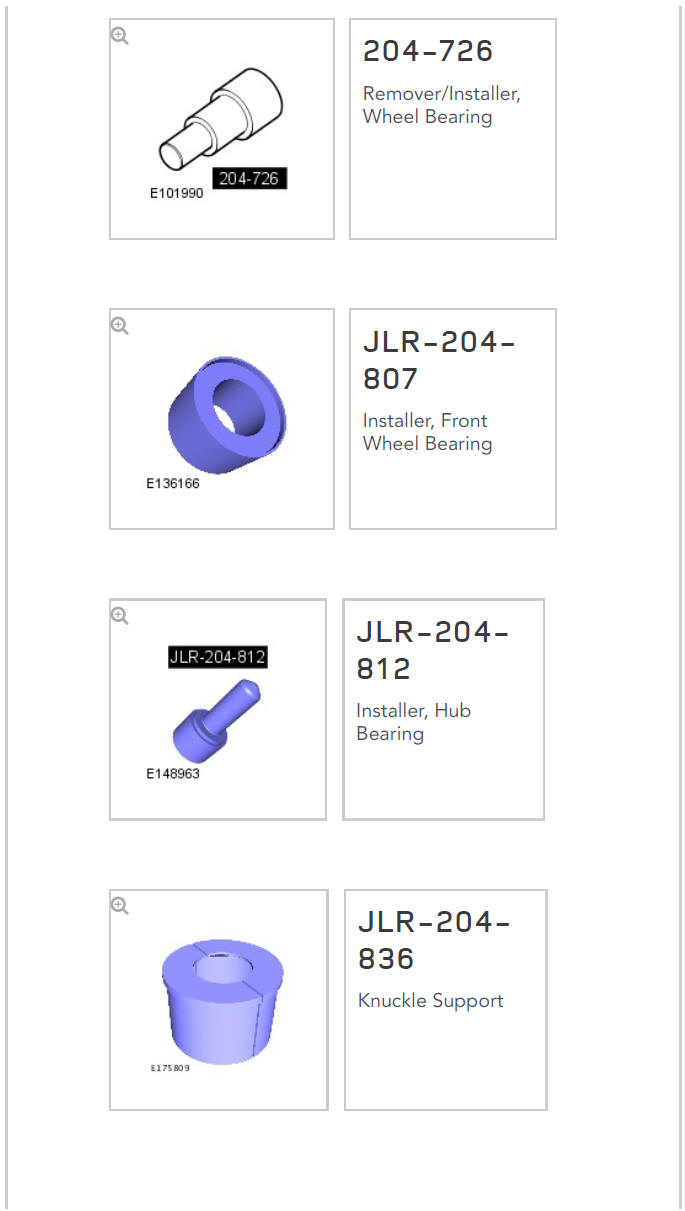

SPECIAL TOOL(S)
.jpg)
.jpg)

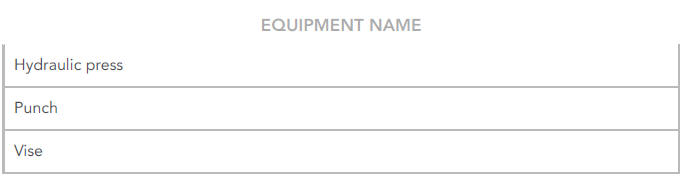

GENERAL EQUIPMENT
.jpg)
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Wheel Knuckle (204-02 Rear Suspension, Removal and Installation).
.jpg)

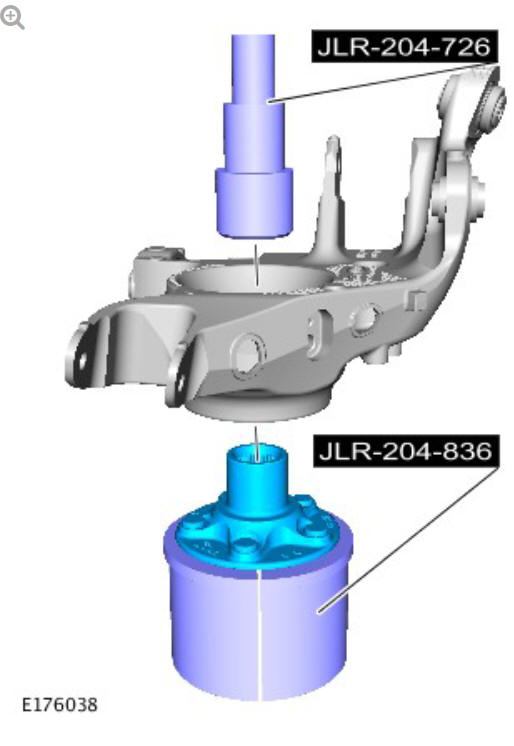

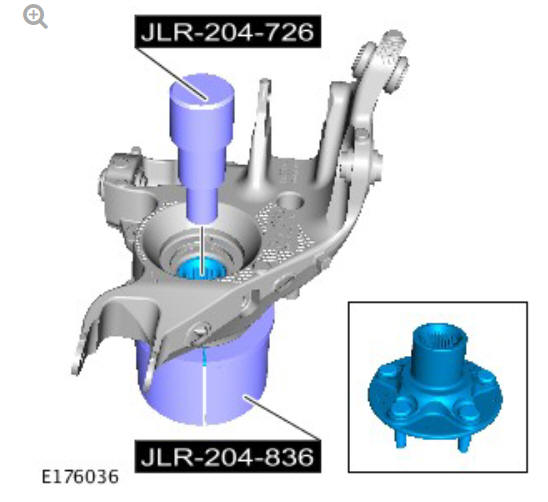

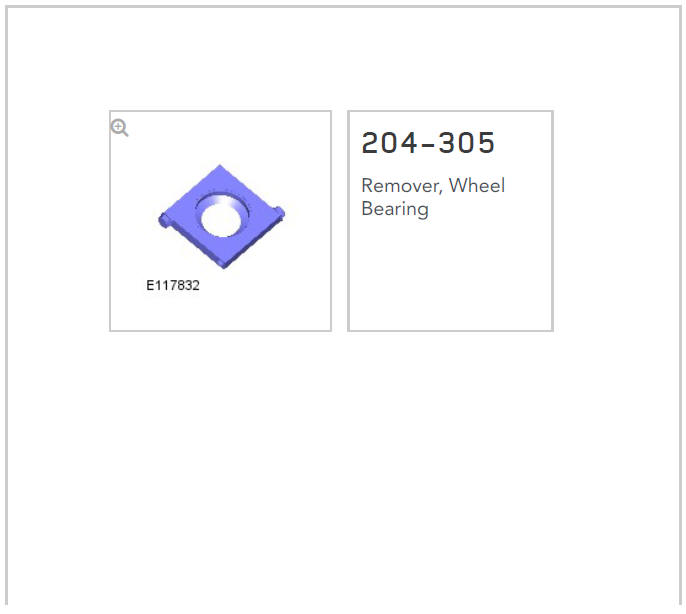

Special Tool(s): 204-726, JLR-204-836
General Equipment: Hydraulic press
.jpg)

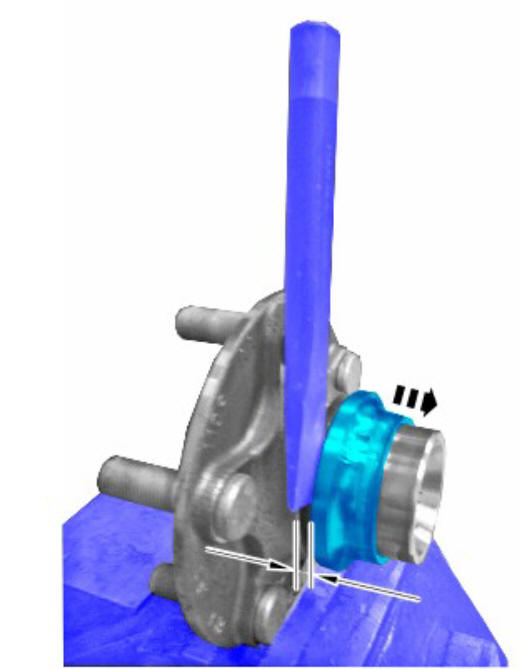

General Equipment: Punch
General Equipment: Vise
.jpg)

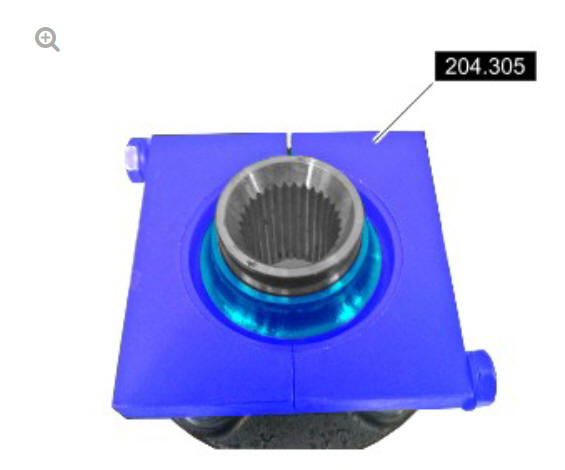

Special Tool(s): 204-305
General Equipment: Hydraulic press
.jpg)

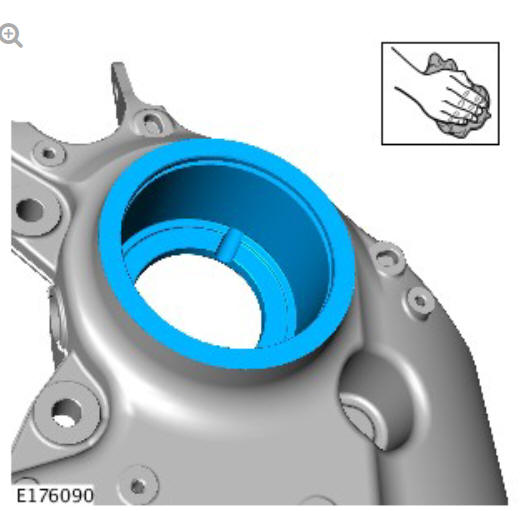

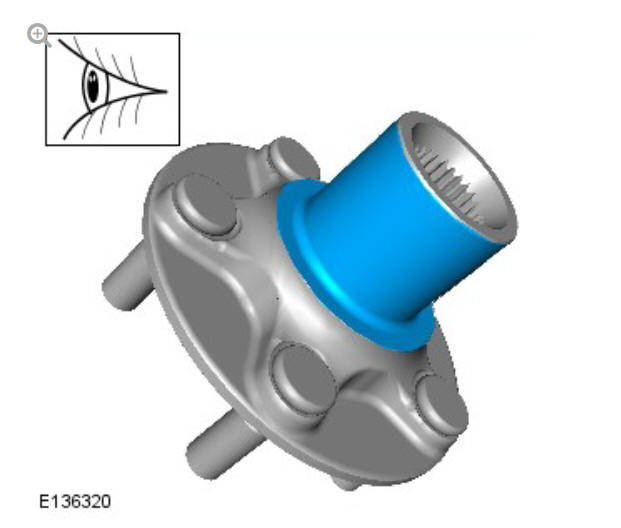

Clean and inspect the components for deterioration.
NOTE:

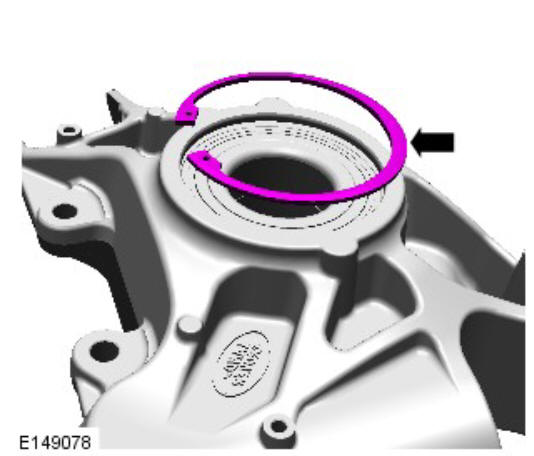

Note the orientation of the clips prior to removal.
.jpg)
NOTE:
Note the orientation of the component prior to removal.
.jpg)
Special Tool(s): 204-726
General Equipment: Hydraulic press
.jpg)
INSTALLATION
CAUTION:
Make sure that these components are installed to the noted removal position.
.jpg)

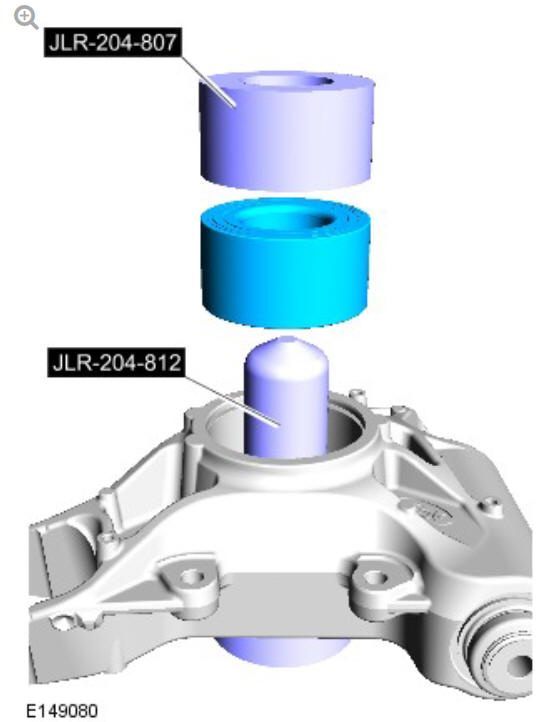

Special Tool(s): JLR-204-807, JLR-204-812
General Equipment: Hydraulic press
CAUTION:
Make sure that these components are installed to the noted removal position.
.jpg)
.jpg)

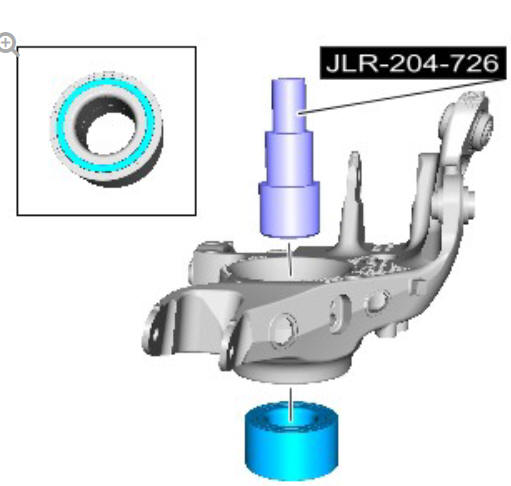

Special Tool(s): 204-726, JLR-204-836
General Equipment: Hydraulic press
Refer to: Wheel Knuckle (204-02 Rear Suspension, Removal and Installation).
Rear Suspension Rear
Stabilizer Bar
Bushing (G1779704) / Removal and
InstallationRear Suspension Spring (G1774680)
/ Removal and Installation
