Land Rover Discovery: Front Suspension Front Stabilizer Bar Bushing (G2028384) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Front Suspension Front Stabilizer Bar Bushing (G2028384) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Only use clean water as a lubricant for the bushing, if required.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the front wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

CAUTION:

Make sure that new nuts and bolts are installed.

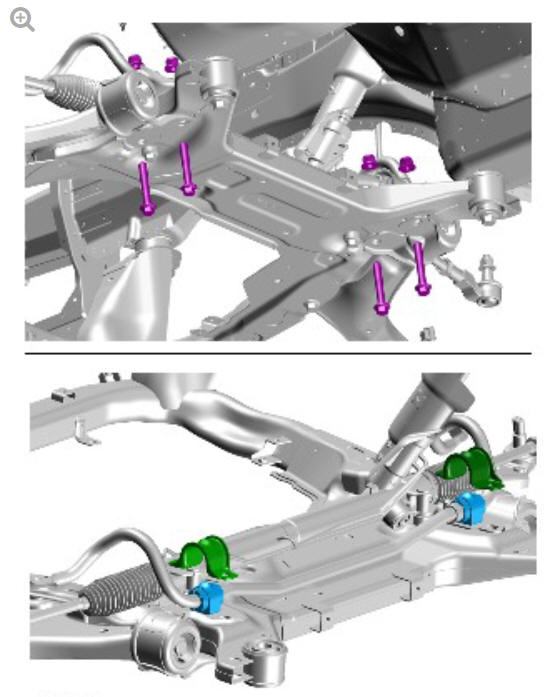

Front suspension front stabilizer bar bushing (G2028384) removal and installation

  1. Front stabilizer bar nut and bolt for vehicles fitted with 18'' brakes:

Torque:

Stage 1: 115 Nm

Stage 2: 240º

  1. Front stabilizer bar nut and bolt for vehicles fitted with 17'' brakes:

Torque: 175 Nm

INSTALLATION

To install, reverse the removal procedure.

Front suspension front stabilizer bar link (G1779641) removal and installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

WARNING:

Make sure that new nuts are installed.

CAUTIONS:

  • Make sure that the ball joint ball does not rotate.
  • Use an Allen key to prevent the ball joint rotating whilst removing the nut.

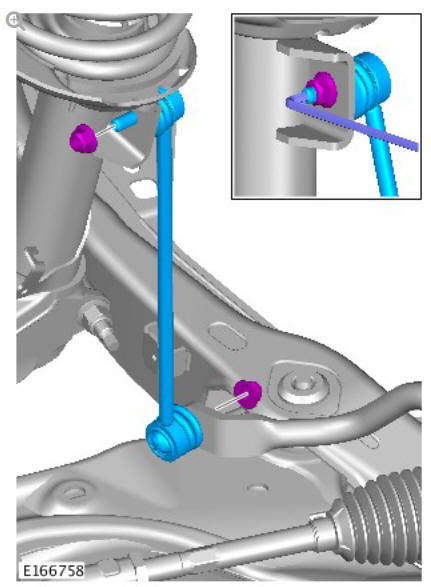

Front suspension front stabilizer bar link (G1779641) removal and installation

Torque:

Stabilizer bar to Stabilizer bar link nut 65 Nm

Stabilizer bar link to Damper nut 70 Nm

INSTALLATION

To install, reverse the removal procedure.
