Land Rover Discovery: Front Suspension Front
Wheel Bearing (G1348362)
/ Removal and Installation

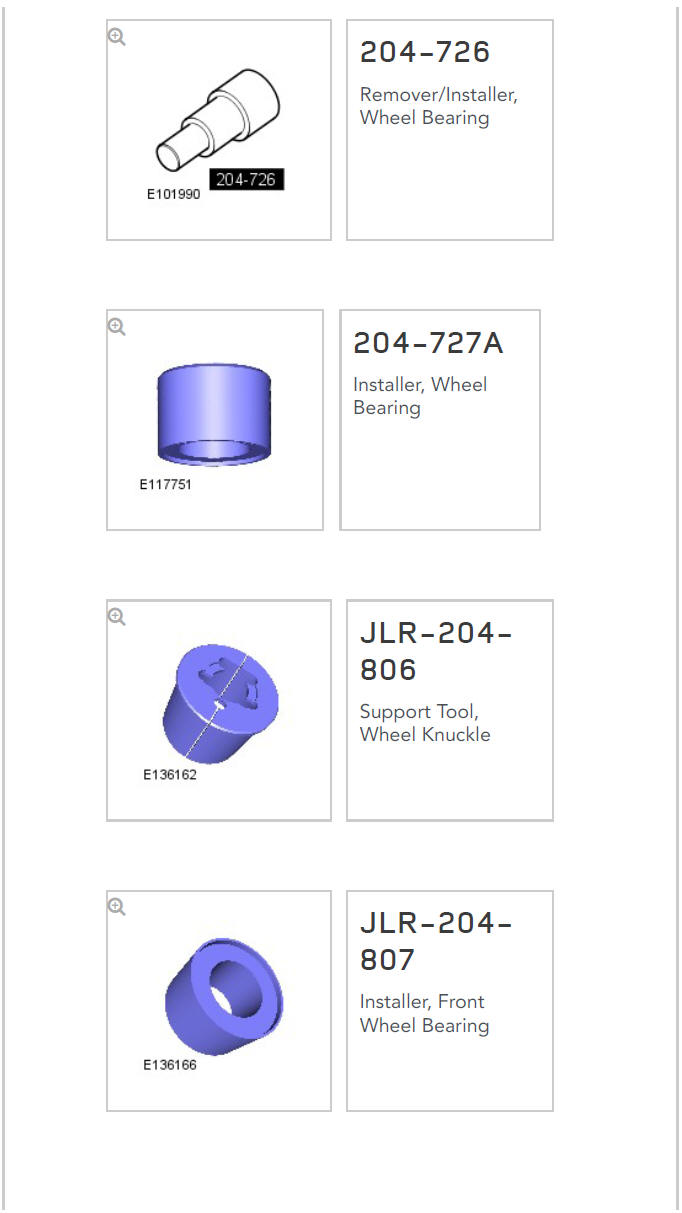

SPECIAL TOOL(S)
.jpg)
.jpg)
.jpg)

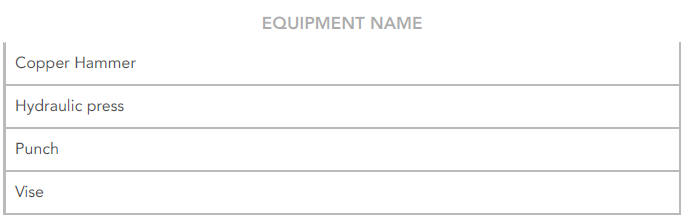

GENERAL EQUIPMENT
.jpg)
REMOVAL
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Wheel Knuckle (204-01 Front Suspension, Removal and
Installation).
.jpg)

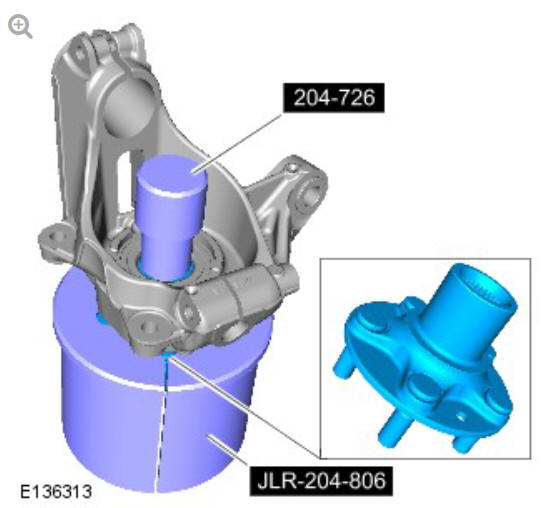

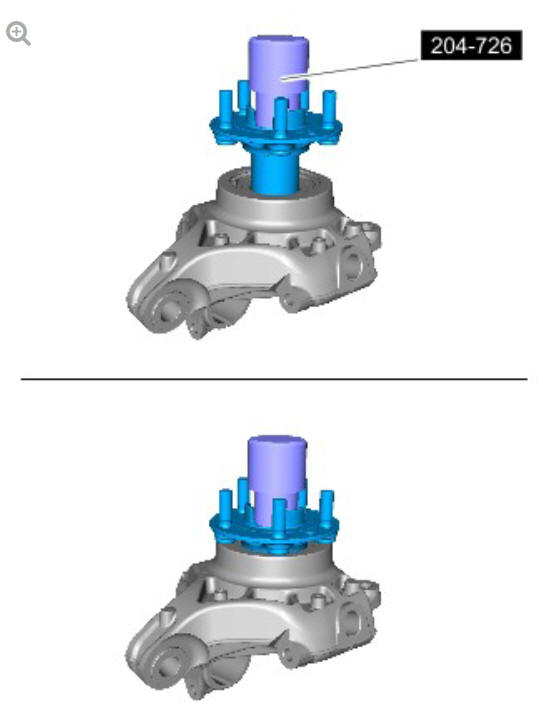

- Special Tool(s): JLR-204-806
- Special Tool(s): 204-726
- General Equipment: Hydraulic press

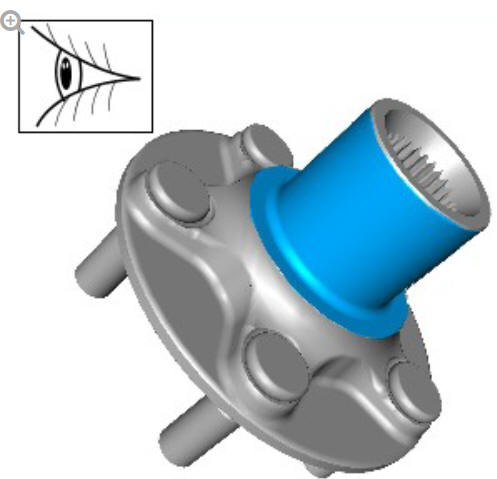

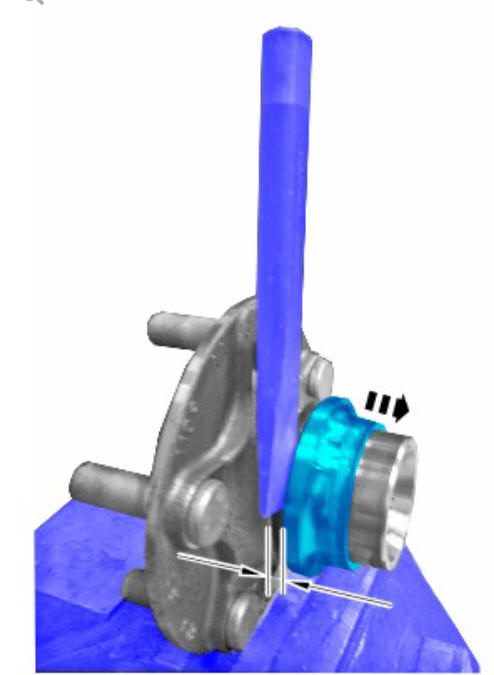

.jpg)
- General Equipment: Vise
- General Equipment: Copper Hammer
- General Equipment: Punch
.jpg)

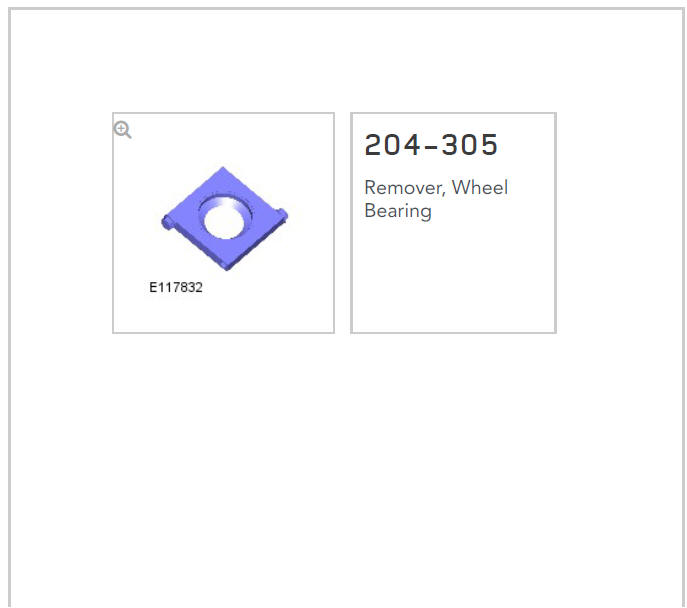

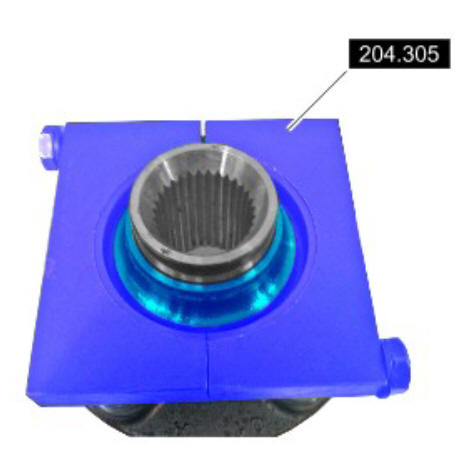

- Special Tool(s): 204-305
- General Equipment: Hydraulic press
.jpg)
Clean all the mating faces and reusable parts thoroughly and check
for damage.

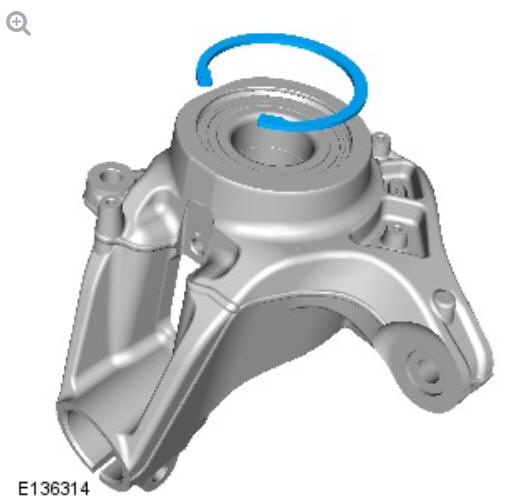

.jpg)

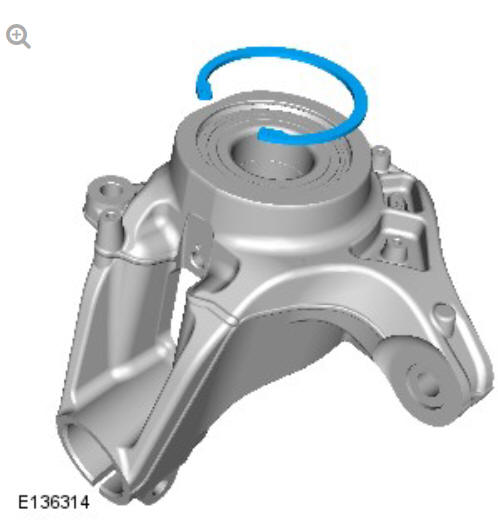

NOTE:
Note the orientation of the component prior to removal.
.jpg)

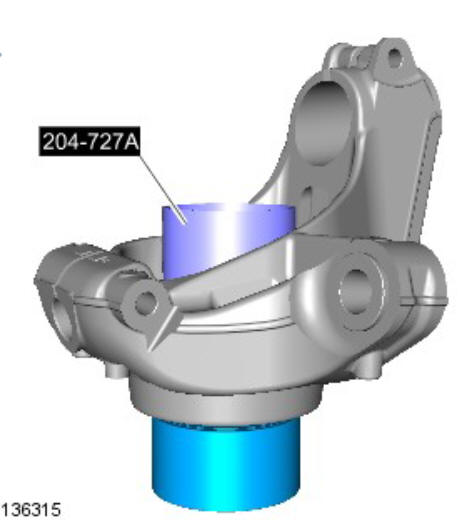

- Special Tool(s): 204-727A
- General Equipment: Hydraulic press
INSTALLATION
CAUTION:
Make sure that the area around the component is clean and
free of foreign material.
NOTE:
Make sure that the component is installed to the noted
removal position.
.jpg)

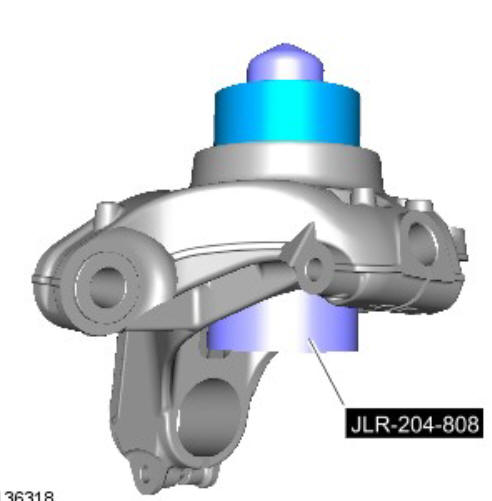

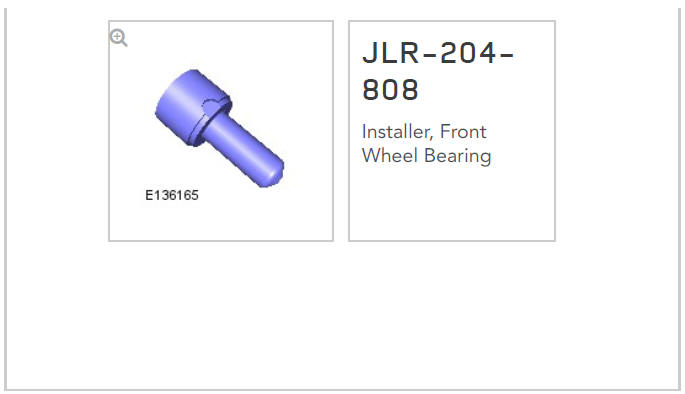

Special Tool(s): JLR-204-808
.jpg)

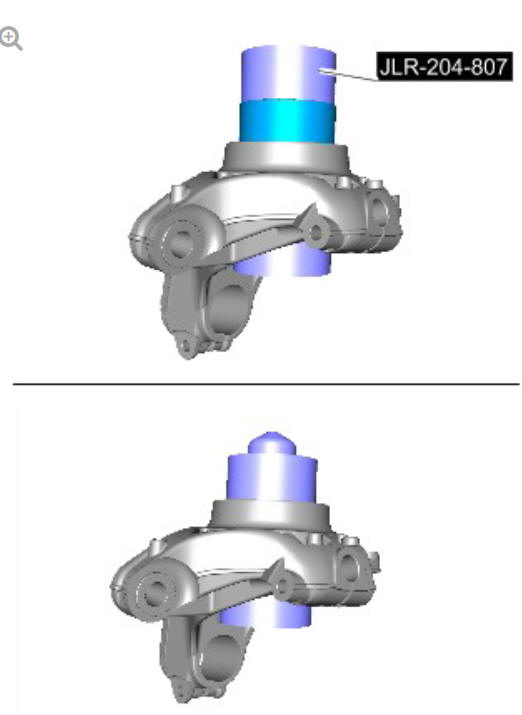

- Special Tool(s): JLR-204-807
- General Equipment: Hydraulic press
.jpg)
.jpg)
- Special Tool(s): 204-726
- General Equipment: Hydraulic press
Refer to: Wheel Knuckle (204-01 Front Suspension, Removal and
Installation).
