REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Left illustration shown, right is similar.

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

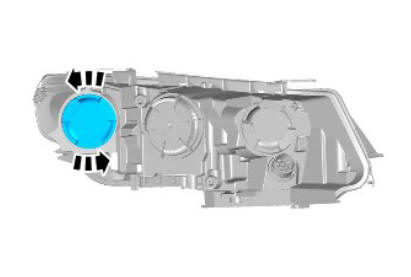

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

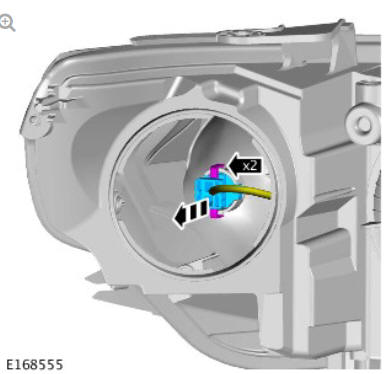

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

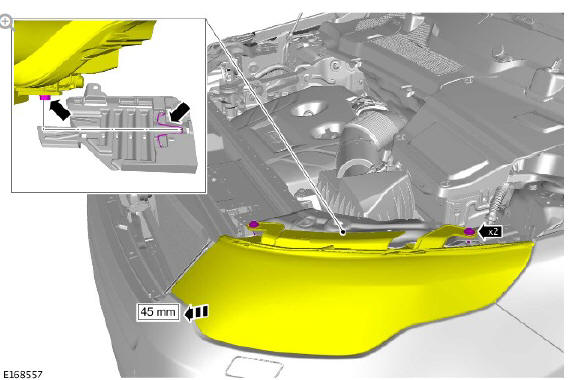

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

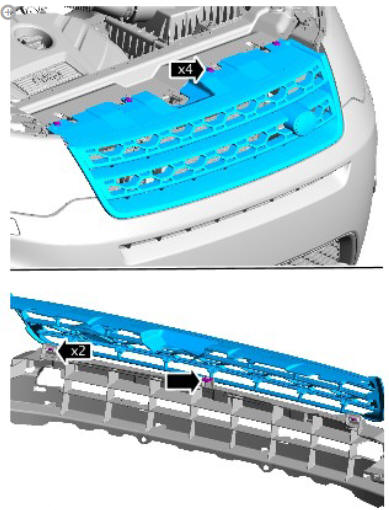

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

Torque: 4 Nm

NOTE:

Component shown removed for clarity.

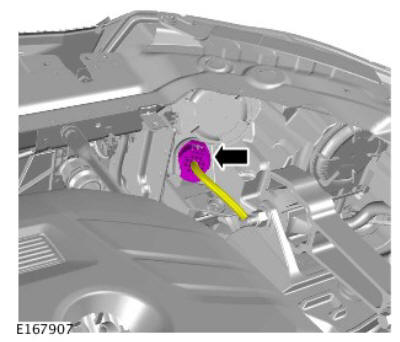

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

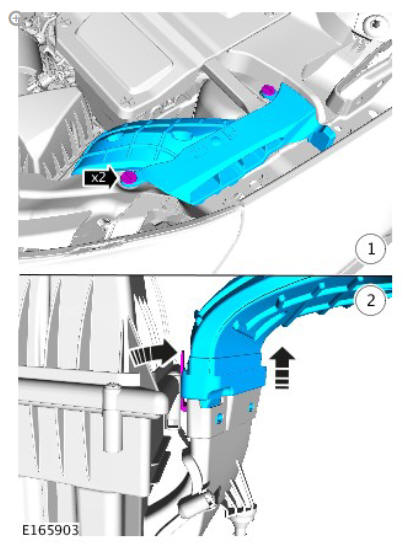

Front Turn Signal Lamp bulb (G1785540) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
