Land Rover Discovery: Fuel Filter (G1879979) / Removal and Installation
REMOVAL
WARNINGS:
- Wait for a minimum of 1 minute after the engine has stopped
before carrying out any repair to the fuel injection system.
- Avoid flames, sparks or lighted substances.
- Place the vehicle in a well ventilated, quarantined area and
arrange
' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION:
Before disconnecting or removing components, ensure the area
around the joint faces and connections are clean. Plug open
connections to prevent contamination.
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
Refer to: Diesel Fuel System Health and Safety Precautions (100-00
General Information, Description and Operation).
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
CAUTION:
Be prepared to collect escaping fuel.

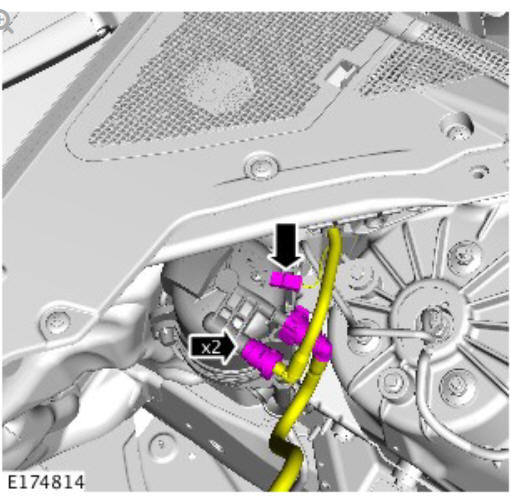

.jpg)

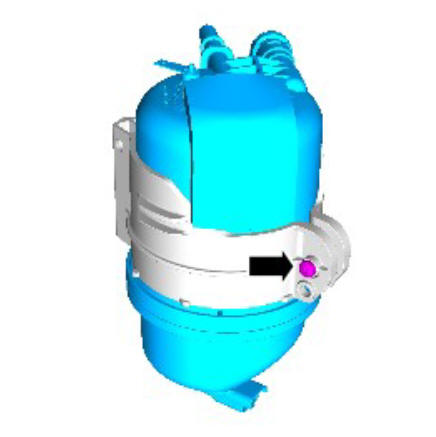

.jpg)

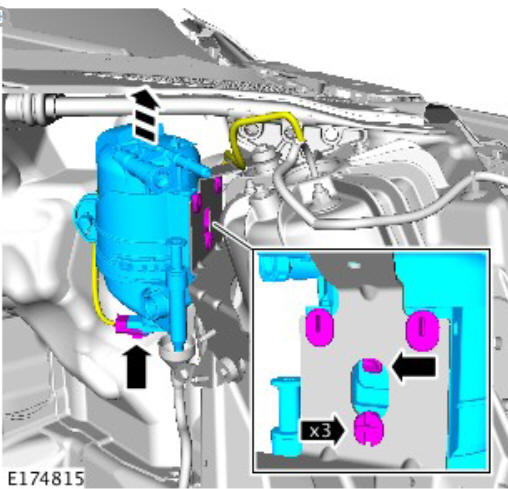

.jpg)
NOTE:
Do not disassemble further if the component is removed for
access only.

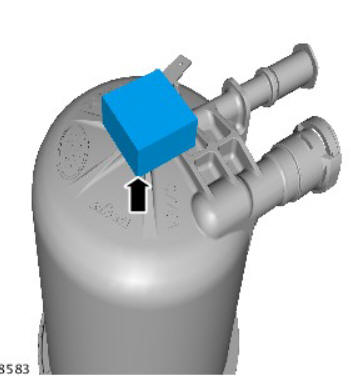

.jpg)
Remove and discard the fuel filter foam pad.
INSTALLATION
- To install, reverse the removal procedure.
- Refer to: Fuel System Bleeding - INGENIUM I4 2.0L Diesel (310-00
Fuel System - General Information, General Procedures).
