REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Remove the front left fender splash shield.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

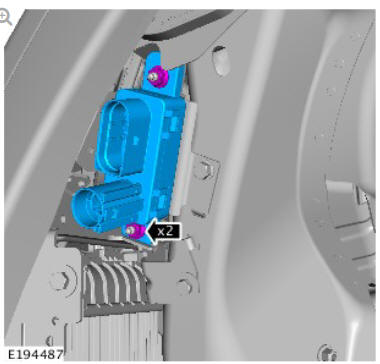

Glow Plug System - Ingenium i4 2.0l Diesel Glow Plug Module (G1999588) Removal and Installation

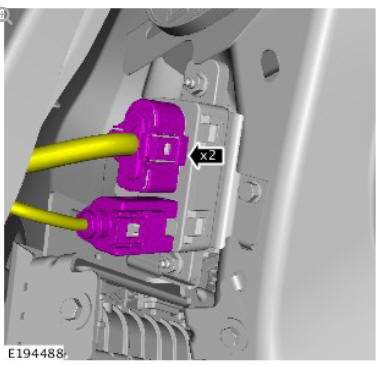

Glow Plug System - Ingenium i4 2.0l Diesel Glow Plug Module (G1999588) Removal and Installation

Torque: 10 Nm

INSTALLATION

To install, reverse the removal procedure.

Glow Plug System - Ingenium i4 2.0l Diesel Glow Plugs (G1949796) Removal and Installation

REMOVAL

CAUTION:

Extreme cleanliness must be exercised when handling these components.

NOTE:

Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Radiator (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, Removal and Installation).

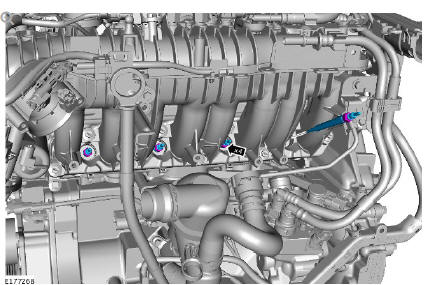

Glow Plug System - Ingenium i4 2.0l Diesel Glow Plugs (G1949796) Removal and Installation

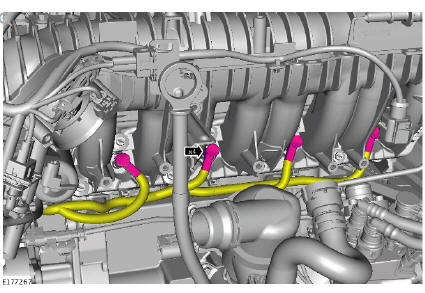

Disconnect the glow plug wires.

CAUTIONS:

  • Make sure not to interchange the glow plugs between cylinders during service of the engine. If one or more glow plugs have to be removed from the engine, make sure that they're clearly labelled with the cylinder number, so that they are not mixed up during installation into the engine.
  • Make sure that the area around the component is clean and free of foreign material.
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Glow Plug System - Ingenium i4 2.0l Diesel Glow Plugs (G1949796) Removal and Installation

Torque: 18 Nm

INSTALLATION

CAUTION:

Make sure not to interchange the glow plugs between cylinders during service of the engine. If one or more glow plugs have to be removed from the engine, make sure that they're clearly labelled with the cylinder number, so that they are not mixed up during installation into the engine.

To install, reverse the removal procedure.

If new components have been installed, configure using Land Rover approved diagnostic equipment.
