Land Rover Discovery: Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

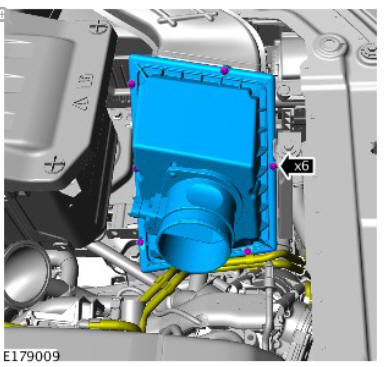

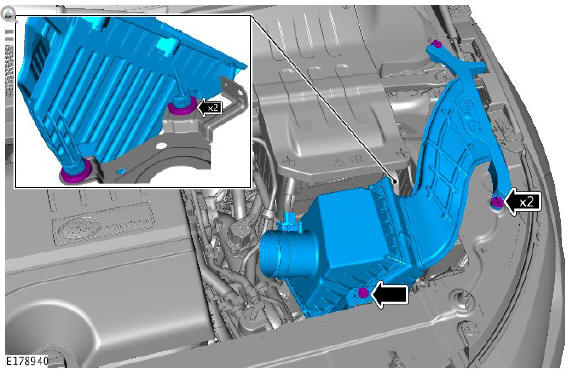

Torque: 3.5 Nm

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

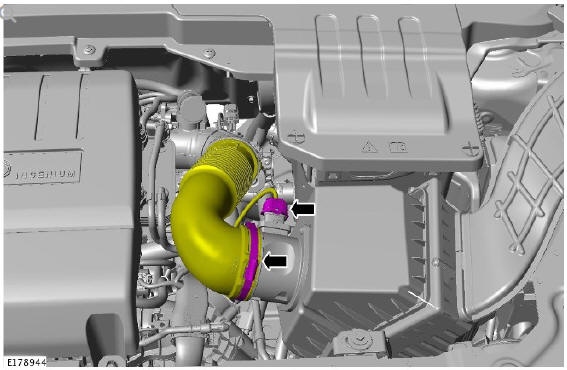

Torque: 10 Nm

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

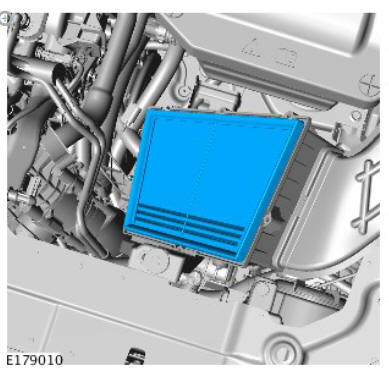

Torque: 2.5 Nm

Do not disassemble further if the component is removed for access only.

CAUTION:

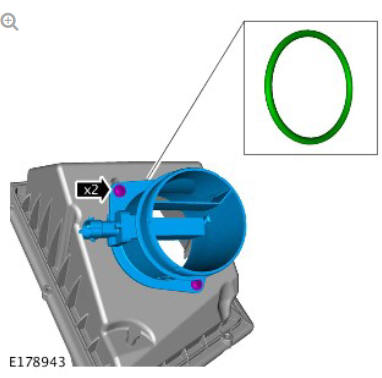

Inspect the O-ring seal, install a new component if damaged.

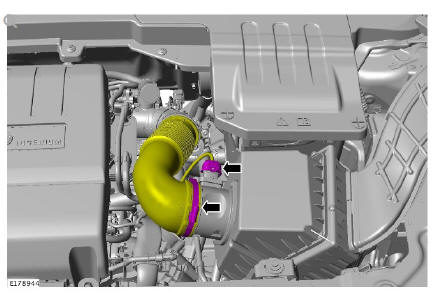

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

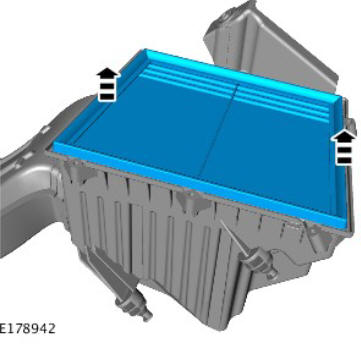

Torque: 2.5 Nm

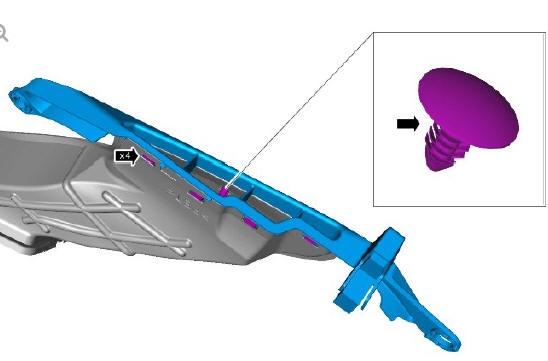

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

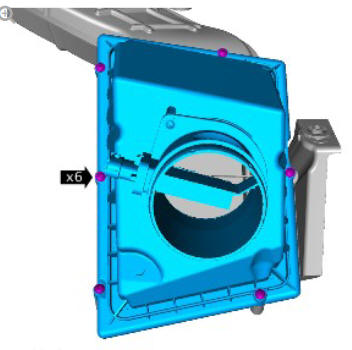

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

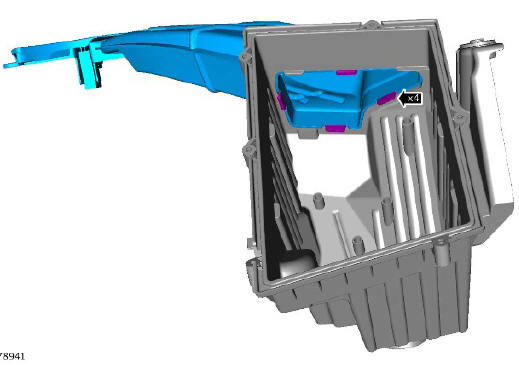

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner (G1877886)/ Removal and Installation

INSTALLATION

To install, reverse the removal procedure.

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner Element (G1877887) Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner Element (G1877887) Removal and Installation

Torque: 3.5 Nm

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner Element (G1877887) Removal and Installation

Torque: 2.5 Nm

Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Air Cleaner Element (G1877887) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
