Land Rover Discovery: Rear end Sheet Metal
Repairs Back
Panel Outer (G1770946)
- Removal
Removal
NOTE:
The back panel outer is installed in conjunction with:
- Rear bumper cover
- Rear bumper
- Rear bumper retaining rail
- Rear lamp assembly
- Quarter panel lower extension
- Loadspace trim panel

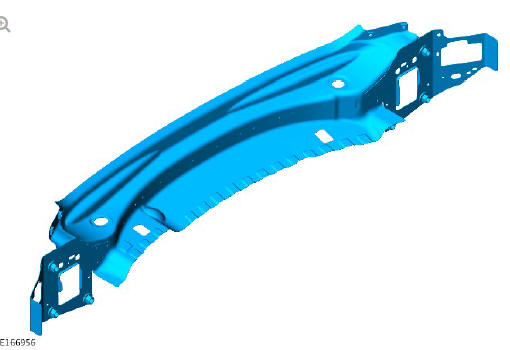

.93.jpg)
- The back panel outer is serviced as indicated.
- Before commencing this procedure make sure that you are aware of
all Health and Safety requirements.
For additional information, refer to: Health and Safety Precautions
(100-00, Description and Operation).
- For further information on the methods, tools and fixings used in
this procedure refer to the body repairs - general information
section.
NOTES:
- Any joints sealed as part of vehicle manufacture must be sealed as
part of the repair.
- Make sure a zinc rich primer is applied to any bare metal surfaces.
- For additional information, refer to: Rear Bumper Cover (501-19,
Removal and Installation).
- For additional information, refer to: Rear Bumper (501-19, Removal
and Installation).
- For additional information, refer to: Rear Bumper Retaining Rail
(501-30, Removal and Installation).
- For additional information, refer to: Rear Lamp Assembly (417-01,
Removal and Installation).
- For additional information, refer to: Quarter Panel Lower Extension
(501-30, Removal and Installation).
- For additional information, refer to: Loadspace Trim Panel (501-05,
Removal and Installation).
.94.jpg)

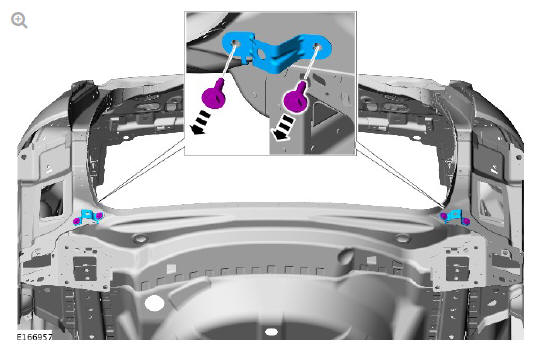

- Remove the liftgate mounting buffers as indicated.
.95.jpg)

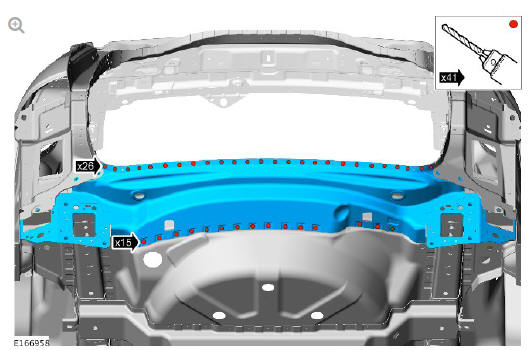

- Remove the spot welds as indicated.

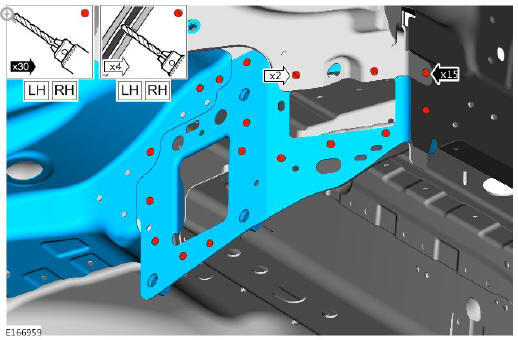

.96.jpg)
- Remove the spot welds as indicated.

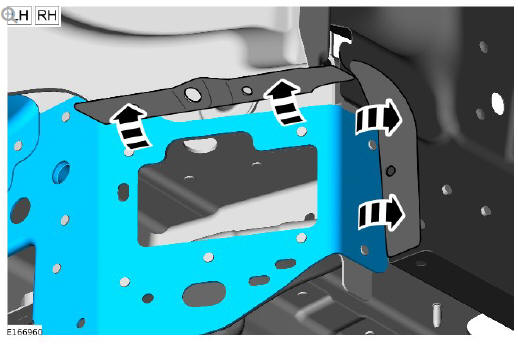

.97.jpg)
- Fold back the edges of the panels to reveal hidden spot welds as
indicated.

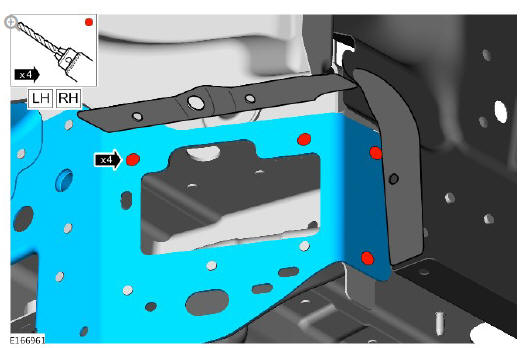

.98.jpg)
- Remove the spot welds as indicated.
.99.jpg)

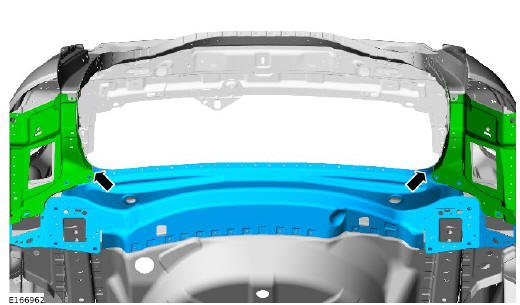

- Carefully build an expansion space between the rear lamp panel
outer and back panel outer as indicated.

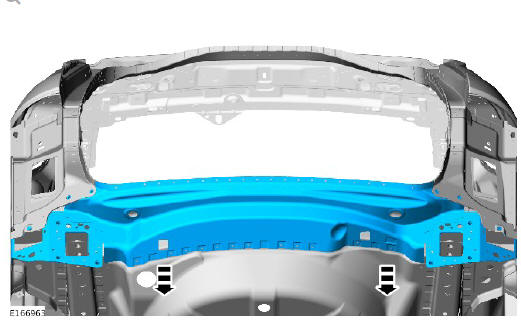

.1.jpg)
- Carefully separate the joints and pull down the back panel outer to
remove it as indicated.
