Land Rover Discovery: Intake Air Distribution and Filtering - Ingenium i4 2.0l Diesel Charge Air Cooler (G1875919) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Intake Air Distribution
and Filtering - Ingenium i4
2.0l Diesel Charge
Air Cooler (G1875919)
/ Removal and Installation
REMOVAL
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).

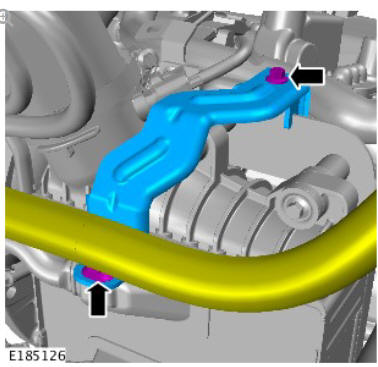

.jpg)
CAUTION:
Be prepared to collect escaping coolant.

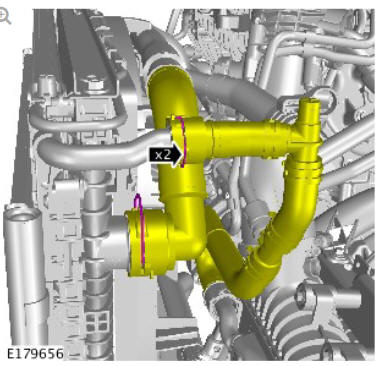

.jpg)
CAUTION:
Be prepared to collect escaping coolant

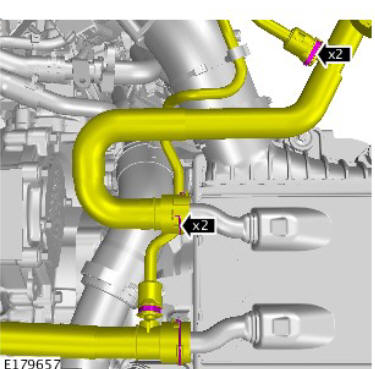

.jpg)
.jpg)
Torque: 7 Nm

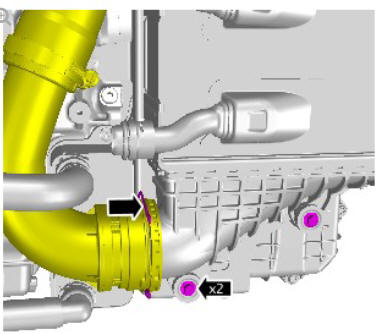

.jpg)

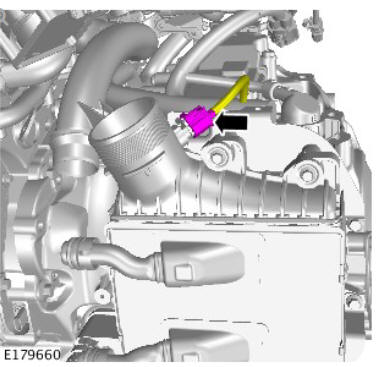

.jpg)

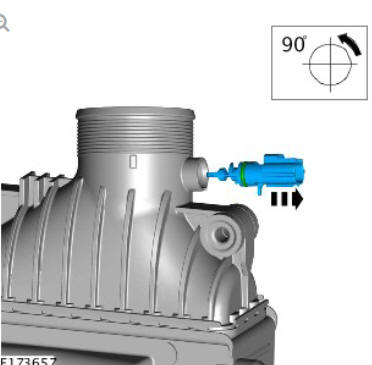

.jpg)
Torque: 7 Nm
CAUTION:
Inspect the seal. Replace if damaged.
NOTE:
Do not disassemble further if the component is removed for access only.

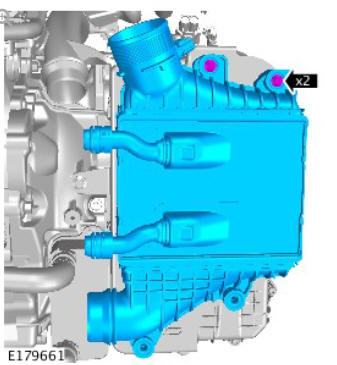

.jpg)
INSTALLATION
- To install reverse the removal procedure.
