Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Rear Bushing (G1781300) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Rear Bushing (G1781300) / Removal and Installation

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

REMOVAL

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle

Remove the rear differential.

Refer to: Differential Case (205-02 Rear Drive Axle/Differential - Vehicles With: Active Driveline, Removal and Installation).

Rear drive axle_differential - Vehicles with- Active driveline differential rear bushing (G1781300) removal and installation

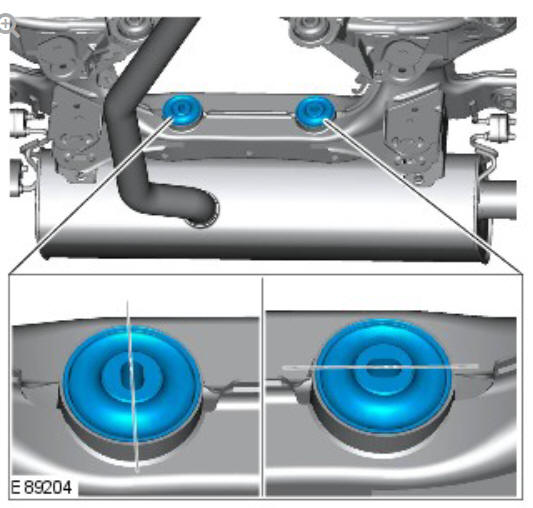

Take note of the fitted position of the rear bushings. The RH bushing slot is positioned vertically and the LH bushing slot is positioned horizontally.

CAUTION:

Note the fitted position of the component prior to removal.

Rear drive axle_differential - Vehicles with- Active driveline differential rear bushing (G1781300) removal and installation

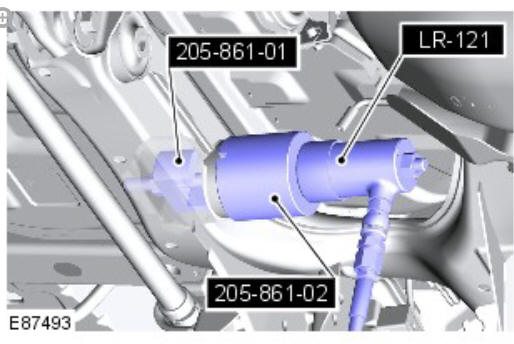

Using the special tool, remove the bushing.

Special Tool(s): 205-861-01, 205-861-02, LR-121

INSTALLATION

CAUTION:

Only use the specified special tool.

Rear drive axle_differential - Vehicles with- Active driveline differential rear bushing (G1781300) removal and installation

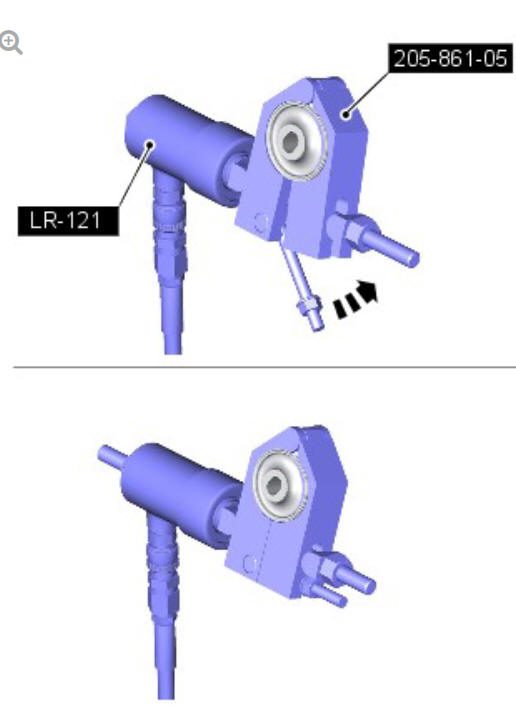

Using the special tool, compress the bushing.

Special Tool(s): 205-860-09, 205-861-05, LR-121

CAUTION:

Make sure the correct special tool is used to install the bushings to the correct depth.

NOTE:

Make sure that these components are installed to the noted removal position.

Rear drive axle_differential - Vehicles with- Active driveline differential rear bushing (G1781300) removal and installation

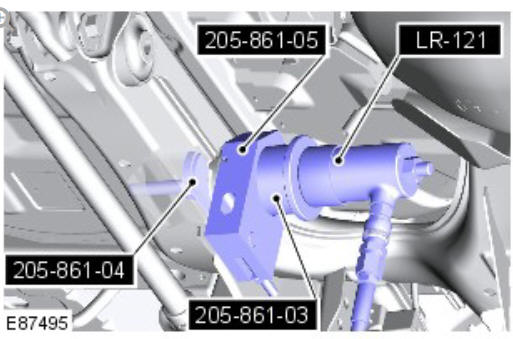

Using the special tool, install the bushing, making sure the slot on the RH bushing is positioned vertically and the slot on the LH bushing is positioned horizontally.

Special Tool(s): LR-121, 205-861-04, 205-861-03, 205-861-05

Install the rear differential.

Refer to: Differential Case (205-02 Rear Drive Axle/Differential - Vehicles With: Active Driveline, Removal and Installation).
