Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Support Insulator (G1781301) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Support Insulator (G1781301) / Removal and Installation

PART(S)

PART(S)

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

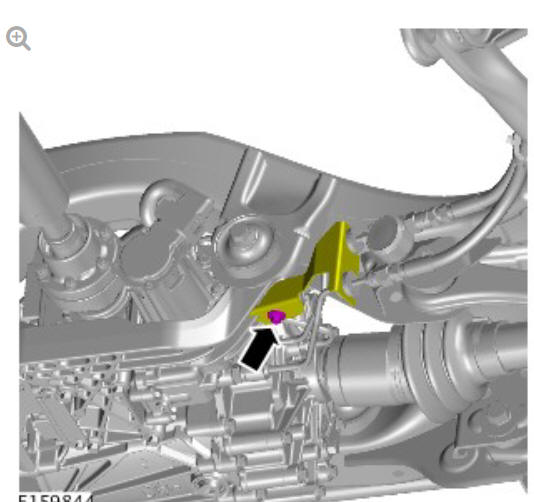

Rear drive axle_differential - Vehicles with- Active driveline differential support insulator (G1781301) removal and installation

Torque: 10 Nm

Rear drive axle_differential - Vehicles with- Active driveline differential support insulator (G1781301) removal and installation

Torque: 10 Nm

CAUTION:

Discard the bolts.

NOTE:

Using a suitable transmission jack support the differential case.

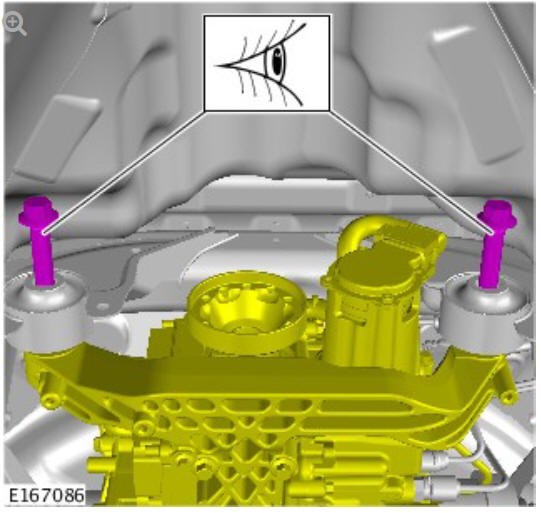

Rear drive axle_differential - Vehicles with- Active driveline differential support insulator (G1781301) removal and installation

Renew Part: Differential case front bolts.

Torque: 175 Nm

Rear drive axle_differential - Vehicles with- Active driveline differential support insulator (G1781301) removal and installation

Torque:

M8 29 Nm

M6 10 Nm

INSTALLATION

To install, reverse the removal procedure.
