Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Drive Pinion Flange (G1781296) - Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Drive Pinion Flange (G1781296) / Rear Drive Axle - Differential - Vehicles with- Active Driveline Drive Pinion Flange (G1781296) - Installation

Installation

CAUTION:

Make sure new bolts are installed.

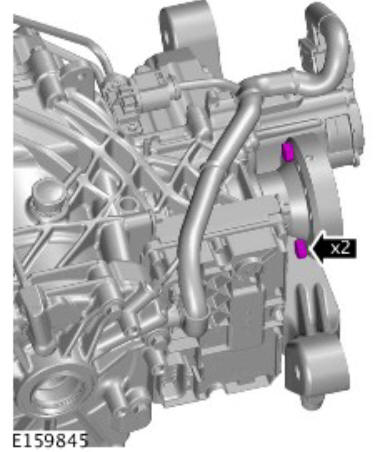

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Renew Part: Differential case front bolts.

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

Refer to: Fuel Tank (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

CAUTION:

A new O-ring seal is to be installed.

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

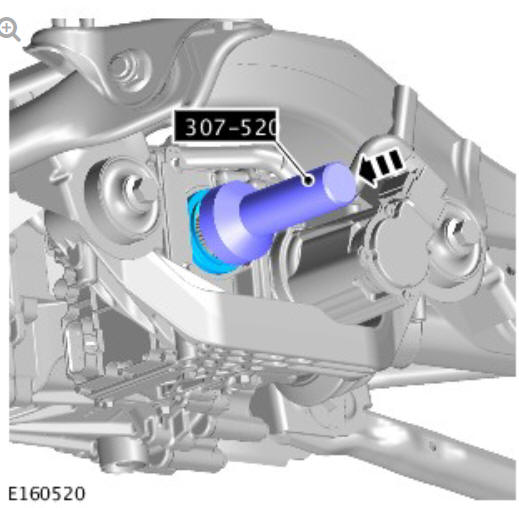

Using the special tool, install a new oil seal.

Special Tool(s): 307-520

Renew Part: Differential pinion seal.

Tap the seal until the head of the drift is against the rear differential housing.

NOTE:

Lubricate the oil seal.

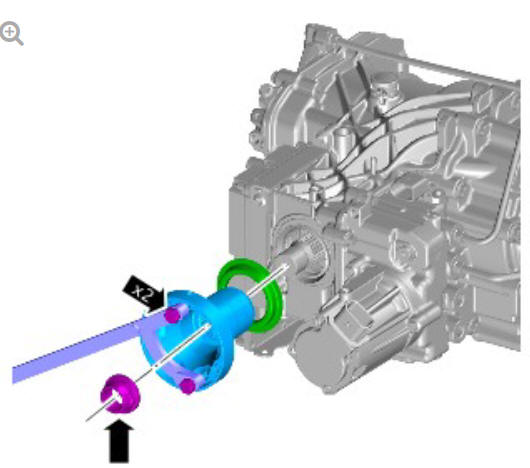

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

CAUTIONS:

  • Make sure the drive pinion flange scribed marks are aligned.
  • Make sure the mark on the drive pinion nut is never tightened short of the scribed mark on the drive pinion shaft.
  • Make sure the mark on the drive pinion nut is never tightened past the scribed mark on the drive pinion shaft.

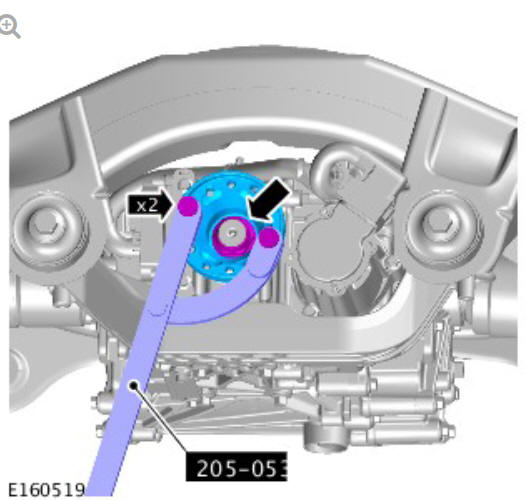

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Special Tool(s): 205-053

CAUTION:

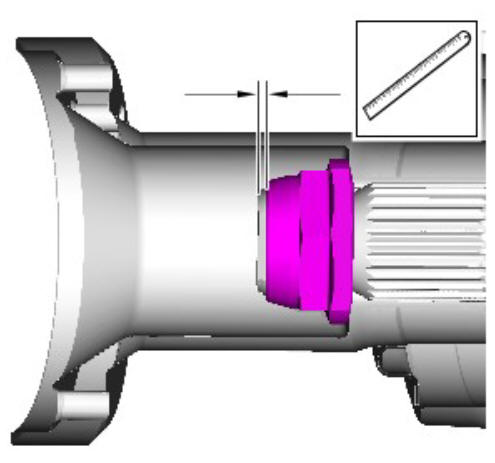

Make sure the nut is installed to the depth noted in the removal procedure.

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

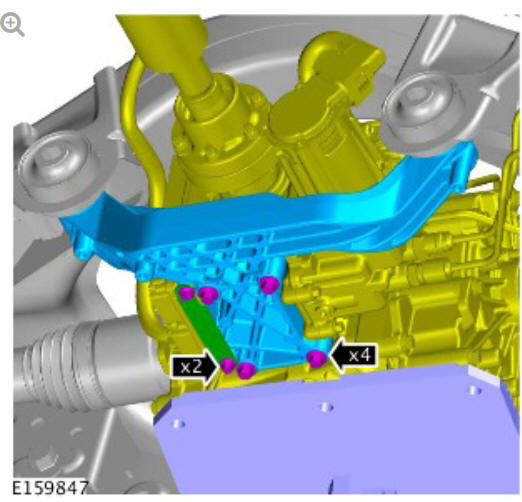

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Torque:

M8 29 Nm

M6 10 Nm

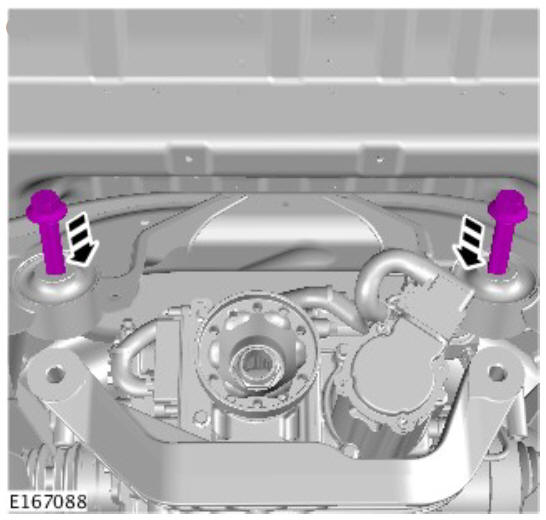

CAUTION:

Make sure new bolts are installed.

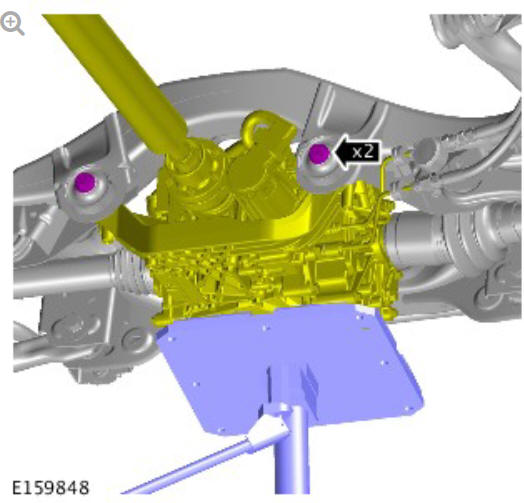

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Remove the transmission jack.

Torque: 175 Nm

NOTE:

If equipped

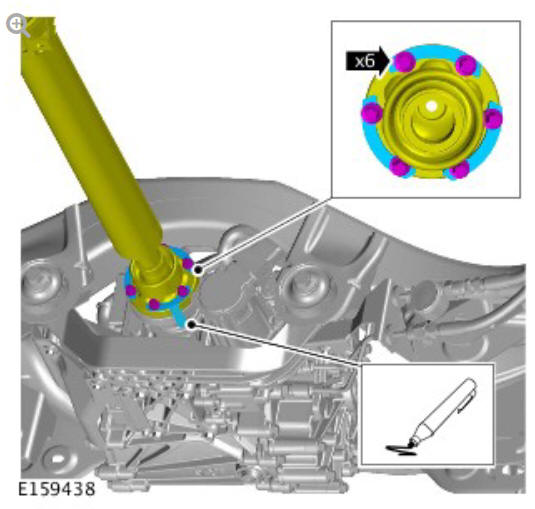

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

CAUTION:

The component must be aligned with the installation markings.

NOTES:

  • Make sure that new bolts are installed.
  • Tighten the retaining bolts working diagonally.

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Renew Part: Driveshaft to rear differential bolts.

Torque: 40 Nm

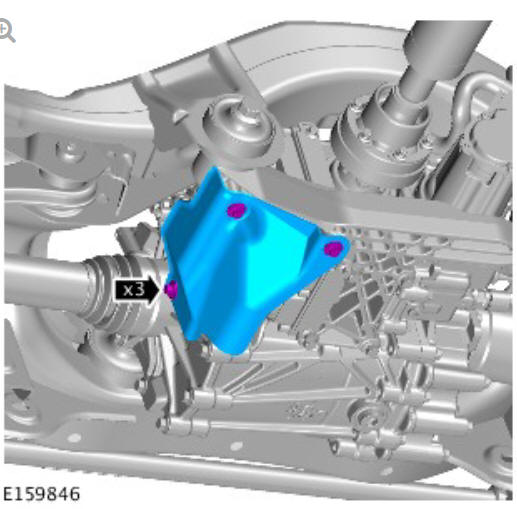

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

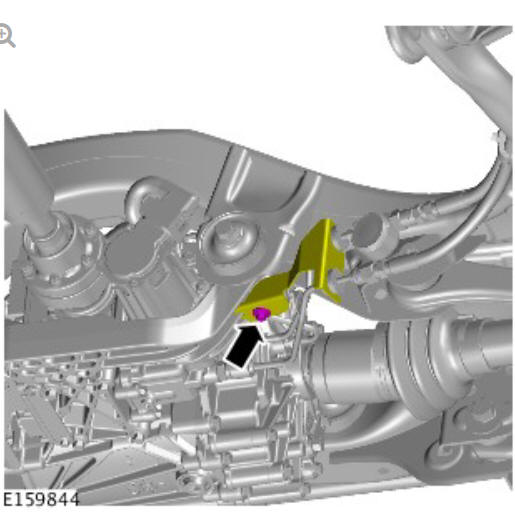

Torque: 10 Nm

Rear drive axle_differential - Vehicles with- Active driveline drive pinion flange (G1781296) - Installation

Torque: 10 Nm

Check and top up the differential case.
