Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Front Bushing (G1781299) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Front Bushing (G1781299) / Removal and Installation

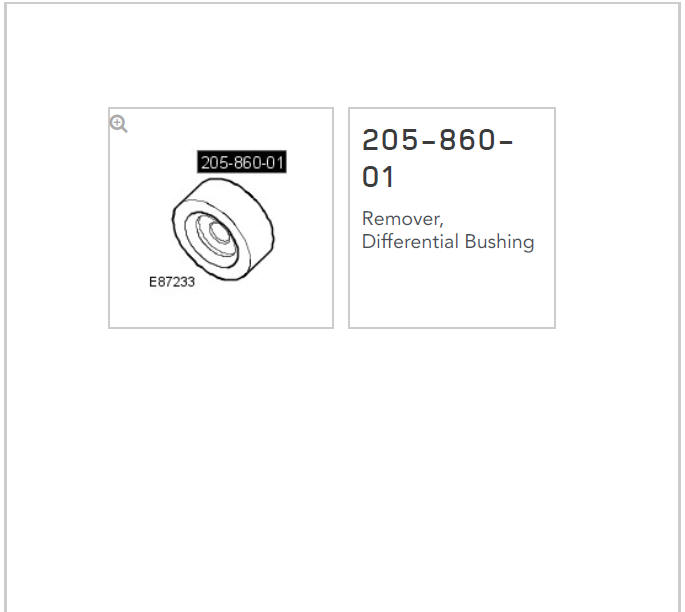

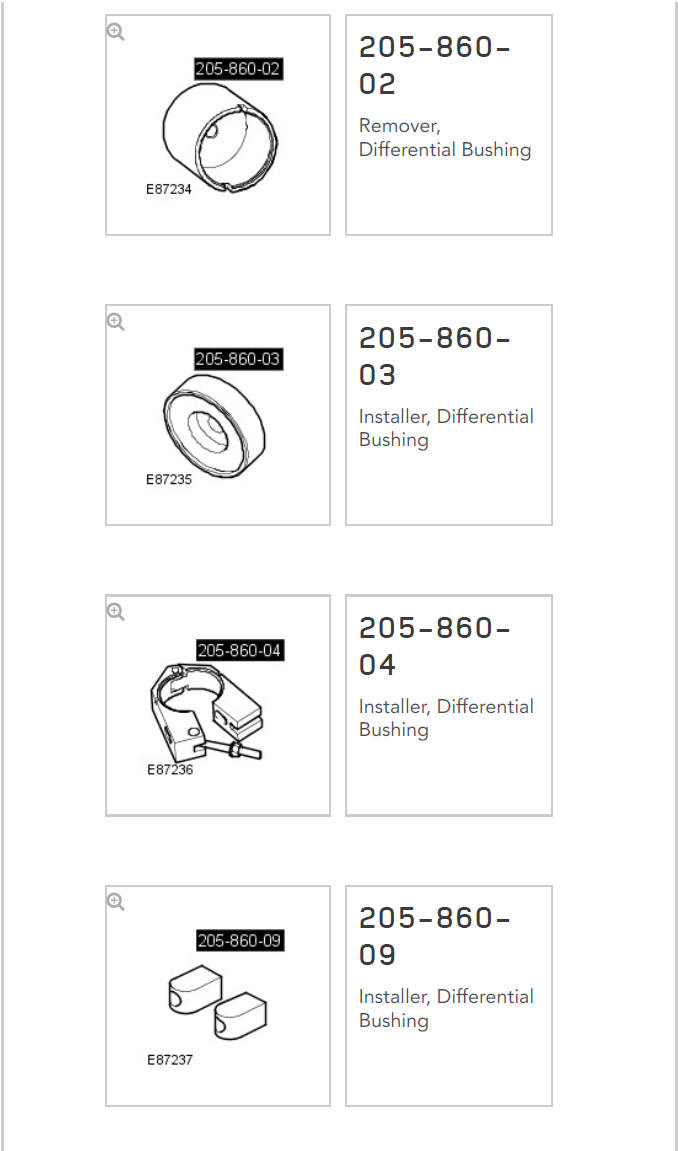

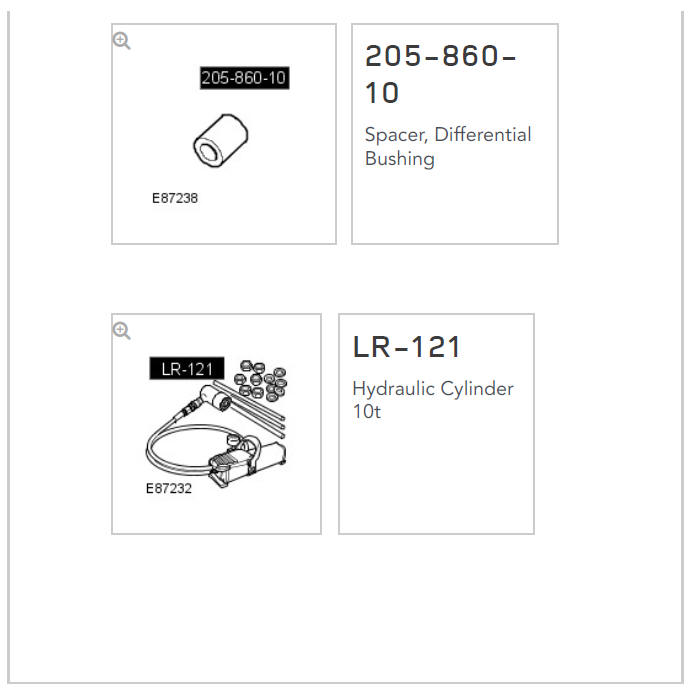

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

REMOVAL

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the rear differential.

Refer to: Differential Case (205-02 Rear Drive Axle/Differential - Vehicles With: Active Driveline, Removal and Installation).

CAUTIONS:

  • Mark the components to aid installation.
  • Note the fitted position of the component prior to removal.

Rear drive axle_differential - vehicles with- active driveline differential front bushing (G1781299) removal and installation

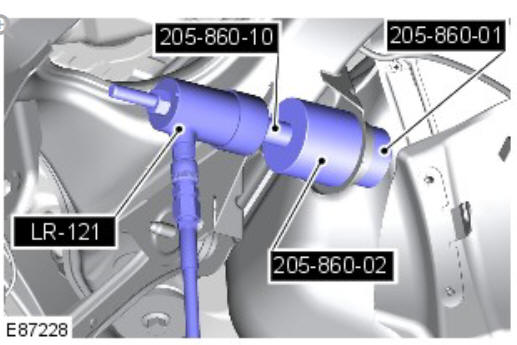

Using the special tools, remove the bushing.

Special Tool(s): 205-860-01, 205-860-02, 205-860-10, LR-121

INSTALLATION

Rear drive axle_differential - vehicles with- active driveline differential front bushing (G1781299) removal and installation

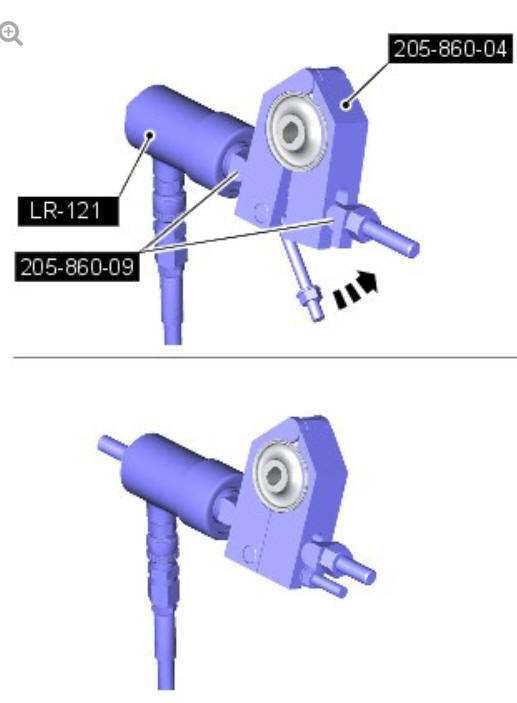

Using the special tool, compress the bushing.

Special Tool(s): 205-860-09, 205-860-04, LR-121

CAUTION:

Make sure the correct special tool is used to install the bushings to the correct depth.

NOTE:

Make sure that these components are installed to the noted removal position.

Rear drive axle_differential - vehicles with- active driveline differential front bushing (G1781299) removal and installation

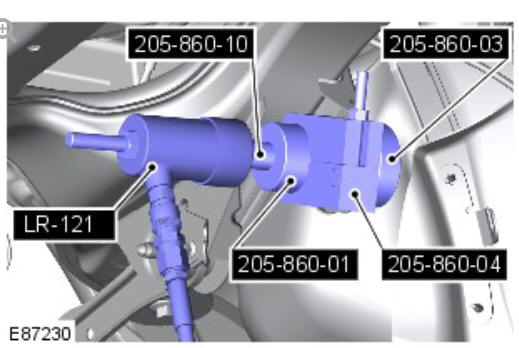

Using the special tool, install the bushing.

Special Tool(s): 205-860-10, 205-860-01, 205-860-04, 205-860-03, LR-121

Install the rear differential.

Refer to: Differential Case (205-02 Rear Drive Axle/Differential - Vehicles With: Active Driveline, Removal and Installation).
