Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Draining and Filling (G1671288) / General Procedures

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Differential Draining and Filling (G1671288) / General Procedures

DRAINING

CAUTION:

Make sure the vehicle is on a flat level surface.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

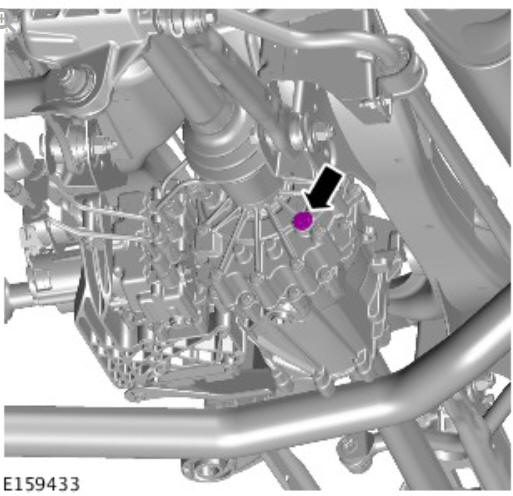

Rear drive axle_differential - vehicles with- active driveline differential draining and filling (G1671288) general procedures

CAUTION:

Be prepared to collect escaping fluids.

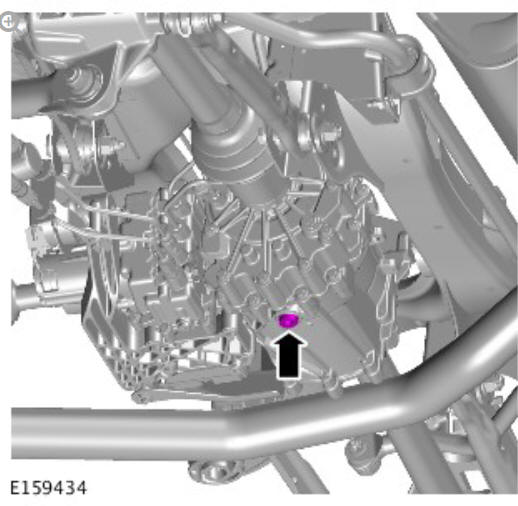

Rear drive axle_differential - vehicles with- active driveline differential draining and filling (G1671288) general procedures

Drain the differential fluid.

FILLING

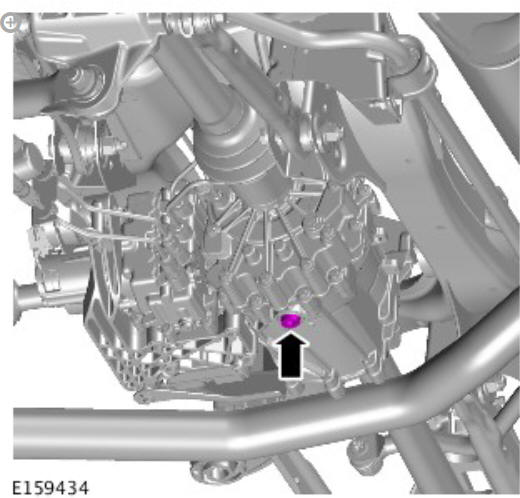

Rear drive axle_differential - vehicles with- active driveline differential draining and filling (G1671288) general procedures

Torque: 34 Nm

CAUTION:

Make sure that the correct specification of fluid is used.

Fill the differential case with fluid.

Refer to: Specifications (205-02B, Specifications).

Rear drive axle_differential - vehicles with- active driveline differential draining and filling (G1671288) general procedures

Torque: 34 Nm
