Land Rover Discovery: Rear Suspension Lower ARM (G1774719) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Rear Suspension Lower ARM (G1774719) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Rear Subframe - FWD (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

NOTE:

Some components shown removed for clarity.

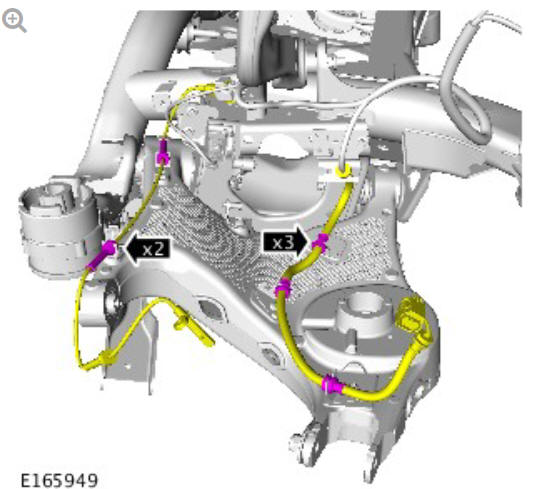

Rear suspension lower ARM (G1774719) Removal and installation

CAUTIONS:

  • Discard the nut and bolt.
  • Nuts and bolts must be tightened with vehicle at normal ride height.

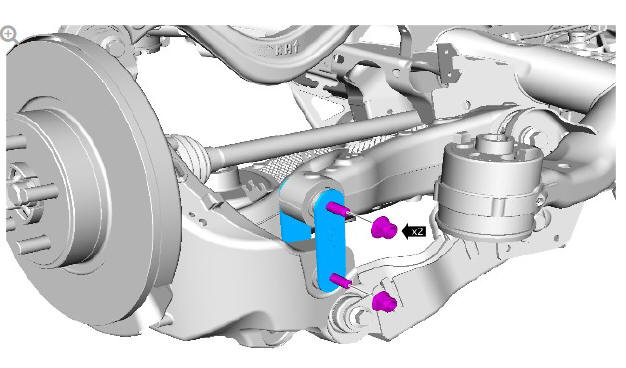

Rear suspension lower ARM (G1774719) Removal and installation

Torque:

Stage 1: 40 Nm

Stage 2: 60º

CAUTIONS:

  • Discard the nut and bolt.
  • Nuts and bolts must be tightened with vehicle at normal ride height.

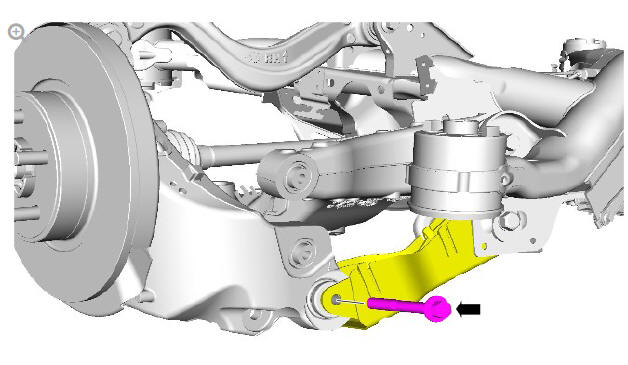

Rear suspension lower ARM (G1774719) Removal and installation

Torque:

Stage 1: 40 Nm

Stage 2: 180º

CAUTIONS:

  • Discard the nut and bolt.
  • Nuts and bolts must be tightened with vehicle at normal ride height.

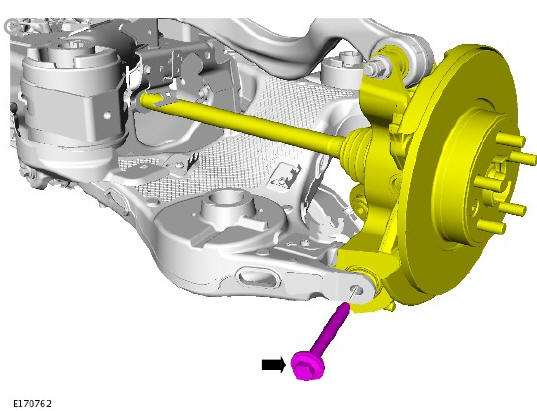

Rear suspension lower ARM (G1774719) Removal and installation

Torque:

Stage 1: 40 Nm

Stage 2: 180º

CAUTIONS:

  • Discard the nuts and bolts.
  • Nuts and bolts must be tightened with vehicle at normal ride height.

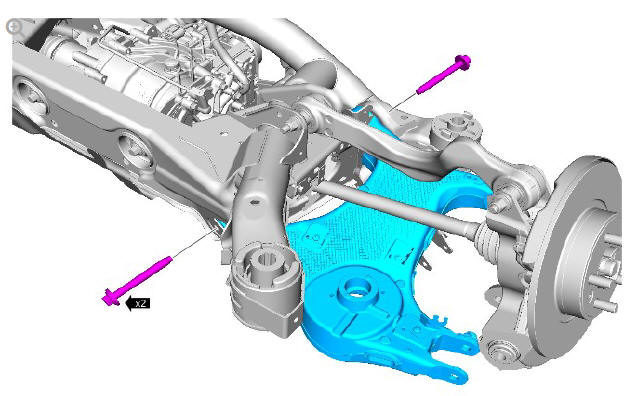

Rear suspension lower ARM (G1774719) Removal and installation

Torque:

Stage 1: 70 Nm

Stage 2: 240º

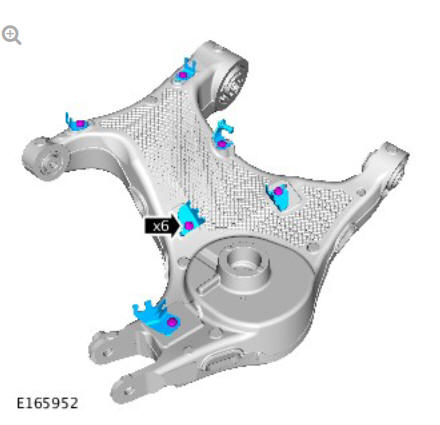

Rear suspension lower ARM (G1774719) Removal and installation

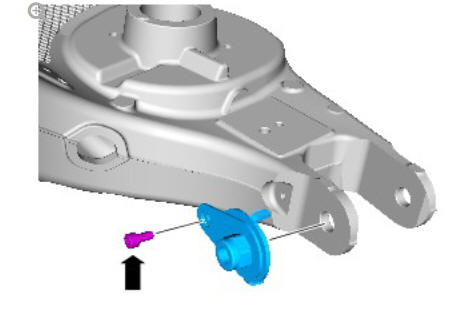

Rear suspension lower ARM (G1774719) Removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Using only four wheel alignment equipment approved by Land Rover, check and adjust the wheel alignment.

    Refer to: Four Wheel Alignment (204-00 Suspension System - General Information, General Procedures).
