Land Rover Discovery: Seats - Vehicles With- Climate Controlled Seats - Pinpoint Tests

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Seats - Vehicles With- Climate Controlled Seats / Seats - Vehicles With- Climate Controlled Seats - Pinpoint Tests

WARNING:

Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual

NOTES:

  • The climate controlled seat's (heat and cool) functions will only operate when the vehicle's engine is running
  • If a fault is identified and repaired, check for correct operation of the driver and front-passenger climate controlled seat (heat and cool) functions

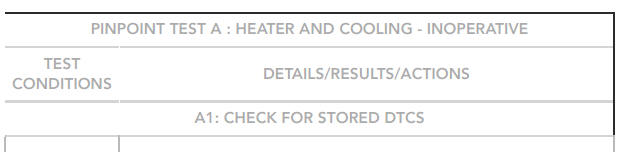

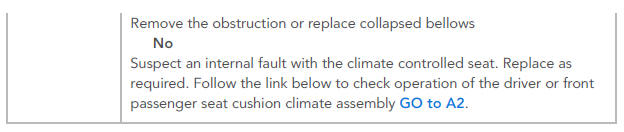

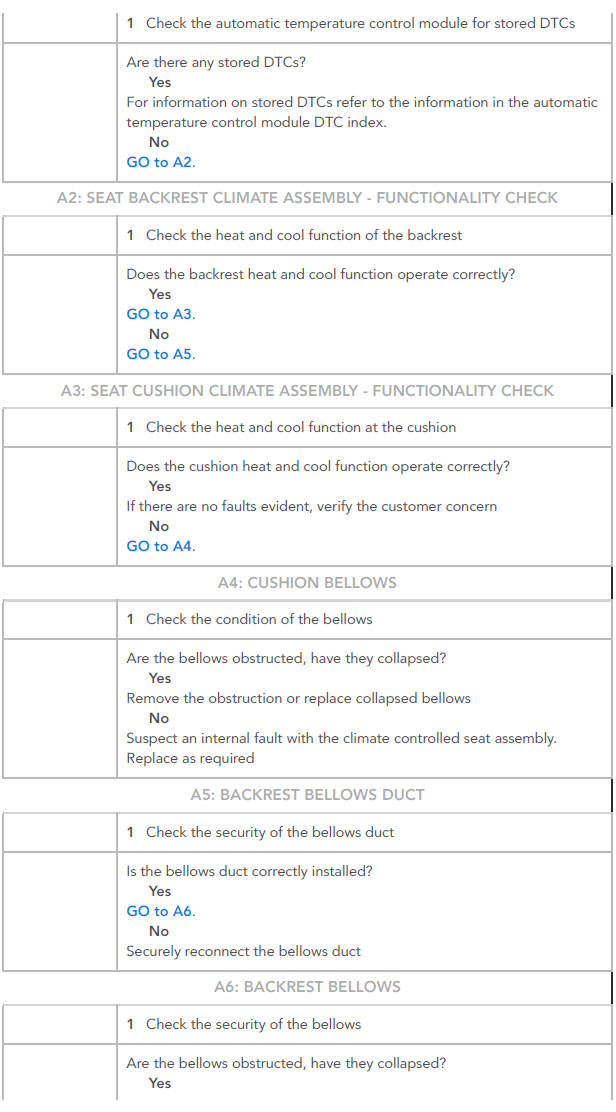

Pinpoint tests

Pinpoint tests

Pinpoint tests

WARNING:

Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual

NOTES:

  • The climate controlled seat's (heat and cool) functions will only operate when the vehicle's engine is running
  • If a fault is identified and repaired, check for correct operation of the driver and front-passenger climate controlled seat (heat and cool) functions

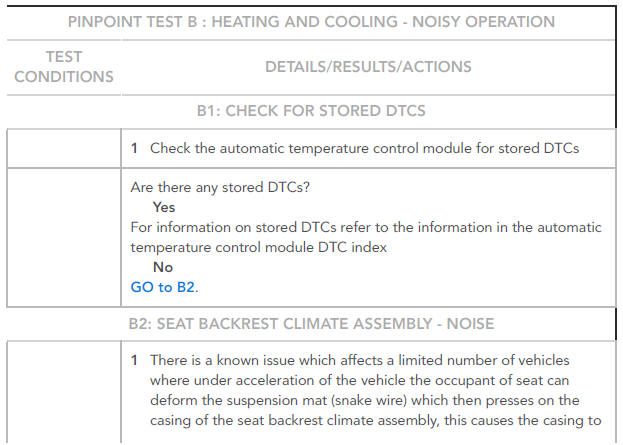

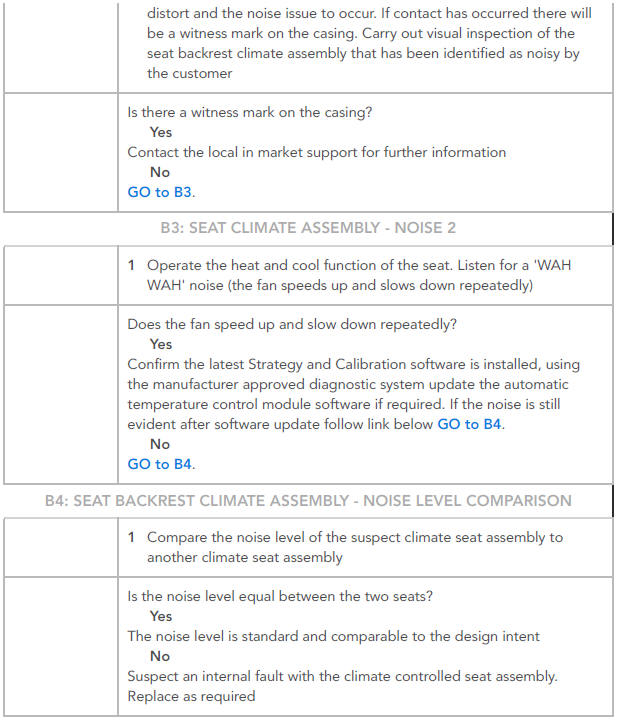

Pinpoint tests

Pinpoint tests

WARNING:

Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual

NOTES:

  • The climate controlled seat's (heat and cool) functions will only operate when the vehicle's engine is running
  • If a fault is identified and repaired, check for correct operation of the driver and front-passenger climate controlled seat (heat and cool) functions

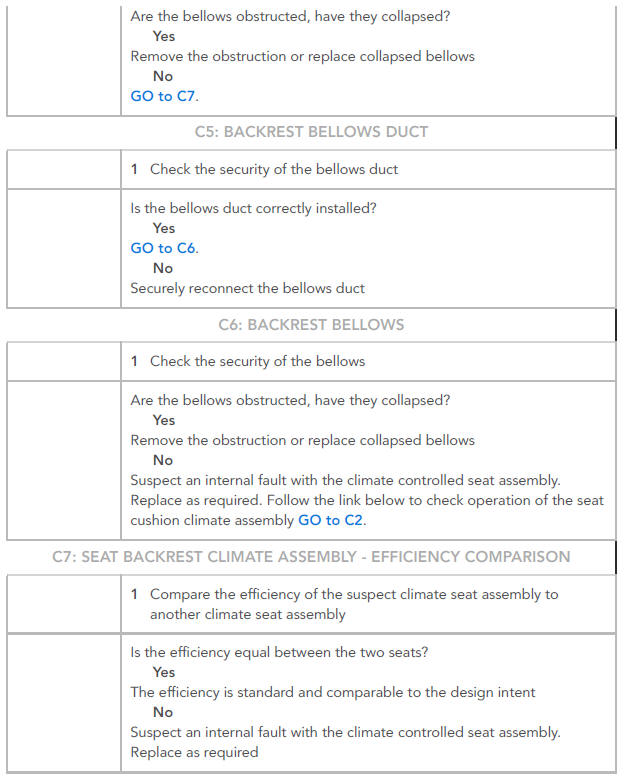

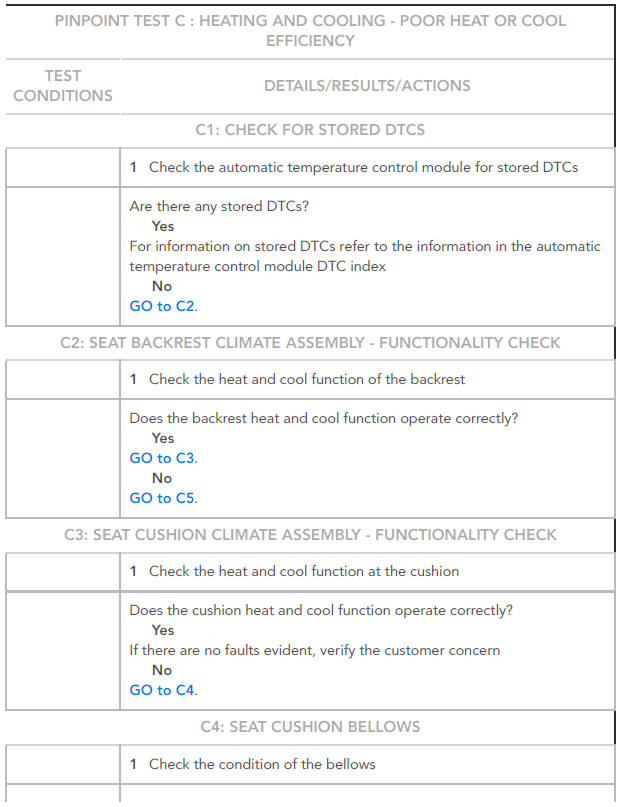

Pinpoint tests

Pinpoint tests

WARNING:

Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual

NOTES:

  • The climate controlled seat's (heat and cool) functions will only operate when the vehicle's engine is running
  • If a fault is identified and repaired, check for correct operation of the driver and front-passenger climate controlled seat (heat and cool) functions

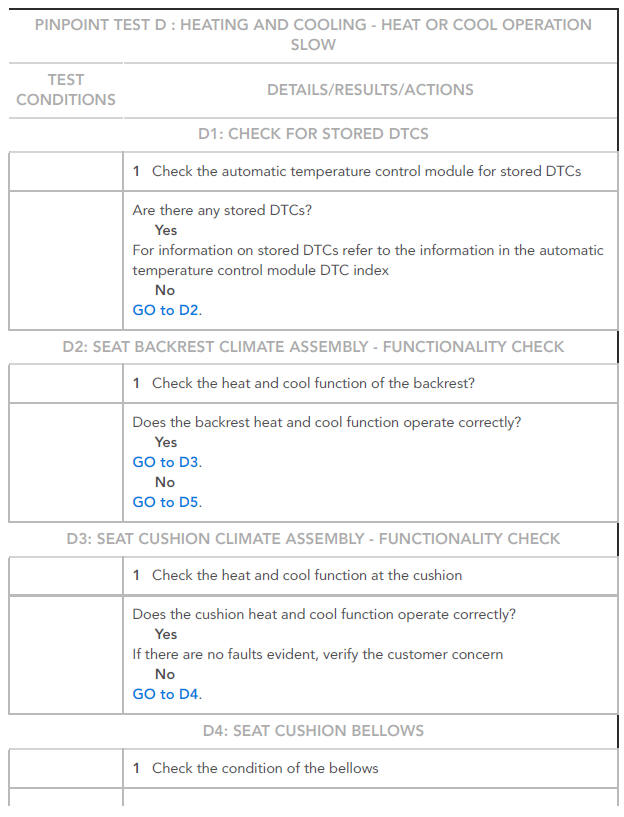

Pinpoint tests

Pinpoint tests

WARNING:

Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual

NOTES:

  • The climate controlled seat's (heat and cool) functions will only operate when the vehicle's engine is running
  • If a fault is identified and repaired, check for correct operation of the driver and front-passenger climate controlled seat (heat and cool) functions

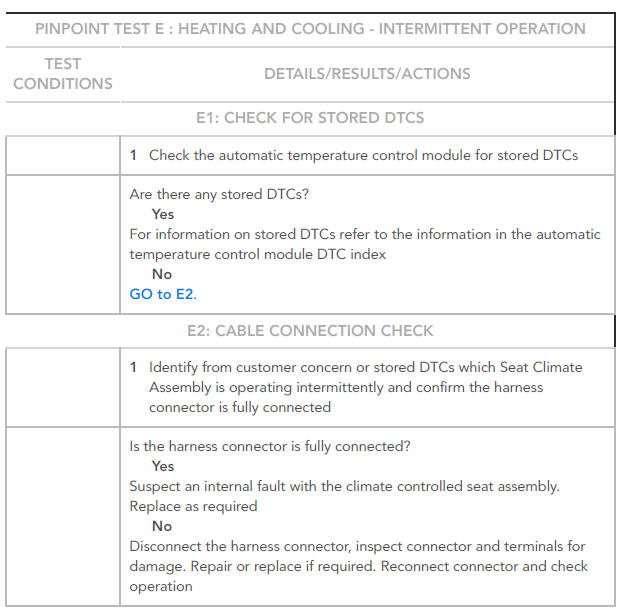

Pinpoint tests

DTC INDEX

For a complete list of all diagnostic trouble codes that could be logged on this vehicle, please refer to Section 100-00. REFER to: (100-00 General Information)

Diagnostic Trouble Code Index - DTC: Driver/Passenger Seat Module (DSM/PSM) (Description and Operation), Diagnostic Trouble Code Index - DTC: Automatic Temperature Control Module (ATCM) (Description and Operation).
