Land Rover Discovery: Third Row Seat Backrest Cover (G1808263) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Third Row Seat Backrest Cover (G1808263) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

Refer to: Third Row Seat (501-10, Removal and Installation).

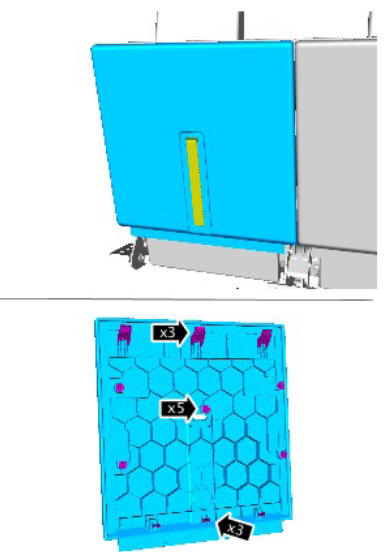

Third row seat backrest cover (G1808263) removal and installation

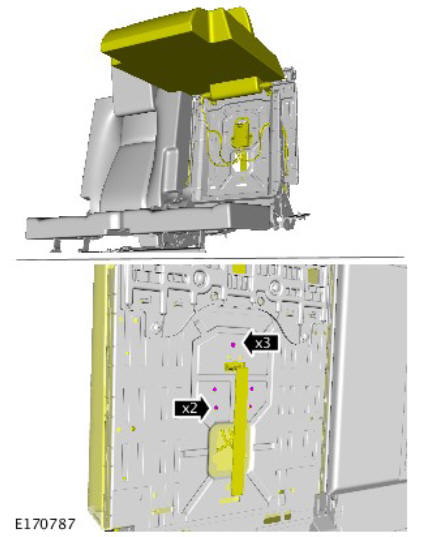

Third row seat backrest cover (G1808263) removal and installation

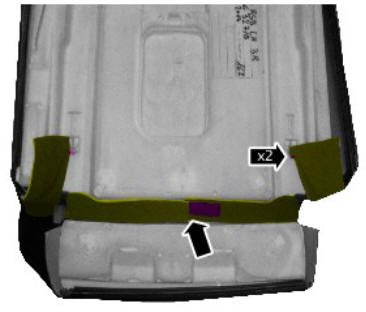

Third row seat backrest cover (G1808263) removal and installation

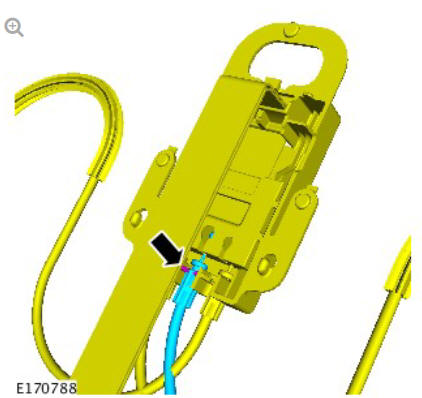

Third row seat backrest cover (G1808263) removal and installation

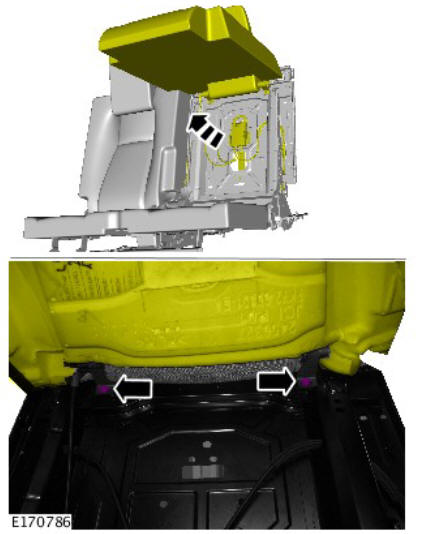

Third row seat backrest cover (G1808263) removal and installation

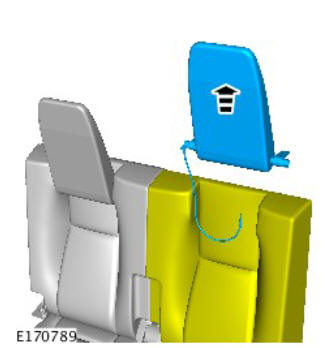

Third row seat backrest cover (G1808263) removal and installation

Third row seat backrest cover (G1808263) removal and installation

Third row seat backrest cover (G1808263) removal and installation

Third row seat backrest cover (G1808263) removal and installation

Third row seat backrest cover (G1808263) removal and installation

INSTALLATION

NOTES:

  • Make sure that new hog rings are installed.

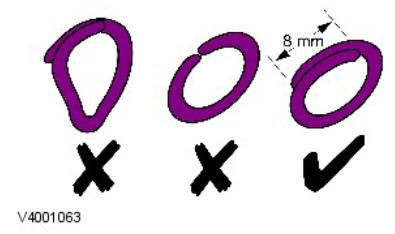

  • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Third row seat backrest cover (G1808263) removal and installation

NOTE:

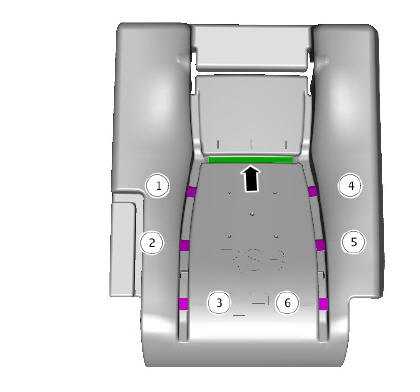

Make sure that the hogrings are installed in the sequence shown.

Third row seat backrest cover (G1808263) removal and installation

To install, reverse the removal procedure.
