Land Rover Discovery: Third Row Seat Head Restraint (G1808277) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Third Row Seat Head Restraint (G1808277) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Third Row Seat (501-10, Removal and Installation).

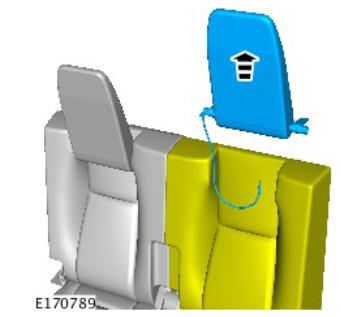

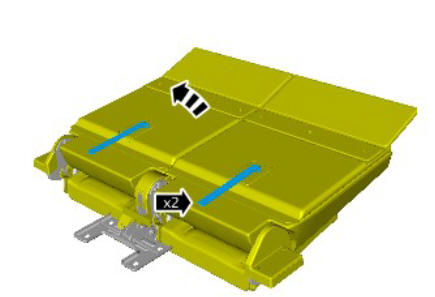

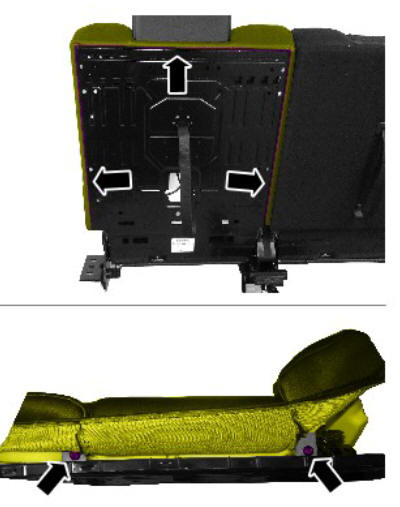

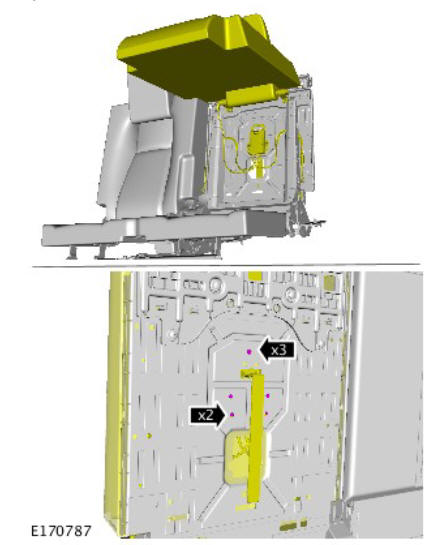

Third row seat head restraint (G1808277) removal and installation

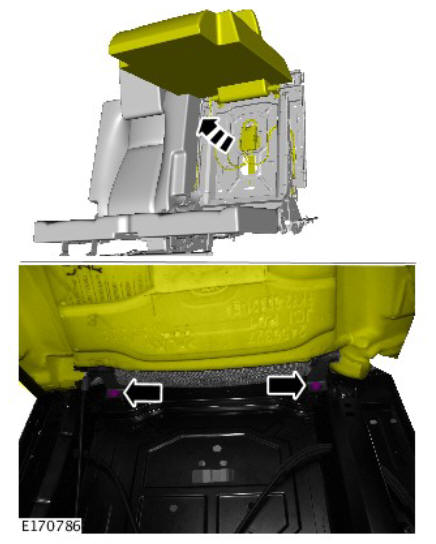

Third row seat head restraint (G1808277) removal and installation

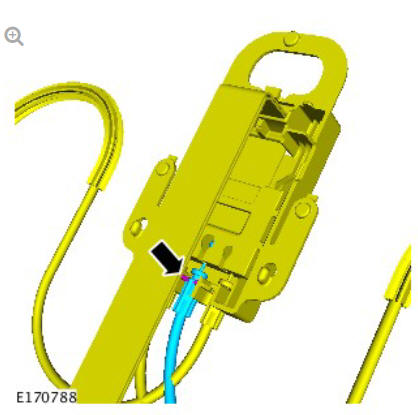

Third row seat head restraint (G1808277) removal and installation

Third row seat head restraint (G1808277) removal and installation

Third row seat head restraint (G1808277) removal and installation

Third row seat head restraint (G1808277) removal and installation

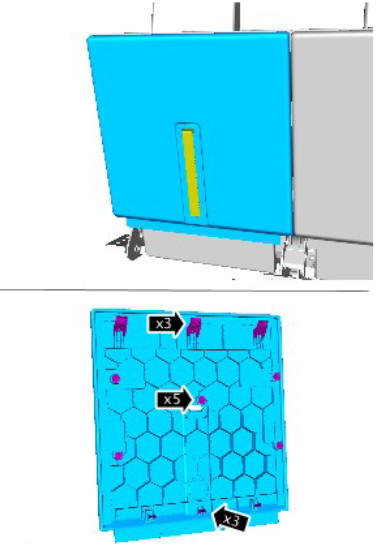

Third row seat head restraint (G1808277) removal and installation

INSTALLATION

To install, reverse the removal procedure.
