Land Rover Discovery: Side Panel Sheet
Metal Repairs
Rocker Panel (G1770907)
- Installation
- Dress the flanges where necessary.
- Offer up the new rocker panel and clamp into position. Check
alignment if correct, proceed to next step, if not, rectify and
recheck before proceeding.

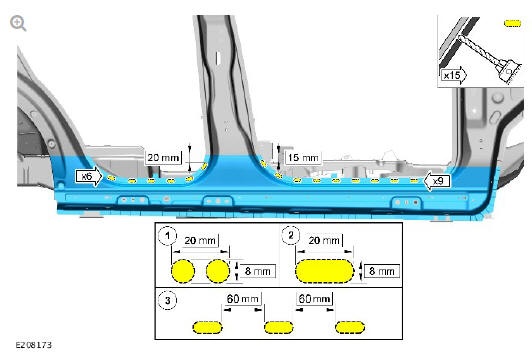

- Drill holes in new rocker panel where the Metal Inert Gas (MIG)
plug welds are to be installed as indicated.

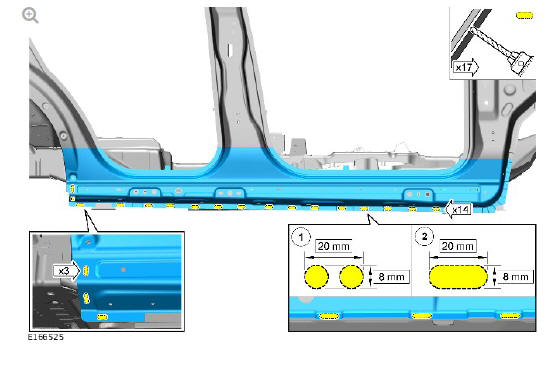

- Cut slots in the new rocker panel where the MIG braze slot welds
are to be installed as indicated.
- Cut slots in the new rocker panel where the MIG braze slot welds
are to be installed as indicated.
- Remove the new rocker panel.
- Deburr the drilled holes.
- Clean and prepare the old and new panel joint surfaces including
the Noise, Vibration and Harshness (NVH) components.
- Apply a 5 mm bead of Land Rover recommended sealer to the NVH
components as indicated.
- Offer up the new rocker panel and clamp into position. Check
alignment if correct, proceed to next step, if not, rectify and
recheck before proceeding.

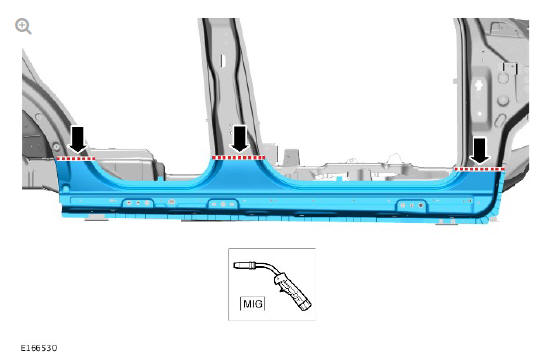

- Tack MIG weld the A pillar butt joint.
- Tack MIG weld the B pillar butt joint.
- Tack MIG weld the quarter panel butt joint.

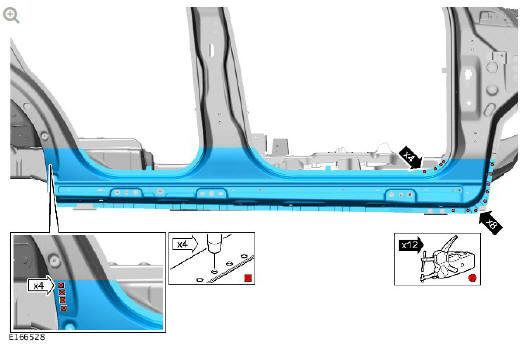

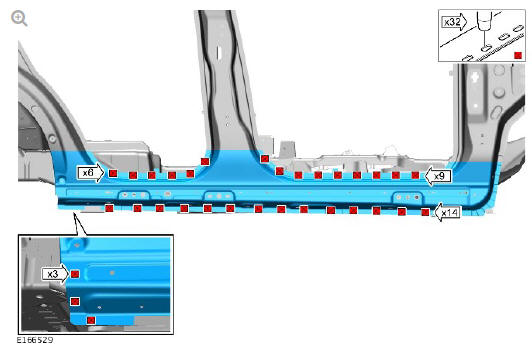

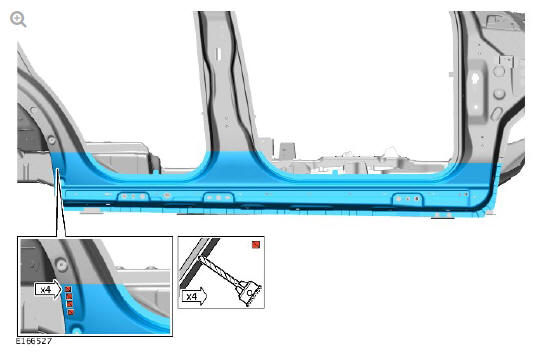

- Install the spot and MIG plug welds as indicated.

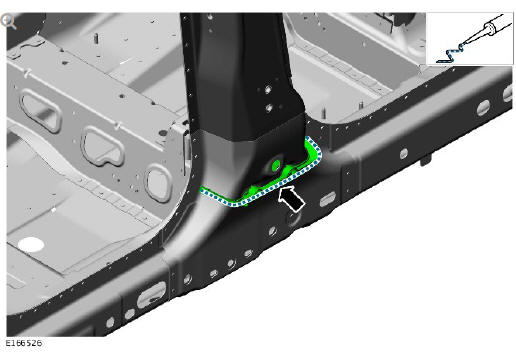

- Install the MIG braze slot welds as indicated.
- MIG weld the butt joints as indicated.
- Dress all welds.
- Install the front door lower door hinge and tighten the bolts to 30
Nm.
- Install the rear door lower door hinge and tighten the bolts to 30
Nm.
- Make sure that any open or exposed panel joints are correctly
sealed.
- Make sure corrosion protection is applied to all areas affected by
repair.
- The installation of associated panels and components is the reversal
of removal procedure.
