Land Rover Discovery (2009–2016) Service Manual / Electrical / Information and Entertainment System / Voice Control

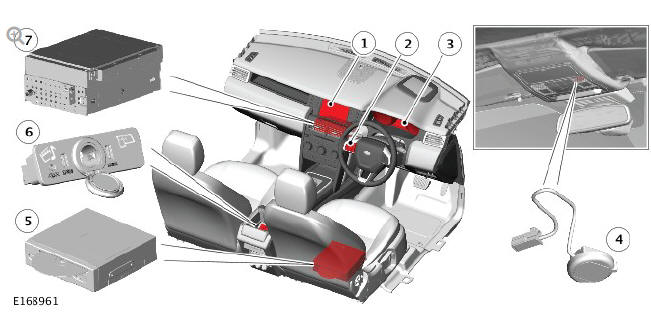

COMPONENT LOCATION - INCONTROL TOUCH AUDIO SYSTEMS

COMPONENT LOCATION - INCONTROL TOUCH AUDIO SYSTEMS

  1. Touch Screen (TS)
  2. Left steering wheel switchpack
  3. Instrument Cluster (IC)
  4. Microphone
  5. Portable audio interface panel
  6. Audio Head Unit (AHU)

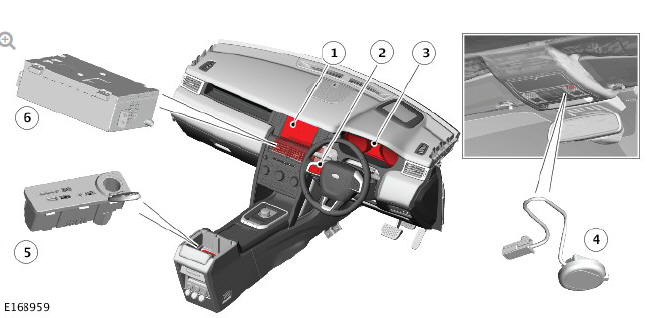

COMPONENT LOCATION - INCONTROL TOUCH PLUS AUDIO SYSTEMS

COMPONENT LOCATION - INCONTROL TOUCH PLUS AUDIO SYSTEMS

  1. Touch Screen (TS)
  2. Left steering wheel switchpack
  3. Instrument Cluster (IC)
  4. Microphone
  5. Portable audio interface panel
  6. Integrated Audio Module (IAM)

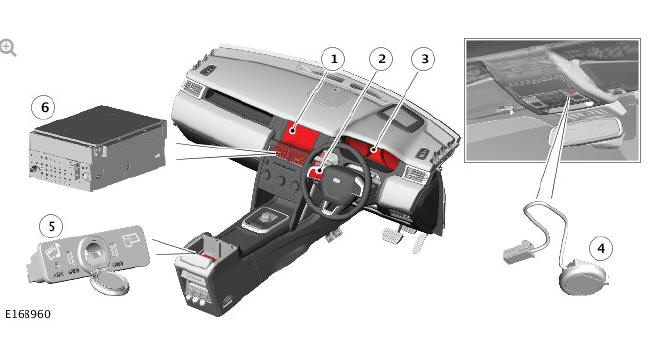

COMPONENT LOCATION - INCONTROL TOUCH PLUS - JAPAN

COMPONENT LOCATION - INCONTROL TOUCH PLUS - JAPAN

  1. Touch Screen (TS)
  2. Left steering wheel switchpack
  3. Instrument Cluster (IC)
  4. Microphone
  5. Navigation Control Module (NCM)
  6. Portable audio interface panel
  7. Integrated Audio Module (IAM)
next pageVideo System - OperationOverview - Incontrol Touch Audio Systemsnext page

READ NEXT:

 Overview - Incontrol Touch Audio Systems

NOTE: Navigation through the voice control system is not available in Asia markets. The voice control system provides the driver with the option of voice control for a range of supported functions.

 Description - Incontrol Touch Audio Systems

The Audio Head Unit (AHU) is located in the center of the instrument panel, below the Touch Screen (TS). Level C AHUs support voice control and navigation. Level B does not support voice control or

 Operation - Incontrol Touch Audio Systems

The voice control system provides the driver with the option of voice control for a range of supported functions. The following systems can be controlled by voice control: Bluetooth Telephone syst
